Schneider Electric CAD32 Series

60 variants · Schneider Electric

About the Schneider Electric CAD32 Series

The Schneider Electric CAD32 Series series groups 60 related part numbers, each listed with full specifications, a datasheet where available, and an RFQ option. The listed variants share a common application of Control circuit, IP rating of IP2X and main product or component type of Control relay. Variants differ by depth, height and utilization category, so you can match the exact depth your application requires using the selection guide below.

Select a variant by

Depth
3.3 in (84 mm) · 3.7 in (93 mm)
Height
3.03 in (77 mm) · 3.9 in (99 mm)
Utilization category
AC-14 AC-15 DC-13 · AC-14 DC-13 AC-15 · AC-15 DC-13 AC-14 · DC-13 AC-14 AC-15 · DC-13 AC-15 AC-14

Shared specifications

Application
Control circuit
IP rating
IP2X
Main product or component type
Control relay
Operating temperature
-40...140 °F (-40...60 °C) 140...158 °F (60...70 °C) with derating
Storage temperature
-76...176 °F (-60...80 °C)
Temp operating max
60 °C
Temp operating min
-40 °C
Temp storage max
80 °C
Temp storage min
-60 °C
Width
1.8 in (45 mm)

Variant comparison

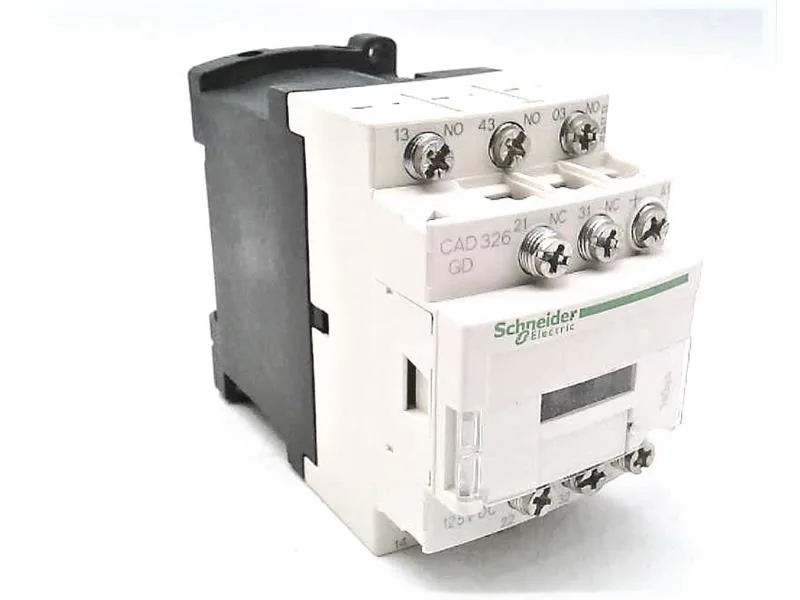

ParameterCAD326MDCAD326GDCAD326SDCAD32EDCAD32FDCAD32GD
Depth3.7 in (93 mm)3.7 in (93 mm)3.7 in (93 mm)3.7 in (93 mm)3.7 in (93 mm)3.7 in (93 mm)
Height3.03 in (77 mm)3.03 in (77 mm)3.03 in (77 mm)3.03 in (77 mm)3.03 in (77 mm)3.03 in (77 mm)
Utilization categoryDC-13 AC-15 AC-14AC-14 AC-15 DC-13DC-13 AC-14 AC-15DC-13 AC-14 AC-15AC-15 DC-13 AC-14DC-13 AC-14 AC-15

Request a quote on any Schneider Electric CAD32 Series part number and we confirm price, availability and lead time per line — including end-of-life and allocation-constrained variants.

All variants
