The CAD326MD is a TeSys Deca control relay from Schneider Electric, configured with 3 normally open and 2 normally closed contacts, rated for control circuits up to 690 V with a 220 V DC standard coil. It is designed for industrial control applications requiring reliable switching of DC-13, AC-15, and AC-14 loads, such as solenoids and contactor coils. Mechanical robustness is confirmed with shock ratings of 10 Gn for open contacts and 15 Gn for closed contacts per IEC 60068-2-27, and vibration resistance from 2 to 4 Gn across 5-300 Hz, making it suitable for equipment subject to mechanical stress. The front face is rated IP2X per VDE 0106 for finger protection, and the unit operates in ambient temperatures from -40 to 70 °C with derating above 60 °C. Standards compliance includes EN/IEC 60947-5-1, UL 60947-5-1, CSA C22.2 No 60947-5-1, and JIS C8201-5-1, ensuring acceptance across global installations. Dimensions are 1.8 in (45 mm) wide, 3.03 in (77 mm) tall, and 3.7 in (93 mm) deep, fitting standard panel layouts.

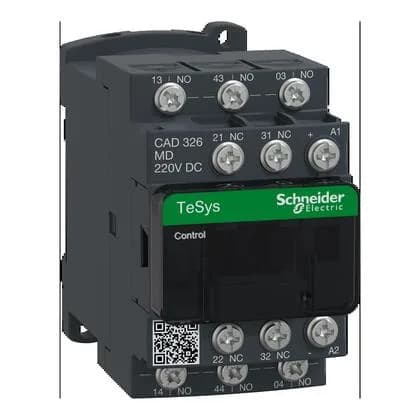

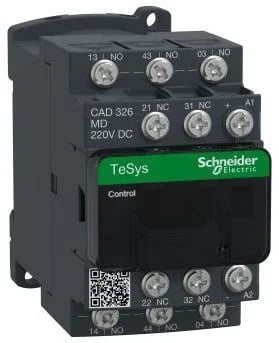

CAD326MD - TeSys Deca Control Relay, 3NO+2NC, 220 VDC
MPNCAD326MD
Active
CAD326MD TeSys Deca control relay, 3 NO + 2 NC, ≤690 V, 220 V DC standard coil.
$152.09Ref. price · indicative, final on quote
StockContact for availability
MOQ1 pcs
Sourced new & surplus through independent channelsAuthenticity-screened · ESD-safe packingListing updated Jul 2026
How we verify every order →Specifications
| Parameter | Value |
|---|---|
| Product or component type | Control relay |
| [Ue] rated operational voltage | 10 MOhm |
| Pole contact composition | 3 NO + 2 NC |
| Utilisation category | DC-13 AC-15 AC-14 |
| IP degree of protection | IP2X front face VDE 0106 |
| Operating altitude | 0...9842.52 ft (0...3000 m) |
| Depth | 3.7 in (93 mm) |
| Width | 1.8 in (45 mm) |
| Height | 3.03 in (77 mm) |
| Standards | EN/IEC 60947-5-1 GB/T 14048.5 UL 60947-5-1 CSA C22.2 No 60947-5-1 JIS C8201-5-1 |
| Range | TeSys TeSys Deca |
| Category | US10I1222371 |
| Device short name | CAD |
| Protective treatment | TH IEC 60068 |
| Contactor application | Control circuit |
| Mechanical robustness | Shocks control relay open10 Gn for 11 ms IEC 60068-2-27 Shocks control relay closed15 Gn for 11 ms IEC 60068-2-27 Vibrations control relay open2 Gn, 5...300 Hz IEC 60068-2-6 Vibrations control relay closed4 Gn, 5...300 Hz IEC 60068-2-6 |
| Ambient air temperature for storage | -76...176 °F (-60...80 °C) |
| Ambient air temperature for operation | -40...140 °F (-40...60 °C) 140...158 °F (60...70 °C) with derating |
Product details
Frequently asked questions
What compliance standards does the CAD326MD meet?
It complies with EN/IEC 60947-5-1, GB/T 14048.5, UL 60947-5-1, CSA C22.2 No 60947-5-1, and JIS C8201-5-1.
What are the key ratings of the CAD326MD?
The control relay has 3 NO + 2 NC contacts, rated operational voltage up to 690 V, a 220 V DC coil, and utilization categories DC-13, AC-15, AC-14.
