Schneider Electric CAD326U7

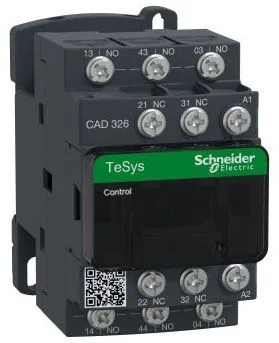

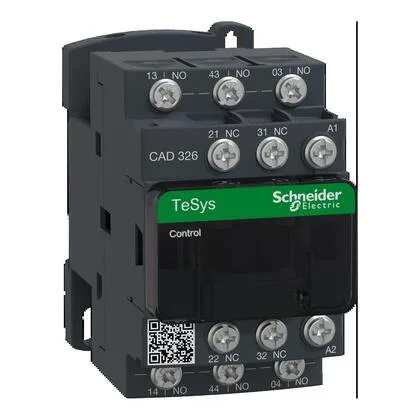

Schneider CAD326U7 TeSys Deca control relay, 3NO-2NC, 240 V AC, 10 A

MPNCAD326U7
Obsolete

Schneider CAD326U7 Solid State Overload Relays — now discontinued, supplied from remaining surplus and broker stock.

$38.10Ref. price · indicative, final on quote
Schneider Electric CAD326U7 datasheet (PDF)
Source DocumentedChannel stated on listing & quote
Condition PhotosReal unit photos / video on request
WhatsApp AnswersFast human replies for machine-down parts
Worldwide DispatchDHL/FedEx — transit quoted per order
Independent China distributor & sourcing agent· Listing updated Sep 2026

Specifications

CAD326U7 specifications
ParameterValue
Product or component typeControl relay
[Ue] rated operational voltage10 MOhm
Pole contact composition3 NO + 2 NC
Utilisation categoryAC-14 AC-15 DC-13
IP degree of protectionIP2X front face VDE 0106
Operating altitude0...9842.52 ft (0...3000 m)
Depth3.3 in (84 mm)
Width1.8 in (45 mm)
Height3.03 in (77 mm)
StandardsEN/IEC 60947-5-1 GB/T 14048.5 UL 60947-5-1 CSA C22.2 No 60947-5-1 JIS C8201-5-1
RangeTeSys TeSys Deca
CategoryUS10I1222371
Device short nameCAD
Protective treatmentTH IEC 60068
Contactor applicationControl circuit
Mechanical robustnessShocks control relay open10 Gn for 11 ms IEC 60068-2-27 Shocks control relay closed15 Gn for 11 ms IEC 60068-2-27 Vibrations control relay open2 Gn, 5...300 Hz IEC 60068-2-6 Vibrations control relay closed4 Gn, 5...300 Hz IEC 60068-2-6
Ambient air temperature for storage-76...176 °F (-60...80 °C)
Ambient air temperature for operation-40...140 °F (-40...60 °C) 140...158 °F (60...70 °C) with derating

Product details

Overview

The CAD326U7 is a Schneider TeSys Deca control relay with a 3NO-2NC contact arrangement, a 240 V AC standard coil, and a switching current rating of 10 A across AC-14, AC-15, and DC-13 utilization categories. It carries global certifications including UL, CSA, CCC, CE, UKCA, and EAC, and is sealed to IP2X on the front face per VDE 0106.

An RFQ confirms current availability for line-down or last-time-buy needs.

Compared to the CAD50GD, the CAD326U7 uses a 240 V AC coil (vs 125 V DC) and a 3NO-2NC contact form (vs 5 NO), making the CAD50GD the right pick when a 5-NO DC-operated relay is required.

MPN
CAD326U7
