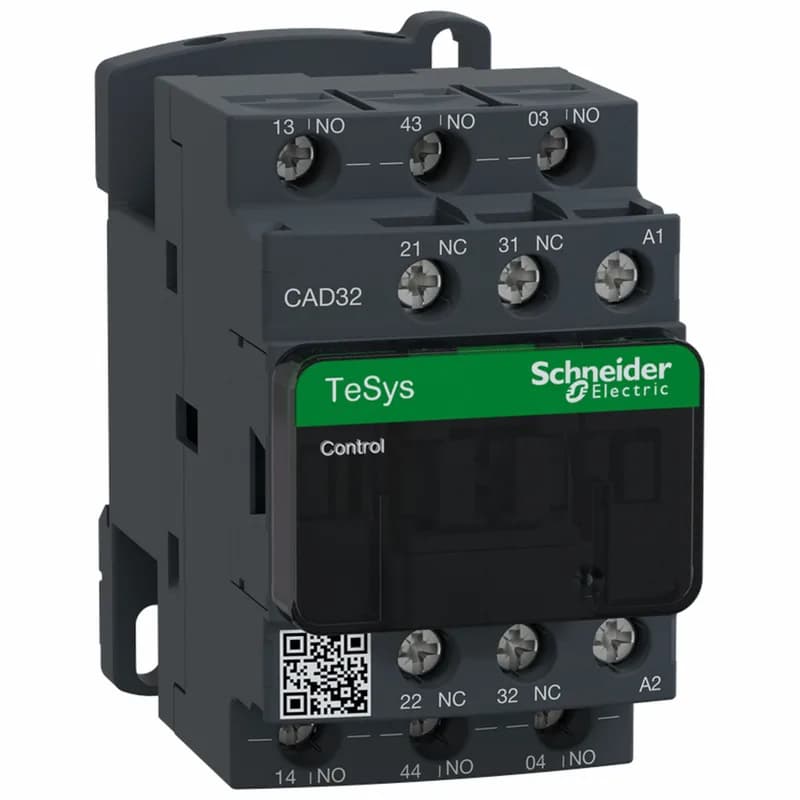

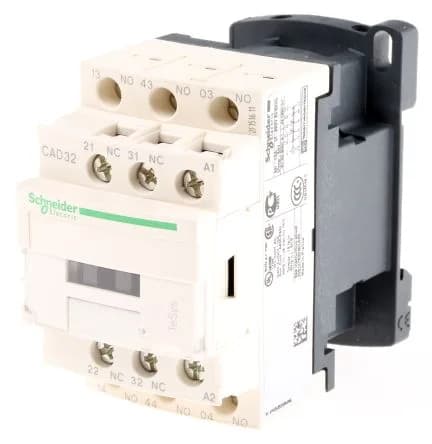

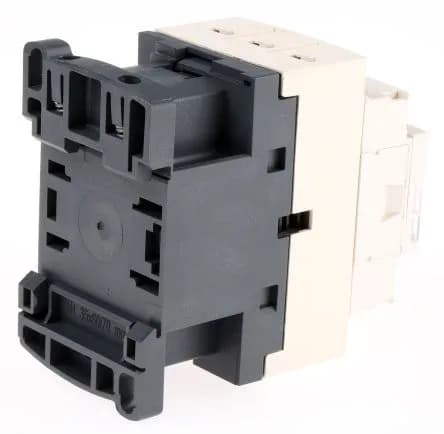

Schneider Electric CAD32B7
MPNCAD32B7
Active
RELAY 600V 10AMP TESYS + OPTIONS|RELAY 600V 10AMP TESYS + OPTIONS
$20.57Ref. price · indicative, final on quote
StockContact for availability
MOQ1 pcs
Sourced new & surplus through independent channelsAuthenticity-screened · ESD-safe packingListing updated Jul 2026
How we verify every order →Specifications
| Parameter | Value |
|---|---|
| Product or component type | Control relay |
| [Ue] rated operational voltage | 10 MOhm |
| Pole contact composition | 3 NO + 2 NC |
| Utilisation category | AC-14 AC-15 DC-13 |
| IP degree of protection | IP2X front face conforming to VDE 0106 |
| Operating altitude | 0...3000 m |
| Depth | 84 mm |
| Width | 45 mm |
| Height | 77 mm |
| Product weight | 0.58 kg |
| Standards | EN/IEC 60947-5-1 GB/T 14048.5 UL 60947-5-1 CSA C22.2 No 60947-5-1 JIS C8201-5-1 |
| Range | TeSys TeSys Deca |
| Device short name | CAD |
| Protective treatment | TH conforming to IEC 60068 |
| Contactor application | Control circuit |
| Mechanical robustness | Shocks control relay open: 10 Gn for 11 ms conforming to IEC 60068-2-27 Shocks control relay closed: 15 Gn for 11 ms conforming to IEC 60068-2-27 Vibrations control relay open: 2 Gn, 5...300 Hz conforming to IEC 60068-2-6 Vibrations control relay closed: 4 Gn, 5...300 Hz conforming to IEC 60068-2-6 |
| Ambient air temperature for storage | -60...80 °C |
| Ambient air temperature for operation | -40...60 °C 60...70 °C with derating |
MPN
CAD32B7
