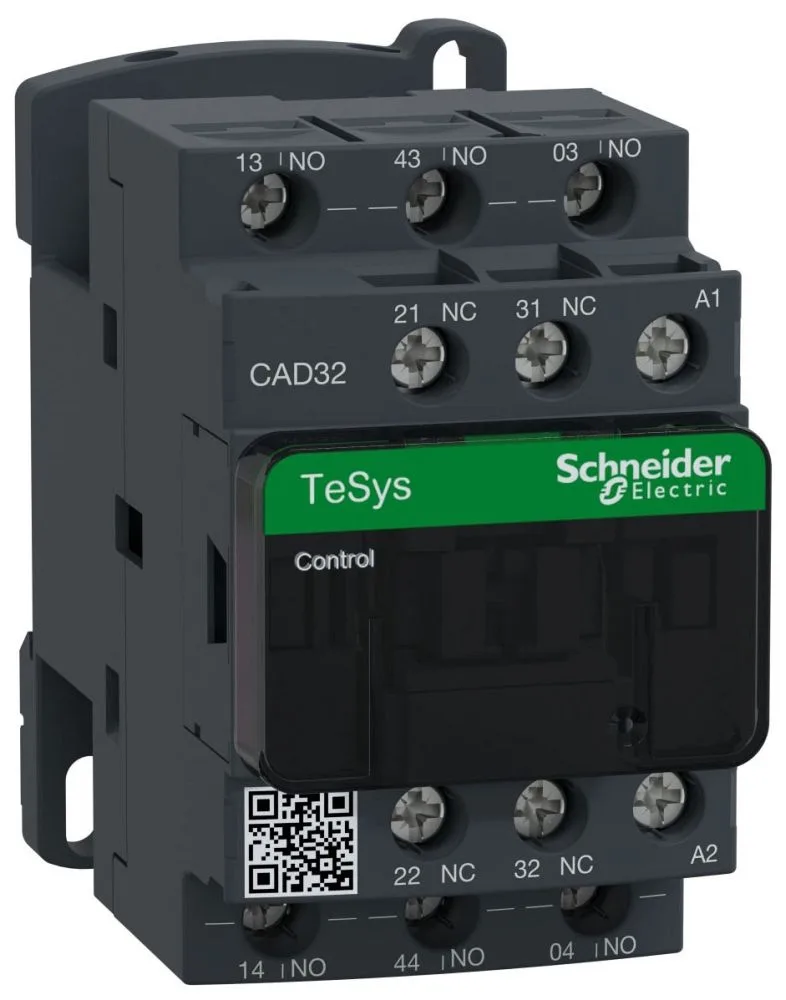

Schneider Electric CAD32G7TQ
MPNCAD32G7TQ
Active
SQUARE D CAD32G7TQ: RELAY 600V 10 AMP TESYS + OPTIONS
$64.59 – $155.69Ref. price · indicative, final on quote
Source DocumentedChannel stated on listing & quote
Condition PhotosReal unit photos / video on request
WhatsApp AnswersFast human replies for machine-down parts
Worldwide DispatchDHL/FedEx — transit quoted per order
Independent China distributor & sourcing agent· Listing updated Sep 2026
Specifications
| Parameter | Value |
|---|---|
| Coil type | Standard |
| Control circuit type | AC |
| Product or component type | Auxiliary contactor |
| Coil voltage | 120 V AC 50/60 Hz |
| Voltage | 600 VCSA 600 VUL 690 V III 3) IEC 60947-5-1 |
| Control circuit voltage limits | Drop-out: 0.3...0.6 Uc Operational: 0.8...1.1 Uc at 50 Hz Operational: 0.85...1.1 Uc at 60 Hz |
| [Ue] rated operational voltage | 10 MOhm |
| [Uimp] rated impulse withstand voltage | 6 kV IEC 60947 |
| Pole contact composition | 3 NO + 2 NC |
| Utilisation category | AC-14 AC-15 |
| IP degree of protection | IP2X conforming to VDE 0106 |
| Connections - terminals | 1 x 0.002...0.006 in² (1...4 mm²)flexible with cable end 1 x 0.002...0.006 in² (1...4 mm²)flexible without cable end 1 x 0.002...0.006 in² (1...4 mm²)solid without cable end 2 x 0.002...0.004 in² (1...2.5 mm²)flexible with cable end 2 x 0.002...0.006 in² (1...4 mm²)flexible without cable end |
All specifications
| Parameter | Value |
|---|---|
| Shock resistance | 10 gn control relay open 15 gn control relay closed |
| Operating altitude | 9842.52 ft (3000 m) without derating |
| Vibration resistance | 2 gn 5...300 Hz control relay open 4 gn 5...300 Hz control relay closed |
| Depth | 3.4 in (86 mm) |
| Width | 1.8 in (45 mm) |
| Height | 3.03 in (77 mm) |
| Standards | EN 60947-5 IEC 60947-5-1 NF C 63-140 VDE 0660 BS 4794 IEC 60335-1 |
| Range | TeSys TeSys Deca |
| Category | US10I1218486 |
| Quantity per set | Set of 10 |
| Contact operation | Mechanically linked IEC 60947-5-1 |
| Device short name | CAD |
| Tightening torque | 15.05 lbf.in (1.7 N.m) |
| Protective treatment | TH IEC 60068 |
| Contactor application | Control circuit |
| Suppressor technology | Without built-in |
| Ambient air temperature for storage | -76...176 °F (-60...80 °C) |
| Ambient air temperature for operation | -40...158 °F (-40...70 °C) at Uc 23...140 °F (-5...60 °C) at 0.8...1.1 Uc |
MPN
CAD32G7TQ
