The CR1F2654F7 is a Schneider TeSys F magnetic contactor, order code CR1F2654F7, 4-pole, rated AC-1 440V 350 A with a 110 V AC coil. Bolted connection terminals; certified to EN/IEC 60947-4-1 and UL 60947-4-1.

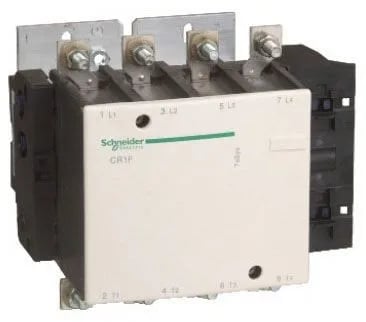

Schneider CR1F2654F7 TeSys F Bistable Contactor, 4P, 110 V Coil
MPNCR1F2654F7
Obsolete
Schneider CR1F2654F7 Square D Contactor Iec +Options — now discontinued. Supplied from remaining channel stock; full specifications, lifecycle and same-series options are below.
StockContact for availability
MOQ1 pcs
Sourced new & surplus through independent channelsAuthenticity-screened · ESD-safe packingListing updated Jul 2026
How we verify every order →Specifications
| Parameter | Value |
|---|---|
| Coil type | Standard |
| Product or component type | Magnetic contactor |
| Coil voltage | 110 V AC 400 Hz 110 V AC 50/60 Hz 110 V DC |
| Voltage | Control circuit: 1000 V conforming to BS 775 Control circuit: 1000 V conforming to IEC 60158-1 Control circuit: 1000 V conforming to IEC 60947-4 Control circuit: 1500 V conforming to VDE 0110 group C |
| Control circuit voltage limits | Latching: 0.85...1.1 Uc Unlatching: 0.85...1.1 Uc |
| [Ue] rated operational voltage | Power circuit: 1000 V AC Power circuit: 1000 V DC |
| Breaking capacity | 1700 A at 660/690 V for power circuit 2200 A at 500 V for power circuit 2450 A at 220...440 V for power circuit 800 A at 1000 V for power circuit |
| [Ie] rated operational current | 245 A (at 265 A (at 350 A (at <40 °C) AC/DC AC-1 for power circuit |
| [Ith] conventional free air thermal current | 250 A (at 40 °C) for power circuit |
| Power dissipation per pole | 22 W AC-3 39 W AC-1 |
| Power pole contact composition | 4 NO |
| Poles description | 4P |
All specifications
| Parameter | Value |
|---|---|
| Utilisation category | AC-1 AC-3 |
| Connections - terminals | Bolted connection |
| Operating altitude | 3000 m without derating |
| Depth | 213 mm |
| Width | 244.5 mm |
| Height | 370 mm |
| Standards | EN/IEC 60947-1 EN/IEC 60947-4-1 JIS C8201-4-1 UL 60947-4-1 CSA C22.2 No 60947-4-1 |
| Range | TeSys |
| Operating time | 35...50 ms latching 50...100 ms unlatching |
| Average impedance | 0.32 Ohm - Ith 250 A 50 Hz for control circuit |
| Device short name | CR1F |
| Average consumption | 1650 VA AC 50/60 Hz latching 12 VA AC 400 Hz unlatching 1800 VA AC 400 Hz latching 9 VA AC 50/60 Hz unlatching 12 VA DC unlatching 1800 VA DC latching |
| Protective treatment | TH |
| Associated fuse rating | 315 A aM for power circuit 400 A BS88 for power circuit 400 A gG for power circuit |
| Irms rated making capacity | 2940 A for power circuit |
| Ambient air temperature for operation | -15...70 °C |
