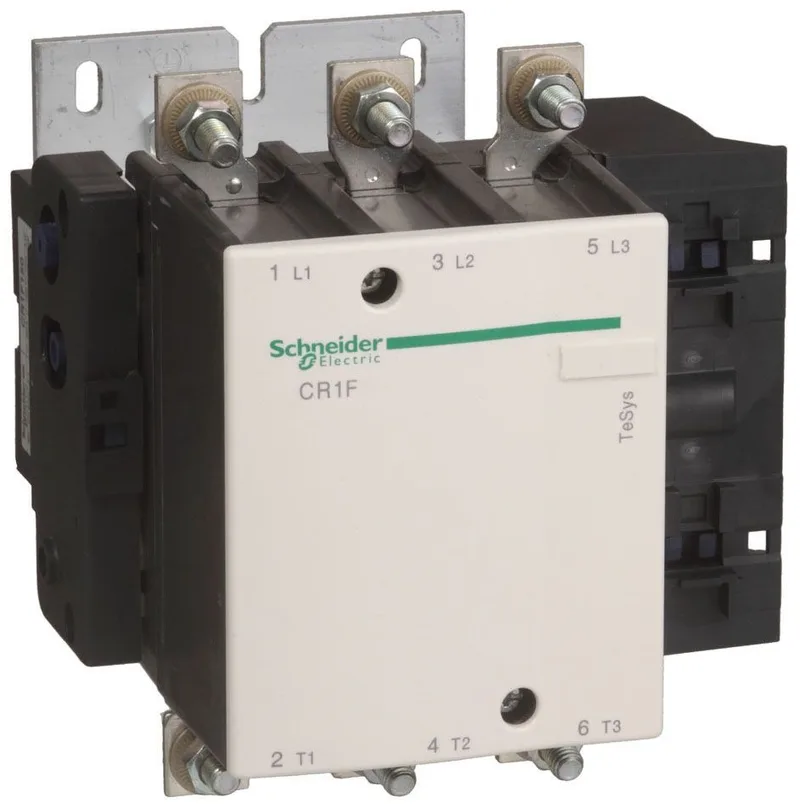

Schneider Electric CR1F Series

31 variants · Schneider Electric

About the Schneider Electric CR1F Series

The Schneider Electric CR1F Series series groups 31 related part numbers, each listed with full specifications, a datasheet where available, and an RFQ option. The listed variants share a common application of Resistive load Motor control, breaking capacity of 2450 A at 220...440 V 2200 A at 500 V 800 A at 1000 V 1700 A at 660/690 V and control circuit type of AC 50...400 Hz DC standard.

Shared specifications

Application
Resistive load Motor control
Breaking capacity
2450 A at 220...440 V 2200 A at 500 V 800 A at 1000 V 1700 A at 660/690 V
Control circuit type
AC 50...400 Hz DC standard
Depth
8.4 in (213 mm)
Height
8.0 in (203 mm)
Main product or component type
Magnetic latching contactor
Mechanical life cycles
1 Mcycles
Operating temperature
5...158 °F (-15...70 °C)
Operating time
40...75 ms latching 50...100 ms unlatching
Storage temperature
-76...176 °F (-60...80 °C)
Temp operating max
70 °C
Temp operating min
-15 °C

Request a quote on any Schneider Electric CR1F Series part number and we confirm price, availability and lead time per line — including end-of-life and allocation-constrained variants.
