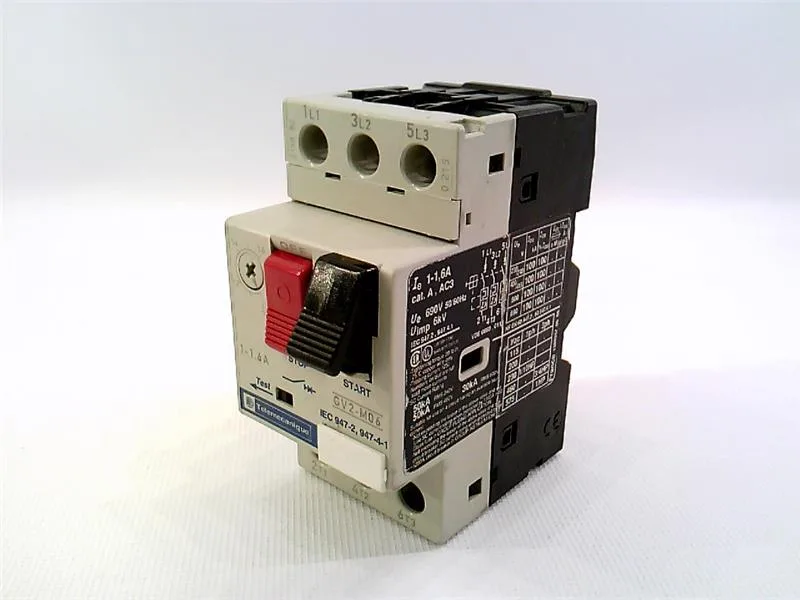

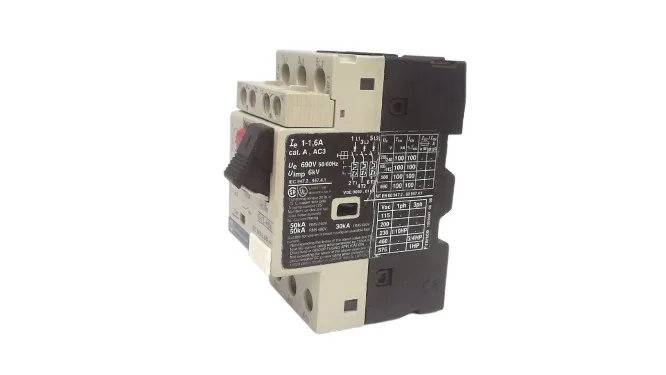

Schneider Electric GV2-M06
MPNGV2-M06
TELEMECANIQUE GV2-M06 MOTOR STARTER
$154.15Ref. price · indicative, final on quote
Sourced new & surplus through independent channelsAuthenticity-screened · ESD-safe packingListing updated Jul 2026
Specifications
| Parameter | Value |
|---|---|
| Type | Motor Starter |
| Control type | Push-Button |
| Type of product | Motor Starter/Motor circuit breaker |
| Voltage | 690 V AC |
| Rated current range | 1 / 1.6 A |
| Conventional free air thermal current | 1.6 A |
| Rated service Short-Circuit breaking capacity (Ics) at 400 v AC | 100 kA |
| Rated ultimate Short-Circuit breaking capacity (Icu) at 400 v AC | 100 kA |
| Motor power | 0.75 kW at 690 V AC 50/60 Hz |
| Frequency | 50/60 Hz |
| Poles | 3 P |
| IP rating | IP20 |
All specifications
| Parameter | Value |
|---|---|
| Weight | 0,27 kg |
| Dimensions | 45 x 89 x 78.5 mm |
| Standard compliance | IEC 947-2, 947-4-1 |
| Model | GV2-M06 |
| Condition | Used |
| Shelf no. | 250320 |
| Fixing mode | 35 mm Symmetrical DIN Rail |
| Manufacturer | Telemecanique |
| Device application | Motor Protection |
| Trip unit technology | Thermal-Magnetic |
| Ambient air temperature for operation | -20 / 60 °C |
MPN
GV2-M06
