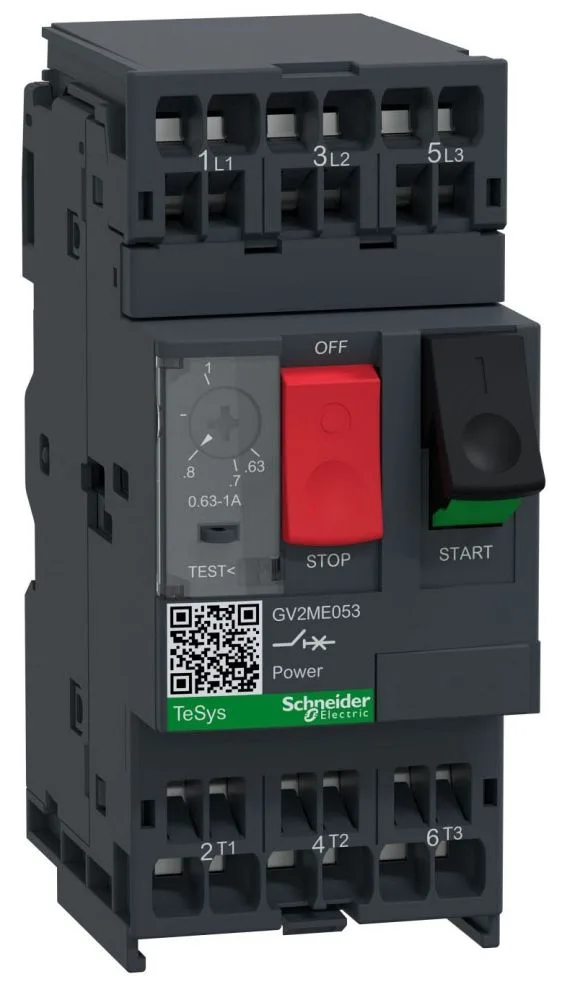

GV2ME053
Schneider Electric
-4...140 °F (-20...60 °C)-40...176 °F (-40...80 °C)Dark grey
Ref. price$34.29
Lead time on requestGet quote
Schneider Electric GV2M Series
87 variants · Schneider Electric
About the Schneider Electric GV2M Series
The Schneider Electric GV2M Series series groups 87 related part numbers, each listed with full specifications, a datasheet where available, and an RFQ option. The listed variants share a common application of Motor protection, color of Dark grey and control type of Push-button. Variants differ by depth, electrical life cycles and height, so you can match the exact depth your application requires using the selection guide below.
Select a variant by
- Depth
- 3.09 in (78.5 mm) · 78.5 mm
- Electrical life cycles
- 100000 cycles AC-3 415 V In 100000 cycles AC-3e 415 V In · 100000 cycles for AC-3 at 415 V In 100000 cycles for AC-3e at 415 V In
- Height
- 3.5 in (89 mm) · 4.0 in (101 mm) · 89 mm · 101 mm
- Operating temperature
- -20...60 °C · -4...140 °F (-20...60 °C)
- Storage temperature
- -40...80 °C · -40...176 °F (-40...80 °C)
- Thermal protection adjustment range
- 0.1–0.16 A · 0.25–0.4 A · 0.4–63 A · 0.63–1 A · 1–1.6 A · 1.6–2.5 A · 2.5–4 A · 4–6.3 A · 17–23 A · 20–25 A
- Width
- 1.8 in (45 mm) · 45 mm
Shared specifications
- Application
- Motor protection
- Color
- Dark grey
- Control type
- Push-button
- IP rating
- IP20
- Main product or component type
- Motor circuit breaker
- Mechanical life cycles
- 100000 cycles
- Temp operating max
- 60 °C
- Temp operating min
- -20 °C
- Temp storage max
- 80 °C
- Temp storage min
- -40 °C
- Trip unit type
- Thermal-magnetic
Variant comparison

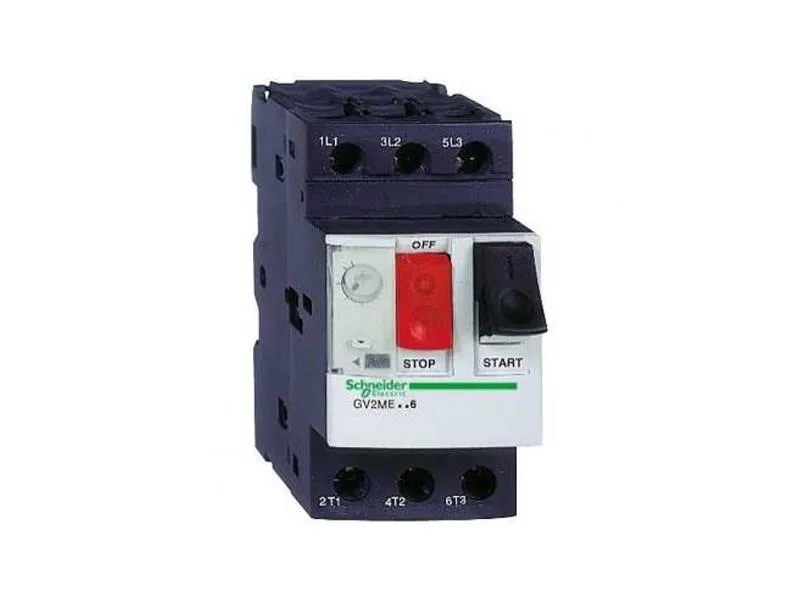

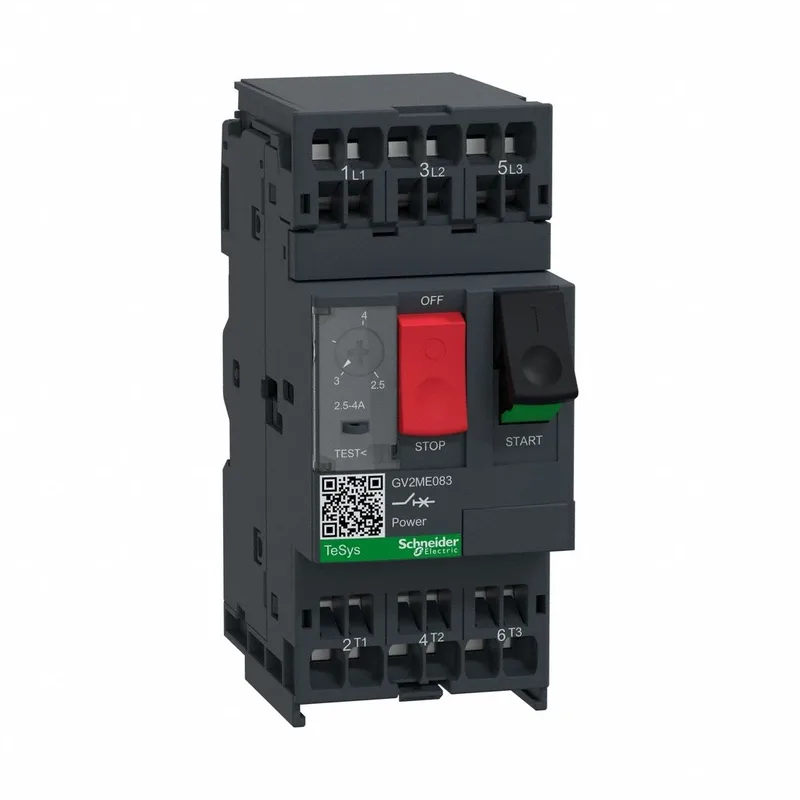

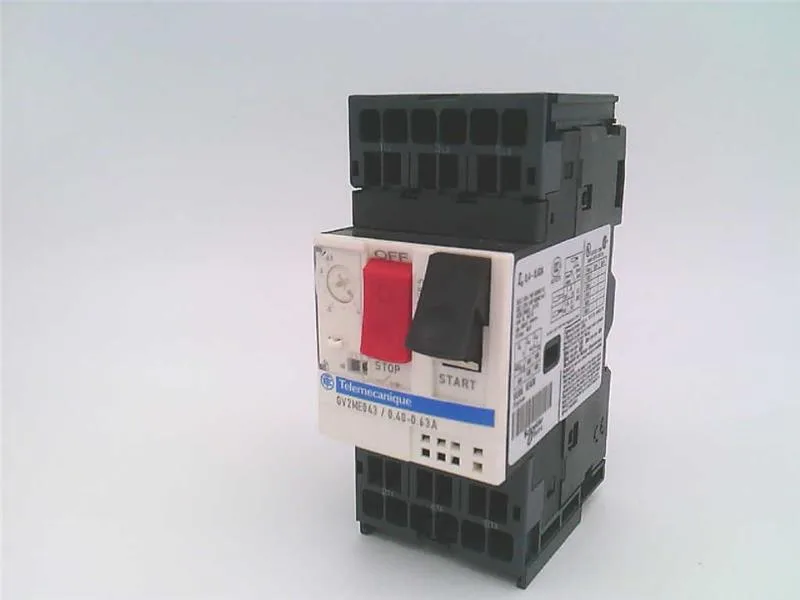

| Parameter | GV2ME216 | GV2ME223 | GV2ME01 | GV2ME043 | GV2ME053 | GV2ME083 |
|---|---|---|---|---|---|---|
| Depth | 3.09 in (78.5 mm) | 3.09 in (78.5 mm) | 78.5 mm | 78.5 mm | 3.09 in (78.5 mm) | 3.09 in (78.5 mm) |
| Electrical life cycles | 100000 cycles AC-3 415 V In 100000 cycles AC-3e 415 V In | 100000 cycles AC-3 415 V In 100000 cycles AC-3e 415 V In | 100000 cycles for AC-3 at 415 V In 100000 cycles for AC-3e at 415 V In | 100000 cycles for AC-3 at 415 V In 100000 cycles for AC-3e at 415 V In | 100000 cycles AC-3 415 V In 100000 cycles AC-3e 415 V In | 100000 cycles AC-3 415 V In 100000 cycles AC-3e 415 V In |
| Height | 3.5 in (89 mm) | 4.0 in (101 mm) | 89 mm | 101 mm | 4.0 in (101 mm) | 4.0 in (101 mm) |
| Operating temperature | -4...140 °F (-20...60 °C) | -4...140 °F (-20...60 °C) | -20...60 °C | -20...60 °C | -4...140 °F (-20...60 °C) | -4...140 °F (-20...60 °C) |
| Storage temperature | -40...176 °F (-40...80 °C) | -40...176 °F (-40...80 °C) | -40...80 °C | -40...80 °C | -40...176 °F (-40...80 °C) | -40...176 °F (-40...80 °C) |
| Thermal protection adjustment range | 17–23 A | 20–25 A | 0.1–0.16 A | 0.4–63 A | 0.63–1 A | 2.5–4 A |
| Width | 1.8 in (45 mm) | 1.8 in (45 mm) | 45 mm | 45 mm | 1.8 in (45 mm) | 1.8 in (45 mm) |
Request a quote on any Schneider Electric GV2M Series part number and we confirm price, availability and lead time per line — including end-of-life and allocation-constrained variants.
