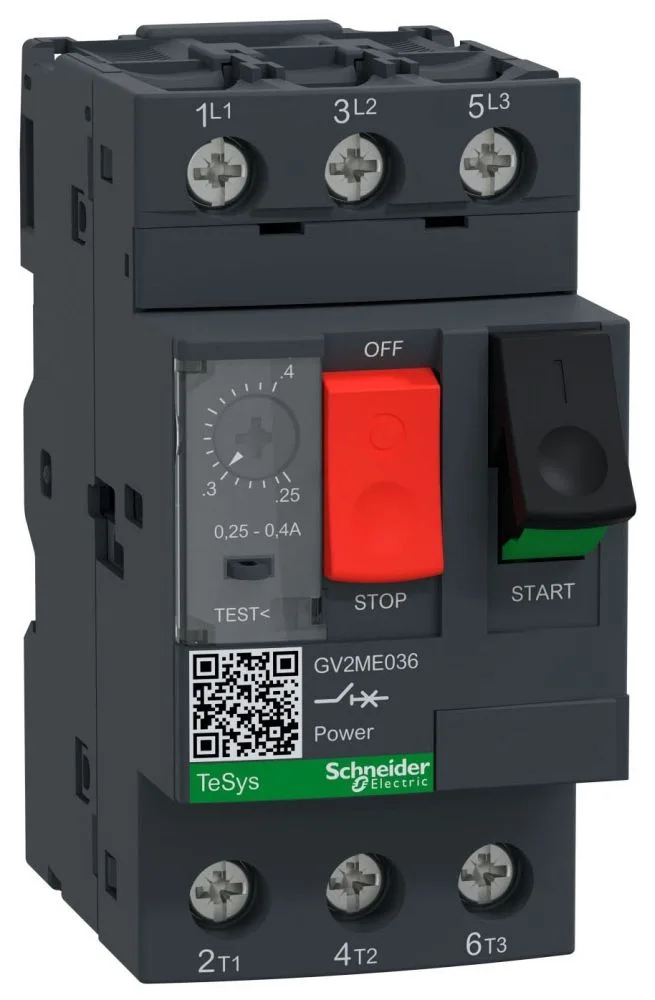

Schneider Electric GV2ME036

Schneider Electric GV2ME036 Motor Circuit Breaker, 0.4 A, 3-

MPNGV2ME036
Obsolete

Schneider Electric TeSys GV2 motor circuit breaker, GV2ME036, 3-pole, 0.4 A, thermal-magnetic, 100 kA breaking capacity.

$152.09Ref. price · indicative, final on quote
Source DocumentedChannel stated on listing & quote
Condition PhotosReal unit photos / video on request
WhatsApp AnswersFast human replies for machine-down parts
Worldwide DispatchDHL/FedEx — transit quoted per order
Independent China distributor & sourcing agent· Listing updated Sep 2026

Specifications

GV2ME036 key specifications
ParameterValue
Control typePush-button
Network typeAC
Product or component typeMotor circuit breaker
Climatic withstandIACS E10
Voltage690 V AC 50/60 Hz IEC 60947-2
[Ue] rated operational voltage690 V AC 50/60 Hz IEC 60947-2
[Uimp] rated impulse withstand voltage6 kV IEC 60947-2
Breaking capacity100 kA Icu 230/240 V AC 50/60 Hz IEC 60947-2 100 kA Icu 400/415 V AC 50/60 Hz IEC 60947-2 100 kA Icu 440 V AC 50/60 Hz IEC 60947-2 100 kA Icu 500 V AC 50/60 Hz IEC 60947-2 100 kA Icu 690 V AC 50/60 Hz IEC 60947-2
Line rated current0.4 A
Magnetic tripping current5.8 A
[Ith] conventional free air thermal current0.4 A IEC 60947-2
[Ics] rated service short-circuit breaking capacity100 % 230/240 V AC 50/60 Hz IEC 60947-2 100 % 400/415 V AC 50/60 Hz IEC 60947-2 100 % 440 V AC 50/60 Hz IEC 60947-2 100 % 500 V AC 50/60 Hz IEC 60947-2 100 % 690 V AC 50/60 Hz IEC 60947-2

All specifications

GV2ME036 additional specifications
ParameterValue
Motor power0.09 kW 400/415 V AC 50/60 Hz
Power dissipation per pole2.5 W
Network frequency50/60 Hz IEC 60947-2
Poles description3P
Phase failure sensitivityYes IEC 60947-4-1
Rated dutyUninterrupted IEC 60947-4-1
Utilisation categoryCategory A IEC 60947-2 AC-3 IEC 60947-4-1 AC-3e IEC 60947-4-1
IK degree of protectionIK04
IP degree of protectionIP20 IEC 60529
Mounting positionHorizontal Vertical
Connection pitch0.5 in (13.5 mm) without spreader
Connections - terminalsPower circuit lugs-ring terminals 2 0.002...0.009 in² (1...6 mm²)solid Power circuit lugs-ring terminals 2 0.002...0.009 in² (1.5...6 mm²)flexible without cable end Power circuit lugs-ring terminals 2 0.002...0.006 in² (1...4 mm²)flexible with cable end
Operating altitude<= 6561.68 ft (2000 m)
ColorDark grey
Depth3.09 in (78.5 mm)
Width1.8 in (45 mm)
Height3.5 in (89 mm)
Electrical durability100000 cycles AC-3 415 V In 100000 cycles AC-3e 415 V In
Mechanical durability100000 cycles
StandardsEN/IEC 60947-2 EN/IEC 60947-4-1 UL 60947-4-1 CSA C22.2 No 60947-4-1 IEC/EN 60335-2-40:Annex JJ IEC/EN 60335-1:Clause 30.2
RangeTeSys Deca
CategoryUS10I1122367
Fixing mode35 mm symmetrical DIN rail clipped Panel screwed with adaptor plate)
Fire resistance1760 °F (960 °C) IEC 60695-2-11
Device short nameGV2ME
Tightening torque15.05 lbf.in (1.7 N.m) screw clamp terminal
Device applicationMotor protection
Trip unit technologyThermal-magnetic
Mechanical robustnessShocks 30 Gn for 11 ms Vibrations 5 Gn, 5...150 Hz
Suitability for isolationYes IEC 60947-1
Ambient air temperature for storage-40...176 °F (-40...80 °C)
Thermal protection adjustment range0.25...0.4 A IEC 60947-2
Ambient air temperature for operation-4...140 °F (-20...60 °C)

Product details

The GV2ME036 is a 3-pole motor circuit breaker from Schneider's TeSys GV2 range, rated for a line current of 0.4 A. It's a thermal-magnetic trip unit — thermal for overload protection, magnetic for short-circuit — and it's designed for motor protection duty in control panels. The 0.4 A rating places it at the low end of the family, meant for very small motors like 0.09 kW at 400 V AC. Its breaking capacity is a solid 100 kA across 230 V to 690 V AC, so it can handle high fault currents without being the weak link in your selective coordination.

It can be installed horizontally or vertically. The connection pitch is 13.5 mm without spreaders, so there's enough room for ring lugs. It's IP20 rated, so finger-safe but not for wet environments.

Frequently asked questions

What is GV2ME036's listed color?

The housing is dark grey.

What is GV2ME036's depth?

Depth is 3.09 inches (78.5 mm).

What compliance standards does GV2ME036 meet?

It complies with EN/IEC 60947-2, IEC 60947-4-1, UL 60947-4-1, CSA C22.2 No 60947-4-1, and additional standards like IEC/EN 60335. It also passed glow-wire testing at 960 °C (IEC 60695-2-11).
