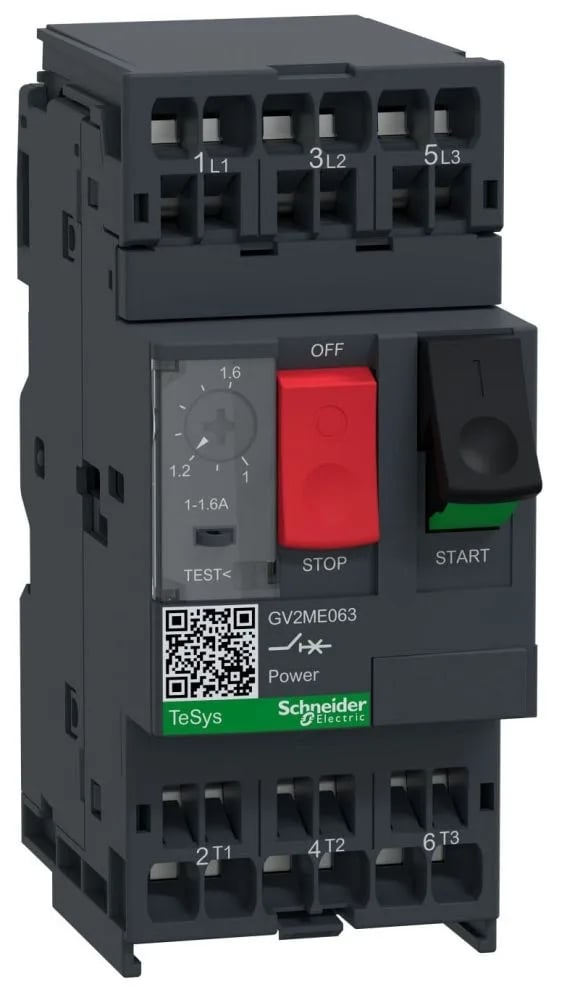

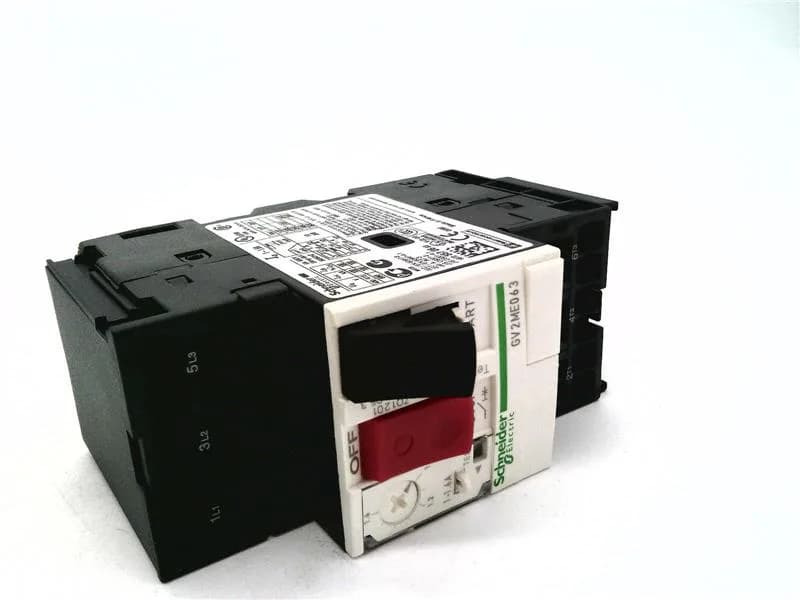

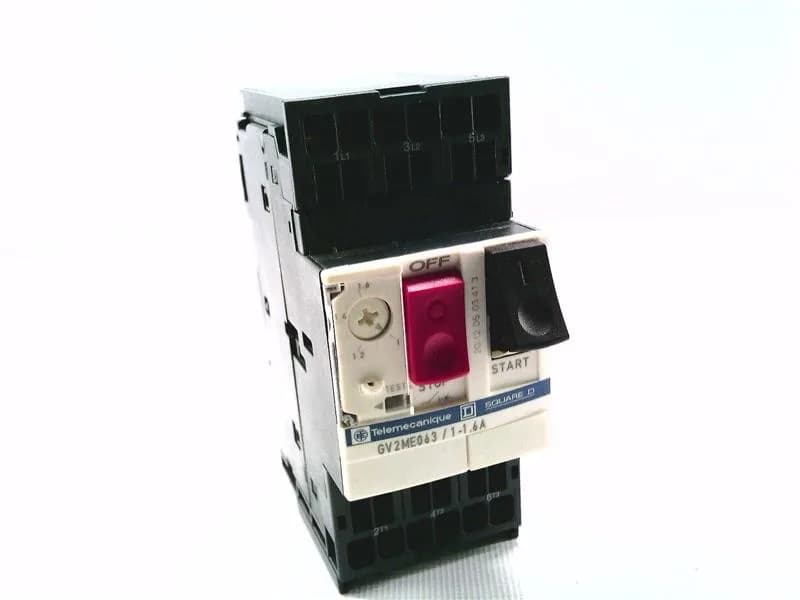

Schneider Electric GV2ME063

Schneider GV2ME063 Motor Circuit Breaker, 1.6 A - TeSys Deca

MPNGV2ME063
Obsolete

Schneider Electric TeSys Deca GV2ME063, motor circuit breaker, 3-pole, 1.6 A, thermal-magnetic, 100 kA Icu at 400 V AC, spring terminals.

$34.29Ref. price · indicative, final on quote
Schneider Electric GV2ME063 datasheet (PDF)
StockContact for availability
MOQ1 pcs
Sourced new & surplus through independent channelsAuthenticity-screened · ESD-safe packingListing updated Jul 2026
How we verify every order →

Specifications

GV2ME063 key specifications
ParameterValue
Control typePush-button
Network typeAC
Product or component typeMotor circuit breaker
Climatic withstandconforming to IACS E10
Voltage690 V AC 50/60 Hz conforming to IEC 60947-2
[Ue] rated operational voltage690 V AC 50/60 Hz conforming to IEC 60947-2
[Uimp] rated impulse withstand voltage6 kV conforming to IEC 60947-2
Breaking capacity100 kA Icu at 230/240 V AC 50/60 Hz conforming to IEC 60947-2 100 kA Icu at 400/415 V AC 50/60 Hz conforming to IEC 60947-2 100 kA Icu at 440 V AC 50/60 Hz conforming to IEC 60947-2 100 kA Icu at 500 V AC 50/60 Hz conforming to IEC 60947-2 100 kA Icu at 690 V AC 50/60 Hz conforming to IEC 60947-2
Current1.6 A
Magnetic tripping current26.2 A
[Ith] conventional free air thermal current1.6 A conforming to IEC 60947-2
[Ics] rated service short-circuit breaking capacity100 % at 230/240 V AC 50/60 Hz conforming to IEC 60947-2 100 % at 400/415 V AC 50/60 Hz conforming to IEC 60947-2 100 % at 440 V AC 50/60 Hz conforming to IEC 60947-2 100 % at 500 V AC 50/60 Hz conforming to IEC 60947-2 100 % at 690 V AC 50/60 Hz conforming to IEC 60947-2

All specifications

GV2ME063 additional specifications
ParameterValue
Motor power0.37 kW at 400/415 V AC 50/60 Hz 0.55 kW at 400/415 V AC 50/60 Hz 0.37 kW at 500 V AC 50/60 Hz 0.55 kW at 500 V AC 50/60 Hz 0.75 kW at 500 V AC 50/60 Hz
Power dissipation per pole2.5 W
Network frequency50/60 Hz conforming to IEC 60947-2
Poles description3P
Phase failure sensitivityYes conforming to IEC 60947-4-1
Rated dutyUninterrupted conforming to IEC 60947-4-1
Utilisation categoryCategory A conforming to IEC 60947-2 AC-3 conforming to IEC 60947-4-1 AC-3e conforming to IEC 60947-4-1
IK degree of protectionIK04
IP degree of protectionIP20 conforming to IEC 60529
Mounting positionHorizontal Vertical
Connections - terminalsPower circuit: spring terminals 2 cable(s) 1...6 mm² solid Power circuit: spring terminals 2 cable(s) 1.5...4 mm² flexible without cable end Power circuit: spring terminals 2 cable(s) 1...4 mm² flexible with cable end
Operating altitude<= 2000 m
Depth78.5 mm
Width45 mm
ColorDark grey
Height101 mm
Electrical durability100000 cycles for AC-3 at 415 V In 100000 cycles for AC-3e at 415 V In
Mechanical durability100000 cycles
StandardsEN/IEC 60947-2 EN/IEC 60947-4-1 UL 60947-4-1 CSA C22.2 No 60947-4-1 IEC/EN 60335-2-40:Annex JJ IEC/EN 60335-1:Clause 30.2
RangeTeSys Deca
Fixing mode35 mm symmetrical DIN rail: clipped Panel: screwed (with adaptor plate)
Fire resistance960 °C conforming to IEC 60695-2-11
Device short nameGV2ME
Device applicationMotor protection
Trip unit technologyThermal-magnetic
Mechanical robustnessShocks: 30 Gn for 11 ms Vibrations: 5 Gn, 5...150 Hz
Suitability for isolationYes conforming to IEC 60947-1
Ambient air temperature for storage-40...80 °C
Thermal protection adjustment range1...1.6 A conforming to IEC 60947-2
Ambient air temperature for operation-20...60 °C

Product details

Integrator note

Spring terminal power connections accept 1 to 6 mm² solid or 1.5 to 4 mm² flexible wire, allowing straightforward wiring in control panels. DIN-rail or panel mounting (with adaptor) fits standard enclosures; the 78.5 mm depth leaves clearance for compact cabinets.

Mount on 35 mm DIN rail or screw-fix; spring terminals accept 1–6 mm² solid or 1.5–4 mm² flexible wire per pole. The dark grey 45 × 101 mm housing offers IP20 and IK04 protection, rated for uninterrupted duty per IEC 60947-4-1.

Frequently asked questions

What are the key dimension specs?

Depth 78.5 mm, width 45 mm, height 101 mm. It mounts on 35 mm DIN rail or panel with adaptor.

What compliance standards does it meet?

It conforms to EN/IEC 60947-2, EN/IEC 60947-4-1, UL 60947-4-1, CSA C22.2 No 60947-4-1, and others.
