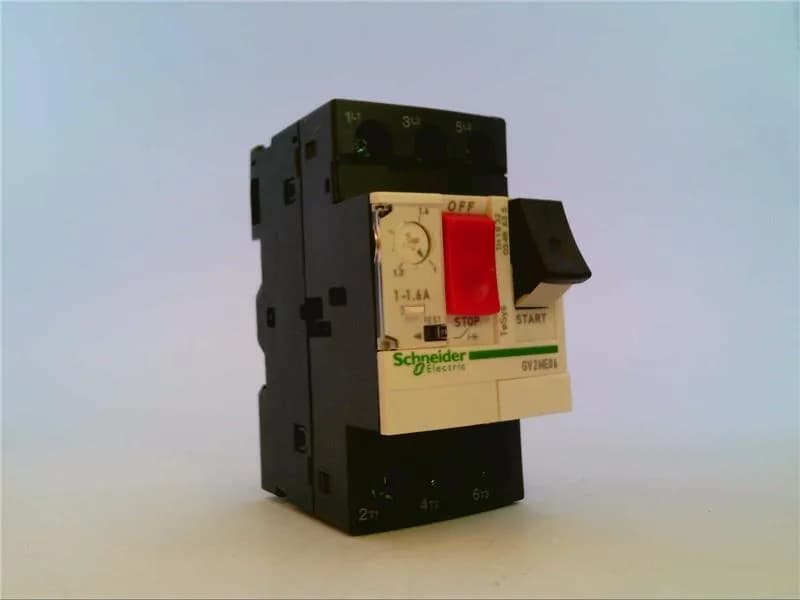

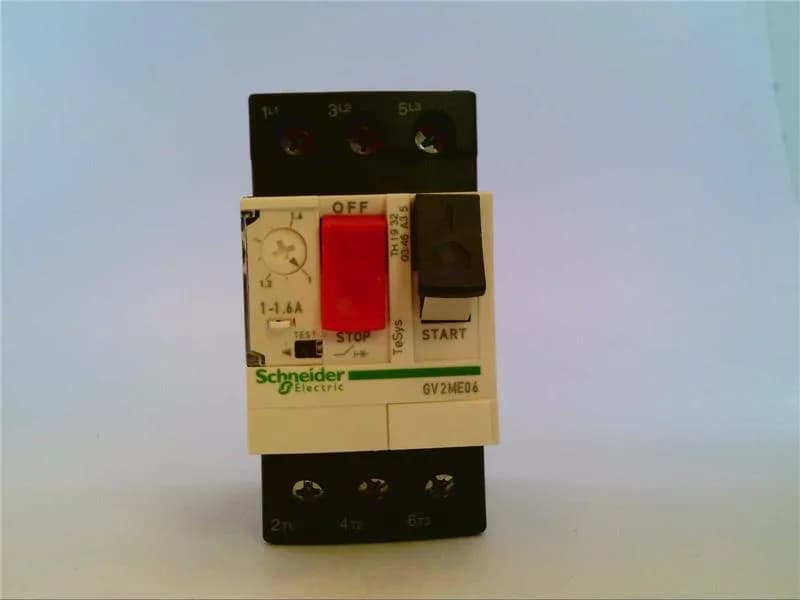

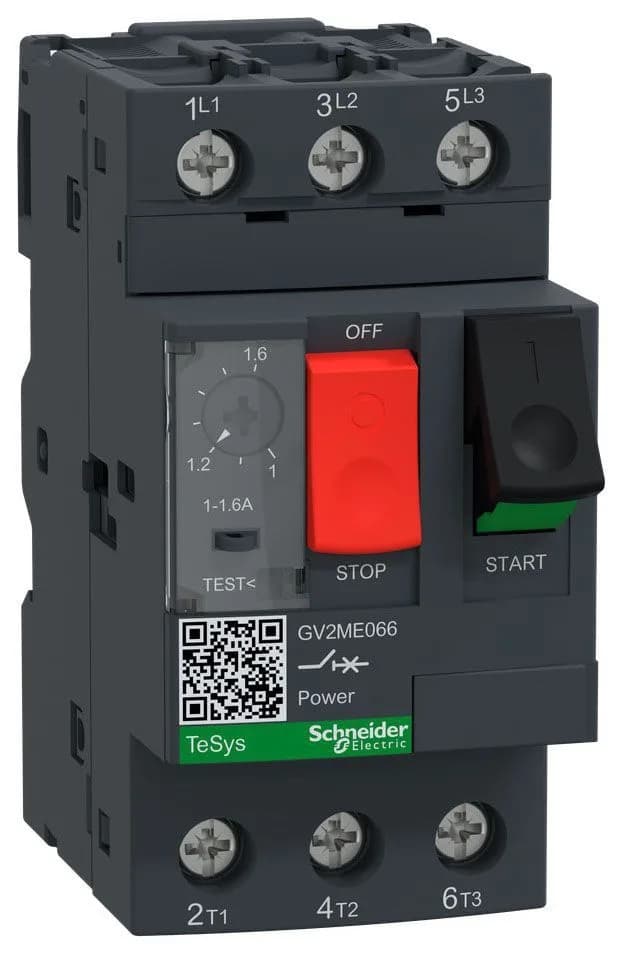

Schneider Electric GV2ME066

Schneider GV2ME066 TeSys Deca Motor Circuit Breaker, 1.6 A

MPNGV2ME066
Active

Schneider Electric TeSys Deca GV2 motor circuit breaker, GV2ME066, 3-pole, 1.6 A, thermal-magnetic trip, 100 kA breaking capacity at 400/415 V AC.

$34.29Ref. price · indicative, final on quote
Schneider Electric GV2ME066 datasheet (PDF)
StockContact for availability
MOQ1 pcs
Sourced new & surplus through independent channelsAuthenticity-screened · ESD-safe packingListing updated Jul 2026
How we verify every order →

Specifications

GV2ME066 key specifications
ParameterValue
Control typePush-button
Network typeAC
Product or component typeMotor circuit breaker
Climatic withstandIACS E10
Voltage690 V AC 50/60 Hz IEC 60947-2
[Ue] rated operational voltage690 V AC 50/60 Hz IEC 60947-2
[Uimp] rated impulse withstand voltage6 kV IEC 60947-2
Breaking capacity100 kA Icu 230/240 V AC 50/60 Hz IEC 60947-2 100 kA Icu 400/415 V AC 50/60 Hz IEC 60947-2 100 kA Icu 440 V AC 50/60 Hz IEC 60947-2 100 kA Icu 500 V AC 50/60 Hz IEC 60947-2 100 kA Icu 690 V AC 50/60 Hz IEC 60947-2
Line rated current1.6 A
Magnetic tripping current26.2 A
[Ith] conventional free air thermal current1.6 A IEC 60947-2
[Ics] rated service short-circuit breaking capacity100 % 230/240 V AC 50/60 Hz IEC 60947-2 100 % 400/415 V AC 50/60 Hz IEC 60947-2 100 % 440 V AC 50/60 Hz IEC 60947-2 100 % 500 V AC 50/60 Hz IEC 60947-2 100 % 690 V AC 50/60 Hz IEC 60947-2

All specifications

GV2ME066 additional specifications
ParameterValue
Motor power0.37 kW 400/415 V AC 50/60 Hz 0.55 kW 400/415 V AC 50/60 Hz 0.37 kW 500 V AC 50/60 Hz 0.55 kW 500 V AC 50/60 Hz 0.75 kW 500 V AC 50/60 Hz 0.75 kW 690 V AC 50/60 Hz 1.1 kW 690 V AC 50/60 Hz
Power dissipation per pole2.5 W
Network frequency50/60 Hz IEC 60947-2
Poles description3P
Phase failure sensitivityYes IEC 60947-4-1
Rated dutyUninterrupted IEC 60947-4-1
Utilisation categoryCategory A IEC 60947-2 AC-3 IEC 60947-4-1 AC-3e IEC 60947-4-1
IK degree of protectionIK04
IP degree of protectionIP20 IEC 60529
Mounting positionHorizontal Vertical
Connection pitch0.5 in (13.5 mm) without spreader
Connections - terminalsPower circuit lugs-ring terminals 2 0.002...0.009 in² (1...6 mm²)solid Power circuit lugs-ring terminals 2 0.002...0.009 in² (1.5...6 mm²)flexible without cable end Power circuit lugs-ring terminals 2 0.002...0.006 in² (1...4 mm²)flexible with cable end
Operating altitude<= 6561.68 ft (2000 m)
ColorDark grey
Depth3.09 in (78.5 mm)
Width1.8 in (45 mm)
Height3.5 in (89 mm)
Electrical durability100000 cycles AC-3 415 V In 100000 cycles AC-3e 415 V In
Mechanical durability100000 cycles
StandardsEN/IEC 60947-2 EN/IEC 60947-4-1 UL 60947-4-1 CSA C22.2 No 60947-4-1 IEC/EN 60335-2-40:Annex JJ IEC/EN 60335-1:Clause 30.2
RangeTeSys Deca
CategoryUS10I1122367
Fixing mode35 mm symmetrical DIN rail clipped Panel screwed with adaptor plate)
Fire resistance1760 °F (960 °C) IEC 60695-2-11
Device short nameGV2ME
Tightening torque15.05 lbf.in (1.7 N.m) screw clamp terminal
Device applicationMotor protection
Trip unit technologyThermal-magnetic
Mechanical robustnessShocks 30 Gn for 11 ms Vibrations 5 Gn, 5...150 Hz
Suitability for isolationYes IEC 60947-1
Ambient air temperature for storage-40...176 °F (-40...80 °C)
Thermal protection adjustment range1...1.6 A IEC 60947-2
Ambient air temperature for operation-4...140 °F (-20...60 °C)

Product details

Part identity and motor rating

GV2ME066 is a TeSys Deca motor circuit breaker with a thermal-magnetic trip unit, rated 1.6 A line current. It's sized for motor protection duties matching 0.37 kW at 400/415 V AC or 0.55 kW at 500 V – the exact power ratings are listed for 50/60 Hz supplies.

Breaking capacity and duty class

Rated interrupting capacity is 100 kA Icu at 240 V, 400/415 V, 440 V, 500 V, and 690 V AC – that's consistent across the voltage range, not stepped down. Utilisation category A per IEC 60947-2 and AC-3 / AC-3e per 60947-4-1, so it's listed for motor switching with infrequent breaking. Electrical durability is 100,000 cycles under AC-3 at 415 V at full rated current, which suits standard motor start applications.

Fixes to 35 mm symmetrical DIN rail or panel-mounted with an adapter plate. It's 45 mm wide (1.8 in) and 89 mm tall (3.5 in), fits neatly in a row with other TeSys Deca components. Terminals accept solid conductors 1–6 mm² or flexible 1.5–6 mm² without cable end (1–4 mm² with ferrule). Tightening torque is 1.7 N·m on screw-clamp terminals. IP20 finger-safe, IK04 impact rating – fine inside a standard enclosed panel.

Frequently asked questions

What is the breaking capacity of GV2ME066?

It's rated 100 kA Icu at 230/240 V, 400/415 V, 440 V, 500 V, and 690 V AC per IEC 60947-2 – same capacity across all those voltages.

What compliance documentation does GV2ME066 carry?

GV2ME066 complies with EN/IEC 60947-2, EN/IEC 60947-4-1, UL 60947-4-1, CSA C22.2 No 60947-4-1, IEC/EN 60335-2-40 Annex JJ, and IEC/EN 60335-1 Clause 30.2. Fire resistance tested at 960 °C (1760 °F) per IEC 60695-2-11.
