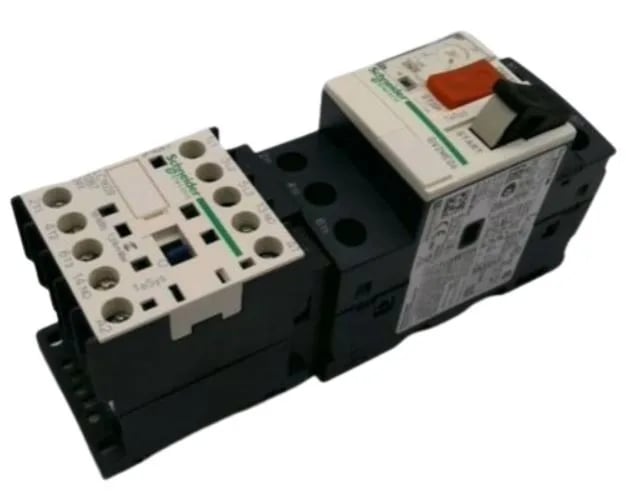

Schneider GV2ME06K1B7 Motor Starter
MPNGV2ME06K1B7
Obsolete
GV2ME06K1B7 - COMBINATION MOTOR STARTER by SCHNEIDER ELECTRIC
$85.73Ref. price · indicative, final on quote
Source DocumentedChannel stated on listing & quote
Condition PhotosReal unit photos / video on request
WhatsApp AnswersFast human replies for machine-down parts
Worldwide DispatchDHL/FedEx — transit quoted per order
Independent China distributor & sourcing agent· Listing updated Sep 2026
Specifications
| Parameter | Value |
|---|---|
| Coordination type | Type 1 |
| Motor starter type | Non reversing |
| Product or component type | Motor starter |
| Coil voltage | 24 V AC 50/60 Hz |
| Breaking capacity | 50 kA Iq at 400/415 V AC 50/60 Hz conforming to IEC 60947-4-1 50 kA Iq at 440 V AC 50/60 Hz conforming to IEC 60947-4-1 50 kA Iq at 500 V AC 50/60 Hz conforming to IEC 60947-4-1 |
| Magnetic tripping current | 22.5 A |
| Motor power | 0.37 kW at 400/415 V AC 50/60 Hz 0.55 kW at 400/415 V AC 50/60 Hz 0.37 kW at 440 V AC 50/60 Hz 0.55 kW at 440 V AC 50/60 Hz 0.37 kW at 500 V AC 50/60 Hz 0.55 kW at 500 V AC 50/60 Hz 0.75 kW at 500 V AC 50/60 Hz |
| Poles description | 3P |
| Utilisation category | AC-3 |
| Depth | 87 mm |
| Width | 45 mm |
| Height | 152 mm |
| Range | TeSys |
| Device short name | GV2ME |
| Device composition | 1 motor circuit breaker type GV2ME 1 3-pole contactor 1 combination block GV2AF01 |
| Thermal protection adjustment range | 1...1.6 A |
MPN
GV2ME06K1B7
