Schneider Electric GV2ME106

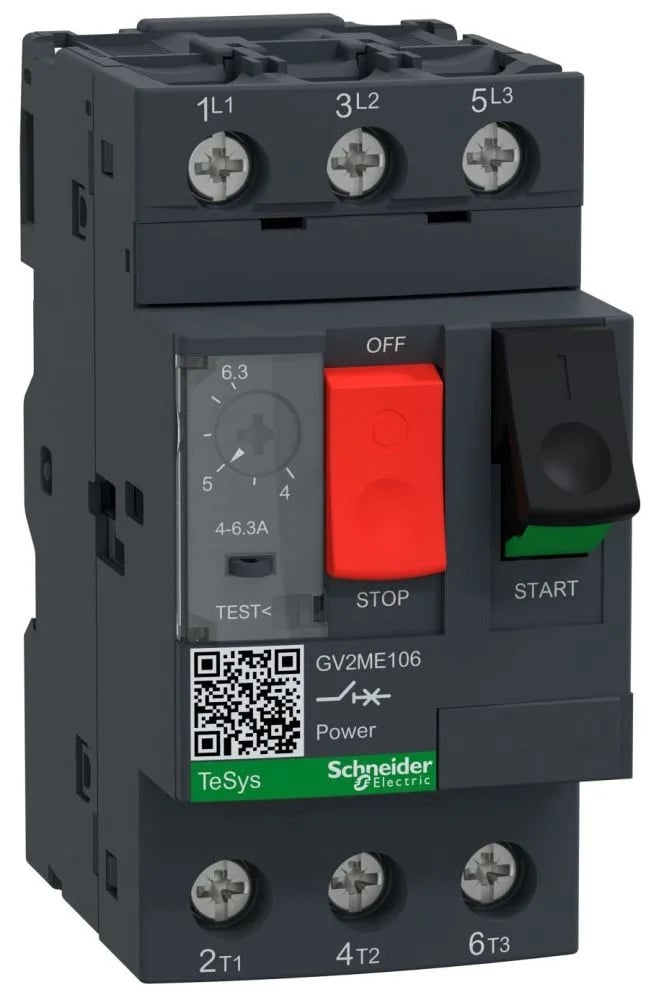

Schneider GV2ME106 Mtr Ckt Breaker 6.3A 3P 100kA

MPNGV2ME106
Active

Schneider TeSys GV2 GV2ME106 motor circuit breaker, 3-pole, 6.3 A rated, thermal-magnetic, breaking capacity 100 kA at 400 V AC, IP20.

$170.59Ref. price · indicative, final on quote
Schneider Electric GV2ME106 datasheet (PDF)
StockContact for availability
MOQ1 pcs
Sourced new & surplus through independent channelsAuthenticity-screened · ESD-safe packingListing updated Jul 2026
How we verify every order →

Specifications

GV2ME106 key specifications
ParameterValue
Control typePush-button
Network typeAC
Product or component typeMotor circuit breaker
Climatic withstandIACS E10
Voltage690 V AC 50/60 Hz IEC 60947-2
[Ue] rated operational voltage690 V AC 50/60 Hz IEC 60947-2
[Uimp] rated impulse withstand voltage6 kV IEC 60947-2
Breaking capacity100 kA Icu 230/240 V AC 50/60 Hz IEC 60947-2 100 kA Icu 400/415 V AC 50/60 Hz IEC 60947-2 50 kA Icu 440 V AC 50/60 Hz IEC 60947-2 50 kA Icu 500 V AC 50/60 Hz IEC 60947-2 3 kA Icu 690 V AC 50/60 Hz IEC 60947-2
Line rated current6.3 A
Magnetic tripping current91 A
[Ith] conventional free air thermal current6.3 A IEC 60947-2
[Ics] rated service short-circuit breaking capacity100 % 230/240 V AC 50/60 Hz IEC 60947-2 100 % 400/415 V AC 50/60 Hz IEC 60947-2 100 % 440 V AC 50/60 Hz IEC 60947-2 100 % 500 V AC 50/60 Hz IEC 60947-2 75 % 690 V AC 50/60 Hz IEC 60947-2

All specifications

GV2ME106 additional specifications
ParameterValue
Motor power2.2 kW 400/415 V AC 50/60 Hz 3 kW 500 V AC 50/60 Hz 4 kW 690 V AC 50/60 Hz
Power dissipation per pole2.5 W
Network frequency50/60 Hz IEC 60947-2
Poles description3P
Phase failure sensitivityYes IEC 60947-4-1
Rated dutyUninterrupted IEC 60947-4-1
Utilisation categoryCategory A IEC 60947-2 AC-3 IEC 60947-4-1 AC-3e IEC 60947-4-1
IK degree of protectionIK04
IP degree of protectionIP20 IEC 60529
Mounting positionHorizontal Vertical
Connection pitch0.5 in (13.5 mm) without spreader
Connections - terminalsPower circuit lugs-ring terminals 2 0.002...0.009 in² (1...6 mm²)solid Power circuit lugs-ring terminals 2 0.002...0.009 in² (1.5...6 mm²)flexible without cable end Power circuit lugs-ring terminals 2 0.002...0.006 in² (1...4 mm²)flexible with cable end
Operating altitude<= 6561.68 ft (2000 m)
ColorDark grey
Depth3.09 in (78.5 mm)
Width1.8 in (45 mm)
Height3.5 in (89 mm)
Electrical durability100000 cycles AC-3 415 V In 100000 cycles AC-3e 415 V In
Mechanical durability100000 cycles
StandardsEN/IEC 60947-2 EN/IEC 60947-4-1 UL 60947-4-1 CSA C22.2 No 60947-4-1 IEC/EN 60335-2-40:Annex JJ IEC/EN 60335-1:Clause 30.2
RangeTeSys Deca
CategoryUS10I1122367
Fixing mode35 mm symmetrical DIN rail clipped Panel screwed with adaptor plate)
Fire resistance1760 °F (960 °C) IEC 60695-2-11
Device short nameGV2ME
Tightening torque15.05 lbf.in (1.7 N.m) screw clamp terminal
Device applicationMotor protection
Trip unit technologyThermal-magnetic
Mechanical robustnessShocks 30 Gn for 11 ms Vibrations 5 Gn, 5...150 Hz
Suitability for isolationYes IEC 60947-1
Ambient air temperature for storage-40...176 °F (-40...80 °C)
Thermal protection adjustment range4...6.3 A IEC 60947-2
Ambient air temperature for operation-4...140 °F (-20...60 °C)

Product details

Device overview

The Schneider GV2ME106 is a 3-pole motor circuit breaker from the TeSys GV2 range, sized for protecting 2.2 kW motors at 400 V or 3 kW at 500 V. Its thermal-magnetic trip unit handles sustained overloads and short circuits with a 6.3 A continuous rating. Magnetic trip is fixed at 91 A, so it clears fast on a solid bolted fault.

Mounting and installation

Horizontal or vertical orientation is acceptable. Terminal lugs accept ring terminals from 1 to 6 mm², and the 45 mm width leaves room for adjacent units in a motor starter combination. IP20 finger-safe enclosure with IK04 impact resistance. Fire rating meets 960 °C glow-wire test per IEC 60695-2-11.

Designed and tested to EN/IEC 60947-2, EN/IEC 60947-4-1, UL 60947-4-1, CSA C22.2 No 60947-4-1, and relevant sections of IEC/EN 60335. Phase-failure sensitive per IEC 60947-4-1; suitable for isolation per IEC 60947-1.

Frequently asked questions

What compliance standards does the GV2ME106 meet?

It is certified to EN/IEC 60947-2, EN/IEC 60947-4-1, UL 60947-4-1, CSA C22.2 No 60947-4-1, and portions of IEC/EN 60335. It is also phase-failure sensitive and suitable for isolation.
