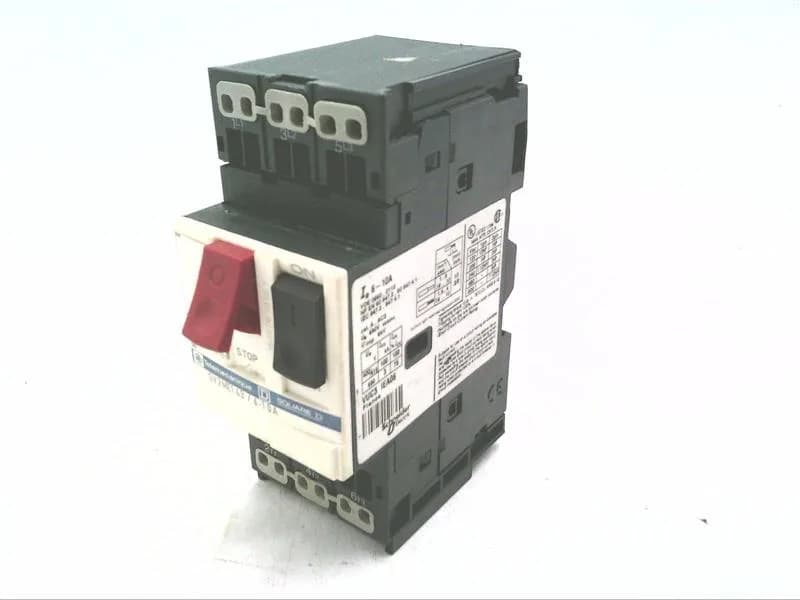

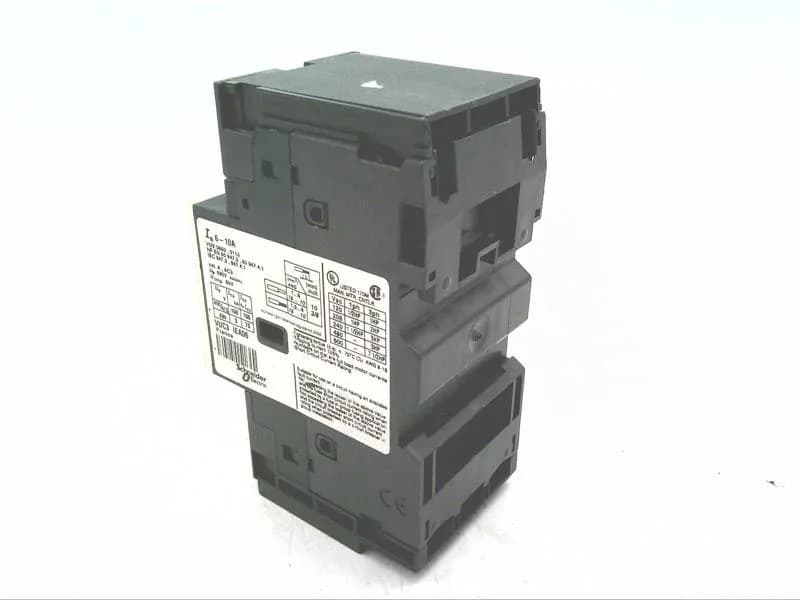

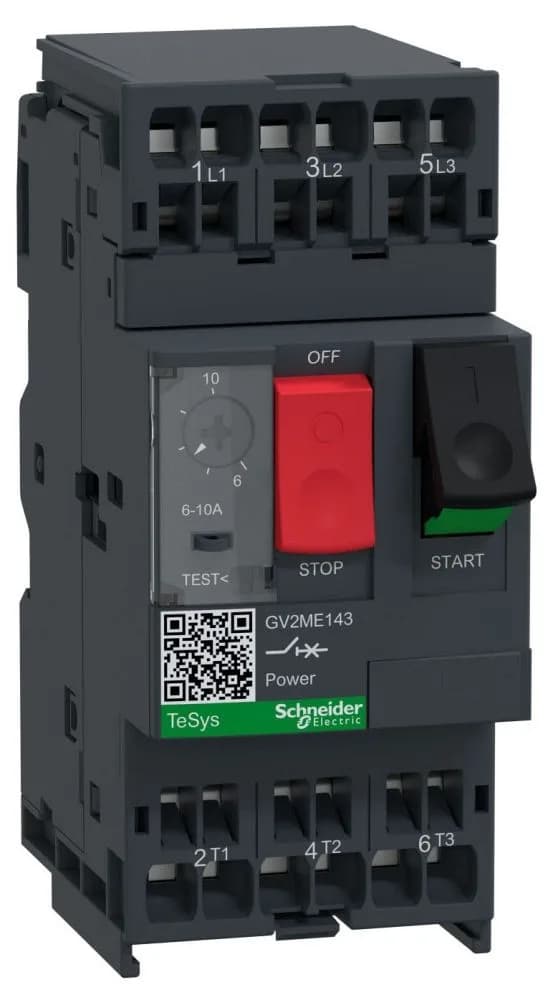

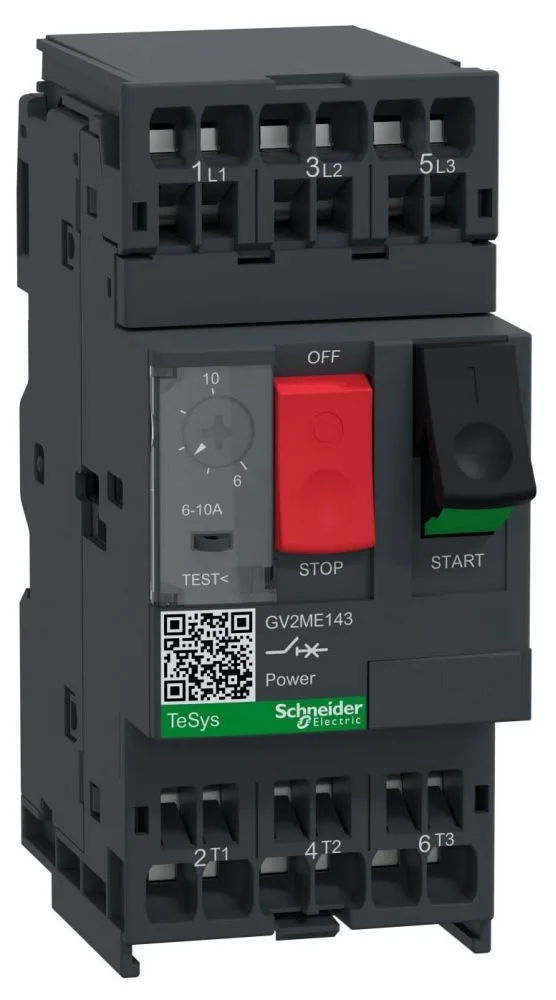

Schneider Electric GV2ME143

GV2ME143 TeSys Deca Motor Circuit Breaker 10 A

MPNGV2ME143
Obsolete

Schneider Electric TeSys Deca GV2ME143 motor circuit breaker, 3-pole, 10 A, thermal-magnetic, 100 kA breaking capacity.

$39.37Ref. price · indicative, final on quote
Schneider Electric GV2ME143 datasheet (PDF)
StockContact for availability
MOQ1 pcs
Sourced new & surplus through independent channelsAuthenticity-screened · ESD-safe packingListing updated Jul 2026
How we verify every order →

Specifications

GV2ME143 key specifications
ParameterValue
Control typePush-button
Network typeAC
Product or component typeMotor circuit breaker
Climatic withstandconforming to IACS E10
Voltage690 V AC 50/60 Hz conforming to IEC 60947-2
[Ue] rated operational voltage690 V AC 50/60 Hz conforming to IEC 60947-2
[Uimp] rated impulse withstand voltage6 kV conforming to IEC 60947-2
Breaking capacity100 kA Icu at 230/240 V AC 50/60 Hz conforming to IEC 60947-2 100 kA Icu at 400/415 V AC 50/60 Hz conforming to IEC 60947-2 15 kA Icu at 440 V AC 50/60 Hz conforming to IEC 60947-2 10 kA Icu at 500 V AC 50/60 Hz conforming to IEC 60947-2 3 kA Icu at 690 V AC 50/60 Hz conforming to IEC 60947-2
Current10 A
Magnetic tripping current149 A
[Ith] conventional free air thermal current10 A conforming to IEC 60947-2
[Ics] rated service short-circuit breaking capacity100 % at 230/240 V AC 50/60 Hz conforming to IEC 60947-2 100 % at 400/415 V AC 50/60 Hz conforming to IEC 60947-2 100 % at 440 V AC 50/60 Hz conforming to IEC 60947-2 100 % at 500 V AC 50/60 Hz conforming to IEC 60947-2 75 % at 690 V AC 50/60 Hz conforming to IEC 60947-2

All specifications

GV2ME143 additional specifications
ParameterValue
Motor power3 kW at 400/415 V AC 50/60 Hz 4 kW at 400/415 V AC 50/60 Hz 4 kW at 500 V AC 50/60 Hz 5.5 kW at 500 V AC 50/60 Hz
Power dissipation per pole2.5 W
Network frequency50/60 Hz conforming to IEC 60947-2
Poles description3P
Phase failure sensitivityYes conforming to IEC 60947-4-1
Rated dutyUninterrupted conforming to IEC 60947-4-1
Utilisation categoryCategory A conforming to IEC 60947-2 AC-3 conforming to IEC 60947-4-1 AC-3e conforming to IEC 60947-4-1
IK degree of protectionIK04
IP degree of protectionIP20 conforming to IEC 60529
Mounting positionHorizontal Vertical
Connections - terminalsPower circuit: spring terminals 2 cable(s) 1...6 mm² - solid Power circuit: spring terminals 2 cable(s) 1.5...4 mm² - flexible without cable end Power circuit: spring terminals 2 cable(s) 1...4 mm² - flexible with cable end
Operating altitude<= 2000 m
Depth78.5 mm
Width45 mm
ColorDark grey
Height101 mm
Product weight0.28 kg
Electrical durability100000 cycles for AC-3 at 415 V In 100000 cycles for AC-3e at 415 V In
Mechanical durability100000 cycles
StandardsEN/IEC 60947-2 EN/IEC 60947-4-1 UL 60947-4-1 CSA C22.2 No 60947-4-1 IEC/EN 60335-2-40:Annex JJ IEC/EN 60335-1:Clause 30.2
RangeTeSys Deca
Fixing mode35 mm symmetrical DIN rail: clipped Panel: screwed (with adaptor plate)
Fire resistance960 °C conforming to IEC 60695-2-11
Device short nameGV2ME
Device applicationMotor protection
Trip unit technologyThermal-magnetic
Mechanical robustnessShocks: 30 Gn for 11 ms Vibrations: 5 Gn, 5...150 Hz
Suitability for isolationYes conforming to IEC 60947-1
Ambient air temperature for storage-40...80 °C
Thermal protection adjustment range6...10 A conforming to IEC 60947-2
Ambient air temperature for operation-20...60 °C

Product details

It uses a thermal-magnetic trip unit for overload and short-circuit protection, with a magnetic trip threshold of 149 A. That rating holds up to 690 V AC with lower values — 15 kA at 440 V, 10 kA at 500 V, 3 kA at 690 V.

Dimensions are 101 mm height, 45 mm width, 78.5 mm depth — slots into a standard enclosure without surprises. Spring terminals accept 1 to 6 mm² solid or 1.5 to 4 mm² flexible wire. Two conductors per terminal allowed, which saves space when looping through.

Compliant with EN/IEC 60947-2, EN/IEC 60947-4-1, UL 60947-4-1, and CSA C22.2 No 60947-4-1. Also tested for glow-wire at 960 °C per IEC 60695-2-11. IP20 protected, IK04 impact resistance.

Frequently asked questions

What is the GV2ME143's depth?

The GV2ME143 has a depth of 78.5 mm.

What range and series does the GV2ME143 belong to?

It is part of the TeSys Deca range, TeSys GV2 series.

What compliance documentation is available for the GV2ME143?

The GV2ME143 is certified to EN/IEC 60947-2, EN/IEC 60947-4-1, UL 60947-4-1, and CSA C22.2 No 60947-4-1. It also meets glow-wire and IP20 requirements.
