Schneider Electric GV2ME20AP — Miniature Circuit Breakers (MCB)

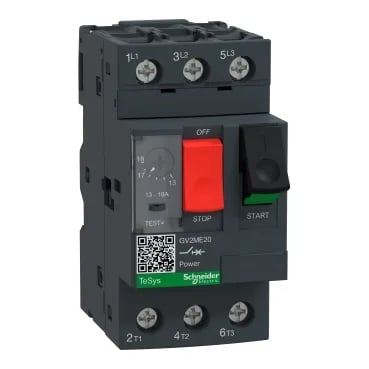

Schneider GV2ME20AP TeSys Motor Circuit Breaker, 18A, 7.5kW

MPNGV2ME20AP
Active

Schneider Electric TeSys Deca GV2ME20AP, motor circuit breaker, 3P, thermal-magnetic, 18 A rated current, 7.5 kW at 400 V AC, breaking capacity 100 kA at 230 V.

Schneider Electric GV2ME20AP datasheet (PDF)
StockContact for availability
Lead timeIn Stock wk
MOQ1 pcs
Sourced new & surplus through independent channelsAuthenticity-screened · ESD-safe packingListing updated Jul 2026
How we verify every order →

Specifications

Identification

GV2ME20AP — Identification
ParameterValue
Product nameTeSys GV2
Product rangeTeSys Deca
Product/component typeMotor circuit breaker
Device applicationMotor protection

Ratings

GV2ME20AP — Ratings
ParameterValue
Rated current (In)18 A
Poles configuration3P
Breaking capacity100 kA Icu at 230/240 V AC 50 Hz conforming to IEC 60947-2 15 kA Icu at 400/415 V AC 50 Hz conforming to IEC 60947-2 8 kA Icu at 440 V AC 50 Hz conforming to IEC 60947-2 6 kA Icu at 500 V AC 50 Hz conforming to IEC 60947-2 3 kA Icu at 690 V AC 50 Hz conforming to IEC 60947-2
Rated operational voltage (Ue)690 V AC 50 Hz conforming to IEC 60947-2
Rated insulation voltage (Ui)690 V AC 50/60 Hz conforming to IEC 60947-2
Rated impulse withstand voltage (Uimp)6 kV conforming to IEC 60947-2
Network type (AC/DC)AC
Network frequency50/60 Hz conforming to IEC 60947-2
Utilisation categoryCategory A conforming to IEC 60947-2 AC-3 conforming to IEC 60947-4-1 AC-3e conforming to IEC 60947-4-1

Protection

GV2ME20AP — Protection
ParameterValue
Trip unit technologyThermal-magnetic
Suitability for isolationYes conforming to IEC 60947-1
Electrical durability (cycles)100000 cycles for AC-3 at 415 V In 100000 cycles for AC-3e at 415 V In
Mechanical durability (cycles)100000 cycles

Mechanical

GV2ME20AP — Mechanical
ParameterValue
Control typePush-button
Terminal connection typePower circuit: screw clamp terminal 2 cable(s) 1...6 mm²solid Power circuit: screw clamp terminal 2 cable(s) 1.5...6 mm²flexible without cable end Power circuit: screw clamp terminal 2 cable(s) 1...4 mm²flexible with cable end
Terminal tightening torque1.7 N.m - on screw clamp terminal
Width45 mm
Height89 mm
Depth78.5 mm

Environmental

GV2ME20AP — Environmental
ParameterValue
Operating ambient temperature-20...60 °C
Storage ambient temperature-40...80 °C
IP degree of protectionIP20 conforming to IEC 60529

Approvals

GV2ME20AP — Approvals
ParameterValue
StandardsEN/IEC 60947-2 EN/IEC 60947-4-1 UL 60947-4-1 CSA C22.2 No 60947-4-1

Electrical

GV2ME20AP — Electrical
ParameterValue
[Ics] rated service short-circuit breaking capacity100 % at 230/240 V AC 50 Hz conforming to IEC 60947-2 50 % at 400/415 V AC 50 Hz conforming to IEC 60947-2 50 % at 440 V AC 50 Hz conforming to IEC 60947-2 75 % at 500 V AC 50 Hz conforming to IEC 60947-2 75 % at 690 V AC 50 Hz conforming to IEC 60947-2

Product details

The GV2ME20AP: Rated at 18 A continuous, it carries motor loads up to 7.5 kW at 400/415 V AC and 15 kW at 690 V AC, making it a fit for medium-horsepower induction motors in pump, fan, and conveyor applications.

Breaking capacity is 100 kA Icu at 230/240 V AC, dropping to 15 kA at 400/415 V and 3 kA at 690 V. At 400 V, that 15 kA SCCR is sufficient for most industrial panel bus faults — verify against your transformer size and upstream protection.

Snaps onto 35 mm symmetrical DIN rail or screws to a panel with an adaptor plate. Power circuit terminals accept up to 6 mm² solid or 4 mm² flexible with ferrule, two cables per clamp. Tightening torque is 1.7 N·m — a standard screwdriver setting, no special tooling.

IP20 finger-safe enclosure, IK04 impact resistance. Certified to EN/IEC 60947-2 (circuit-breaker standard) and EN/IEC 60947-4-1 (motor-starter standard), plus UL 60947-4-1 and CSA C22.2 No 60947-4-1. That dual IEC/UL/CSA coverage means it qualifies for panels destined for North America or Europe without a second-source swap. Phase-failure sensitive per IEC 60947-4-1 — it will trip on loss of one phase, protecting the motor from single-phasing. Electrical durability is 100,000 cycles under AC-3 load at 415 V; mechanical durability matches at 100,000 cycles.

Frequently asked questions

What is the GV2ME20AP's depth?

The depth is 78.5 mm, which is the dimension from the DIN-rail mounting face to the front of the enclosure.

What compliance documentation does Schneider provide for the GV2ME20AP?

The part carries certifications to EN/IEC 60947-2, EN/IEC 60947-4-1, UL 60947-4-1, and CSA C22.2 No 60947-4-1. Schneider provides the corresponding declarations of conformity and UL/CSA file numbers for these standards.

What motor power does the GV2ME20AP cover?

It covers 7.5 kW at 400/415 V AC, 9 kW at 500 V AC, and 15 kW at 690 V AC, all at 50 Hz.
