GV2ME03A
Schneider Electric
Dark greyIP20Motor protection
Ref. price$168.14
Lead time on requestGet quote

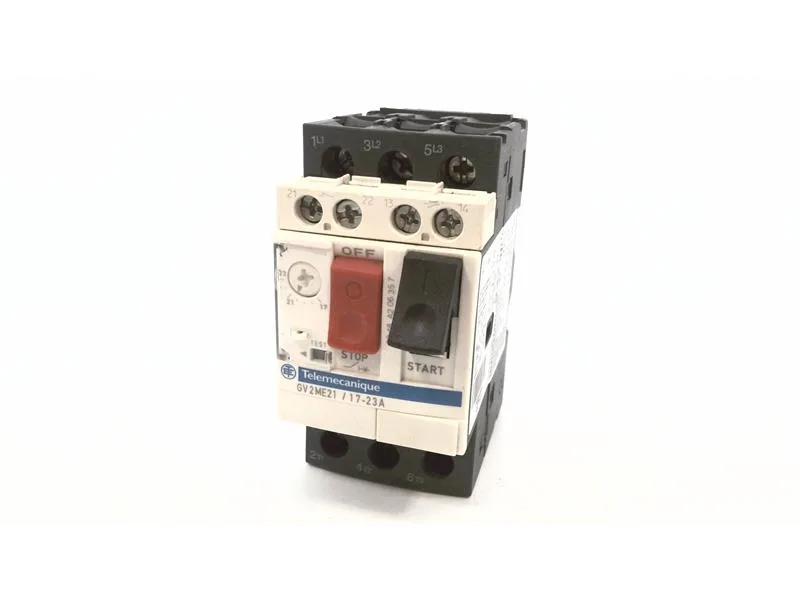

Schneider Electric GV2M Miniature Breakers Series
171 variants · Schneider Electric
About the Schneider Electric GV2M Miniature Breakers Series
The Schneider Electric GV2M Miniature Breakers Series series groups 171 related part numbers, each listed with full specifications, a datasheet where available, and an RFQ option. The listed variants share a common application of Motor protection, color of Dark grey and control type of Push-button. Variants differ by thermal protection adjustment range, so you can match the exact thermal protection adjustment range your application requires using the selection guide below.
Select a variant by
- Thermal protection adjustment range
- 0.25–0.4 A · 0.4–63 A · 0.63–1 A · 1–1.6 A · 1.6–2.5 A · 2.5–4 A · 4–6.3 A · 6–10 A · 9–14 A · 13–18 A · 17–23 A · 20–25 A
Shared specifications
- Application
- Motor protection
- Color
- Dark grey
- Control type
- Push-button
- Depth
- 3.09 in (78.5 mm)
- Electrical life cycles
- 100000 cycles AC-3 415 V In 100000 cycles AC-3e 415 V In
- Height
- 4.0 in (101 mm)
- IP rating
- IP20
- Main product or component type
- Motor circuit breaker
- Mechanical life cycles
- 100000 cycles
- Operating temperature
- -4...140 °F (-20...60 °C)
- Storage temperature
- -40...176 °F (-40...80 °C)
- Temp operating max
- 60 °C
Variant comparison
| Parameter | GV2ME16A | GV2ME20A | GV2ME21A | GV2ME22A | GV2ME04A | GV2ME05A |
|---|---|---|---|---|---|---|
| Thermal protection adjustment range | 9–14 A | 13–18 A | 17–23 A | 20–25 A | 0.4–63 A | 0.63–1 A |
Request a quote on any Schneider Electric GV2M Miniature Breakers Series part number and we confirm price, availability and lead time per line — including end-of-life and allocation-constrained variants.
