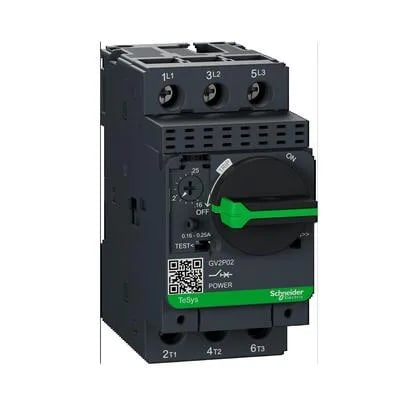

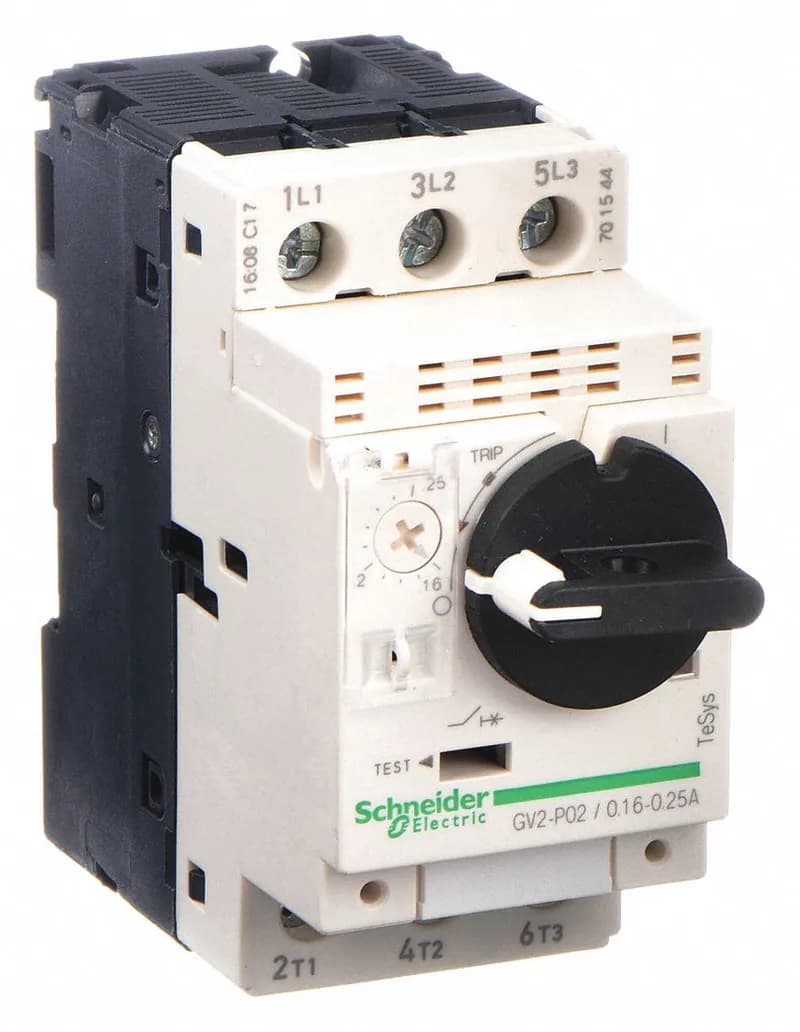

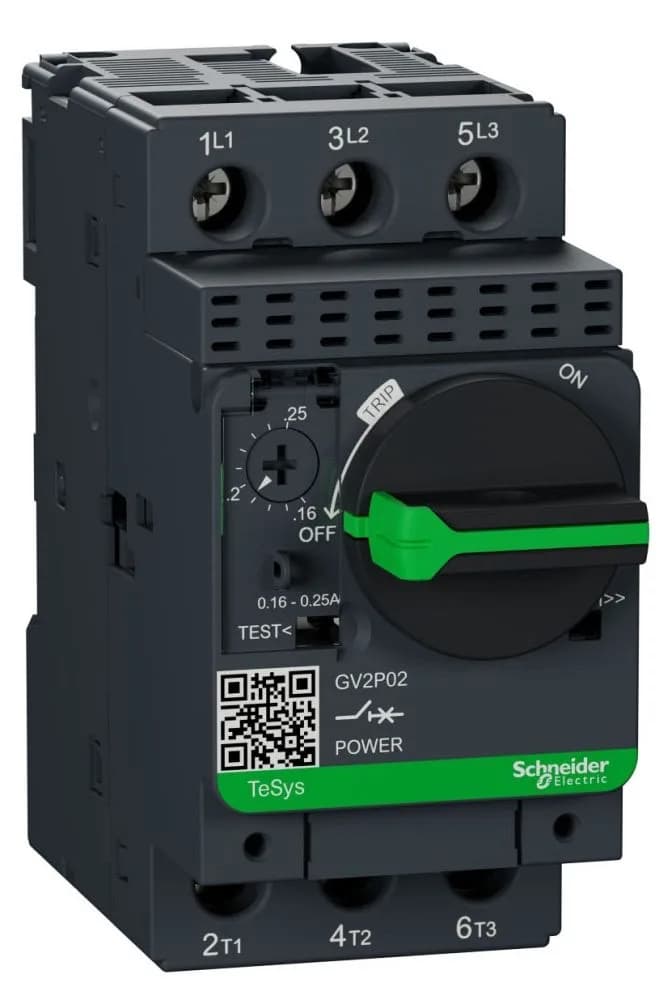

Schneider Electric GV2P02

Schneider GV2P02 TeSys GV2 Motor Circuit Breaker, 0.25 A

MPNGV2P02
Active

Schneider Electric TeSys Deca series, GV2P02, 3-pole motor circuit breaker, thermal-magnetic trip, 0.25 A rated current, 100 kA breaking capacity at 400 V AC.

$31.75Ref. price · indicative, final on quote
Schneider Electric GV2P02 datasheet (PDF)
StockContact for availability
MOQ1 pcs
Sourced new & surplus through independent channelsAuthenticity-screened · ESD-safe packingListing updated Jul 2026
How we verify every order →

Specifications

GV2P02 key specifications
ParameterValue
Control typeRotary handle
Network typeAC
Product or component typeMotor circuit breaker
Climatic withstandIACS E10
Voltage690 V AC 50/60 Hz IEC 60947-2
[Ue] rated operational voltage690 V AC 50/60 Hz IEC 60947-2
[Uimp] rated impulse withstand voltage6 kV IEC 60947-2
Breaking capacity100 kA Icu 230/240 V AC 50/60 Hz IEC 60947-2 100 kA Icu 400/415 V AC 50/60 Hz IEC 60947-2 100 kA Icu 440 V AC 50/60 Hz IEC 60947-2 100 kA Icu 500 V AC 50/60 Hz IEC 60947-2 100 kA Icu 690 V AC 50/60 Hz IEC 60947-2
Line rated current0.25 A
Magnetic tripping current3.08 A
[Ith] conventional free air thermal current0.25 A IEC 60947-2
[Ics] rated service short-circuit breaking capacity100 % 230/240 V AC 50/60 Hz IEC 60947-2 100 % 400/415 V AC 50/60 Hz IEC 60947-2 100 % 440 V AC 50/60 Hz IEC 60947-2 100 % 500 V AC 50/60 Hz IEC 60947-2 100 % 690 V AC 50/60 Hz IEC 60947-2

All specifications

GV2P02 additional specifications
ParameterValue
Motor power0.06 kW 400/415 V AC 50/60 Hz
Power dissipation per pole2.5 W
Network frequency50/60 Hz IEC 60947-2
Poles description3P
Phase failure sensitivityYes IEC 60947-4-1
Rated dutyUninterrupted IEC 60947-4-1
Utilisation categoryCategory A IEC 60947-2 AC-3 IEC 60947-4-1 AC-3e IEC 60947-4-1
IK degree of protectionIK04
IP degree of protectionIP20 IEC 60529
Mounting positionHorizontal Vertical
Connections - terminalsPower circuit screw clamp terminal 2 0.002...0.009 in² (1...6 mm²)solid Power circuit screw clamp terminal 2 0.002...0.009 in² (1.5...6 mm²)flexible without cable end Power circuit screw clamp terminal 2 0.002...0.006 in² (1...4 mm²)flexible with cable end
Operating altitude<= 6561.68 ft (2000 m)
ColorDark grey
Depth3.8 in (97 mm)
Width1.8 in (45 mm)
Height3.5 in (89 mm)
Electrical durability100000 cycles AC-3 415 V In 100000 cycles AC-3e 415 V In
Mechanical durability100000 cycles
StandardsEN/IEC 60947-2 EN/IEC 60947-4-1 UL 60947-4-1 CSA C22.2 No 60947-4-1 IEC/EN 60335-2-40:Annex JJ IEC/EN 60335-1:Clause 30.2
RangeTeSys Deca
CategoryUS10I1122367
Fixing mode35 mm symmetrical DIN rail clipped Panel screwed with 2 x M4 screws)
Fire resistance1760 °F (960 °C) IEC 60695-2-11
Device short nameGV2P
Tightening torque15.05 lbf.in (1.7 N.m) screw clamp terminal
Device applicationMotor protection
Trip unit technologyThermal-magnetic
Mechanical robustnessShocks 30 Gn for 11 ms Vibrations 5 Gn, 5...150 Hz
Suitability for isolationYes IEC 60947-1
Ambient air temperature for storage-40...176 °F (-40...80 °C)
Thermal protection adjustment range0.16...0.25 A IEC 60947-2
Ambient air temperature for operation-4...140 °F (-20...60 °C)

Product details

GV2P02: Schneider's TeSys GV2 motor circuit breaker. Three poles, 0.25 A line rated current, thermal-magnetic trip – the magnetic pickup is fixed at 3.08 A. Rated for motor protection per IEC 60947-4-1 with phase failure sensitivity and isolation suitability per IEC 60947-1. IP20 enclosure, dark grey housing. Screw-clamp terminals accept 1 to 6 mm² solid or 1.5–6 mm² flexible. Power dissipation is 2.5 W per pole at rated load.

Compliance stack: UL 60947-4-1, CSA C22.2 No 60947-4-1, EN/IEC 60947-2 and -4-1. Also meets IEC/EN 60335-2-40 (Annex JJ) and IEC/EN 60335-1 (Clause 30.2). Fire resistance tested to 960 °C per IEC 60695-2-11.

Frequently asked questions

What are the key electrical ratings of GV2P02?

Line rated current 0.25 A, magnetic trip at 3.08 A, breaking capacity 100 kA at 400 V AC, rated insulation voltage 690 V AC. Suitable for motor loads up to 0.06 kW at 400 V.

What standards does GV2P02 comply with?

Complies with IEC 60947-2 and -4-1, UL 60947-4-1, CSA C22.2 No 60947-4-1, plus clauses of IEC/EN 60335 for appliance applications.

What is the mounting and enclosure rating?

Mounts on 35 mm DIN rail or direct panel with M4 screws. IP20 finger-safe enclosure, dark grey housing.
