Schneider Electric GV2P Series

27 variants · Schneider Electric

About the Schneider Electric GV2P Series

The Schneider Electric GV2P Series series groups 27 related part numbers, each listed with full specifications, a datasheet where available, and an RFQ option. The listed variants share a common application of Motor protection, color of Dark grey and control type of Rotary handle. Variants differ by thermal protection adjustment range, so you can match the exact thermal protection adjustment range your application requires using the selection guide below.

Select a variant by

Thermal protection adjustment range: 0.1–0.16 A · 0.16–0.25 A · 0.25–0.4 A · 0.4–0.63 A · 0.63–1 A · 1.6–2.5 A · 2.5–4 A · 6–10 A · 9–14 A · 17–23 A · 20–25 A · 24–32 A

Shared specifications

Application: Motor protection
Color: Dark grey
Control type: Rotary handle
Depth: 3.8 in (97 mm)
Electrical life cycles: 100000 cycles AC-3 415 V In 100000 cycles AC-3e 415 V In
Height: 3.5 in (89 mm)
IP rating: IP20
Main product or component type: Motor circuit breaker
Mechanical life cycles: 100000 cycles
Operating temperature: -4...140 °F (-20...60 °C)
Storage temperature: -40...176 °F (-40...80 °C)
Temp operating max: 60 °C

Variant comparison

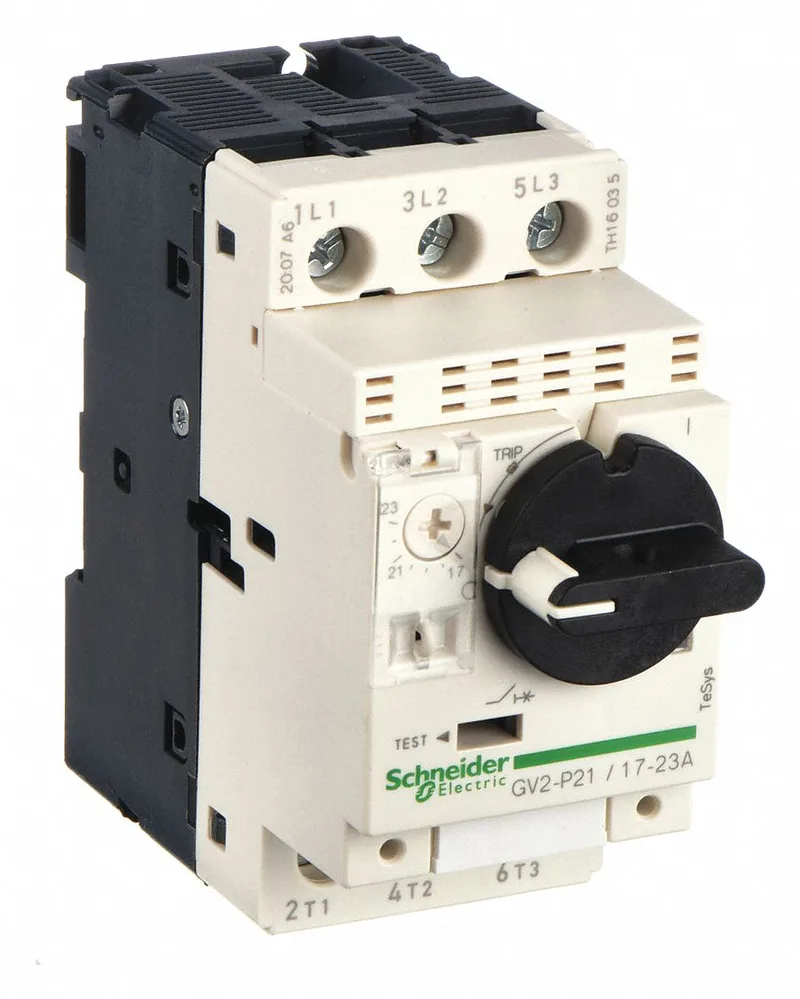

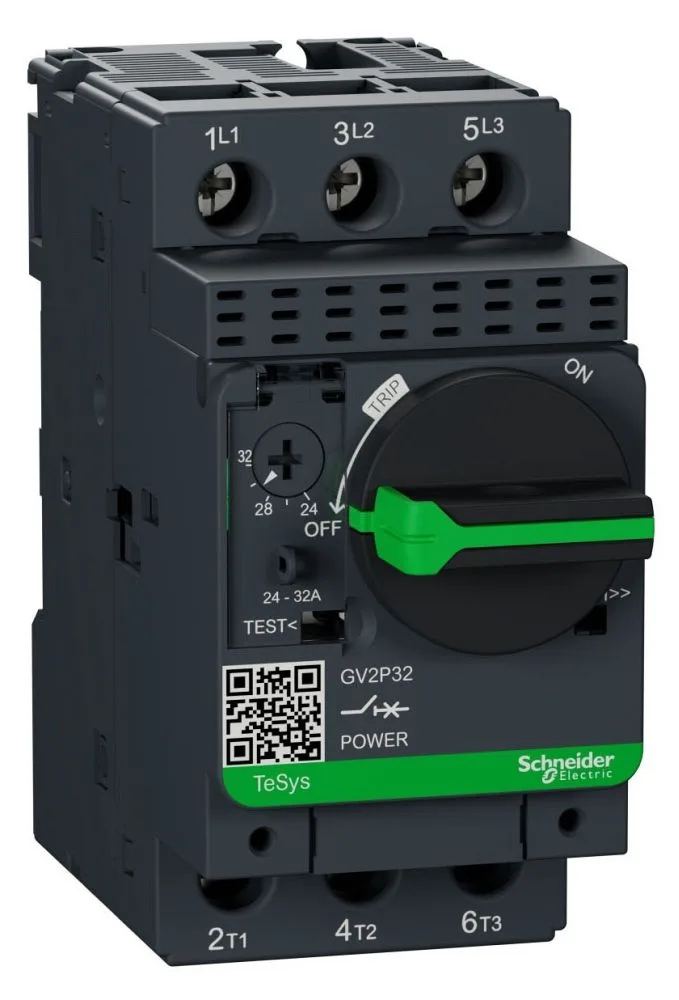

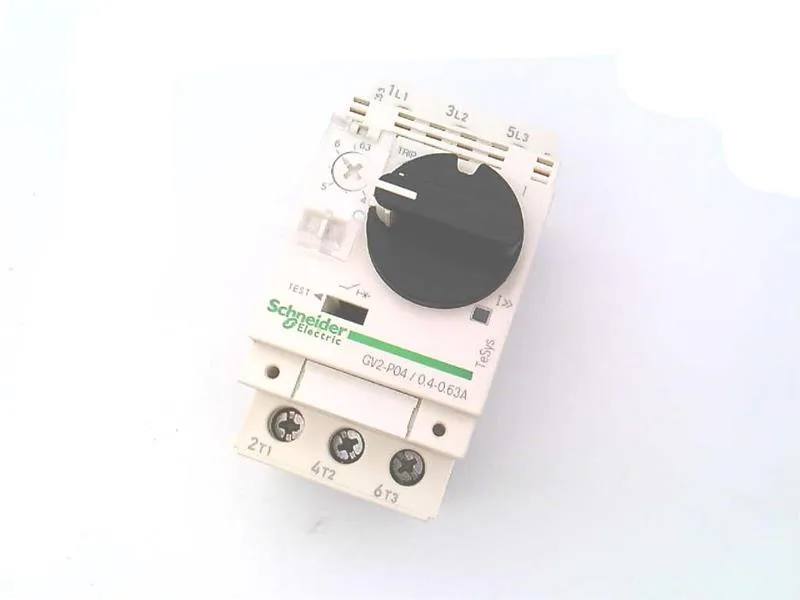

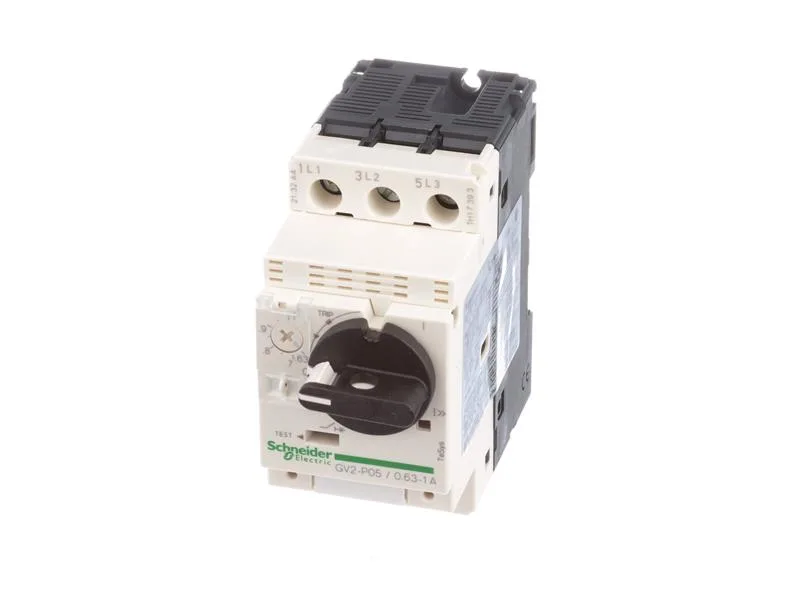

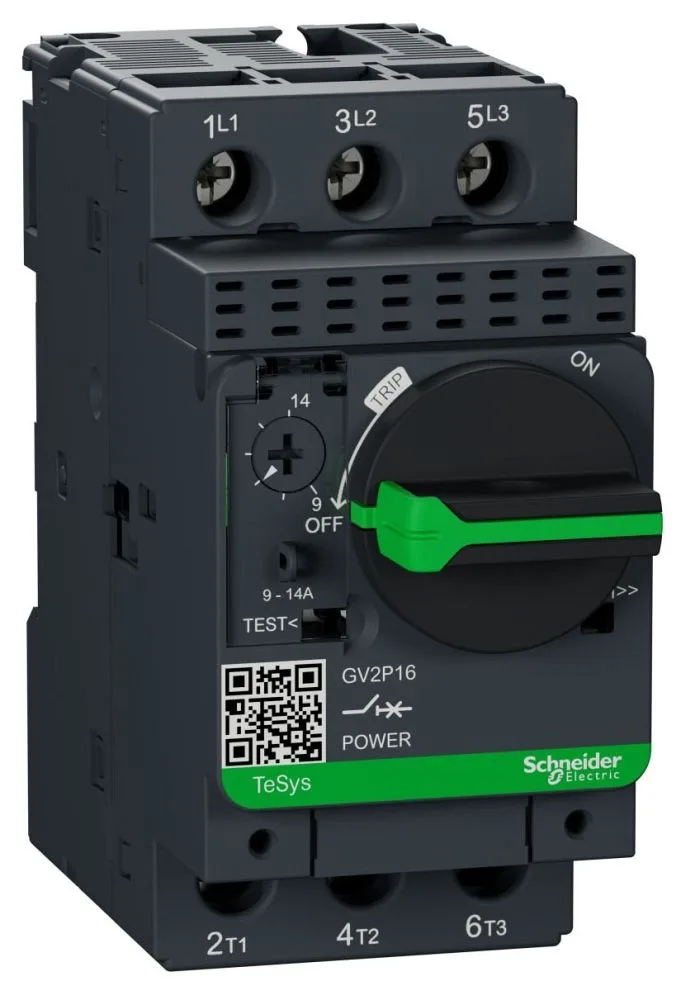

Parameter	GV2P21	GV2P16	GV2P22	GV2P32	GV2P04	GV2P05
Thermal protection adjustment range	17–23 A	9–14 A	20–25 A	24–32 A	0.4–0.63 A	0.63–1 A

Request a quote on any Schneider Electric GV2P Series part number and we confirm price, availability and lead time per line — including end-of-life and allocation-constrained variants.
