The Schneider GV2P03 is a TeSys Deca motor circuit breaker rated for 0.4 A line current on a 3-pole, 400/415 V AC system. The thermal-magnetic trip unit gives you standard motor overload plus magnetic short-circuit protection, and the IP20 enclosure keeps dust out of the mechanism.

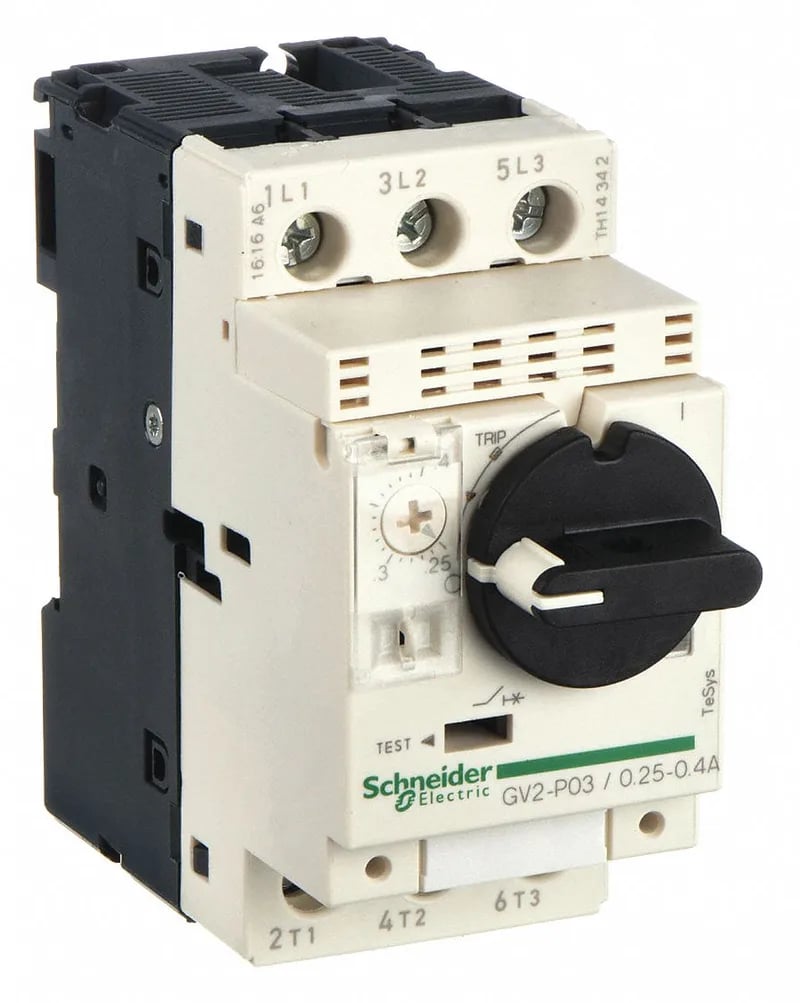

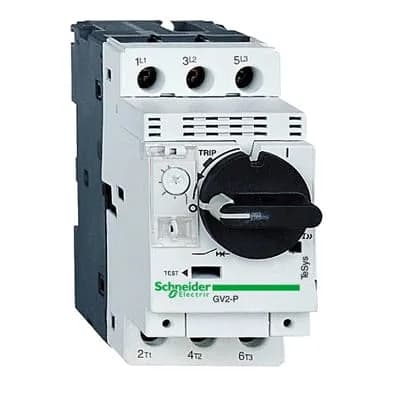

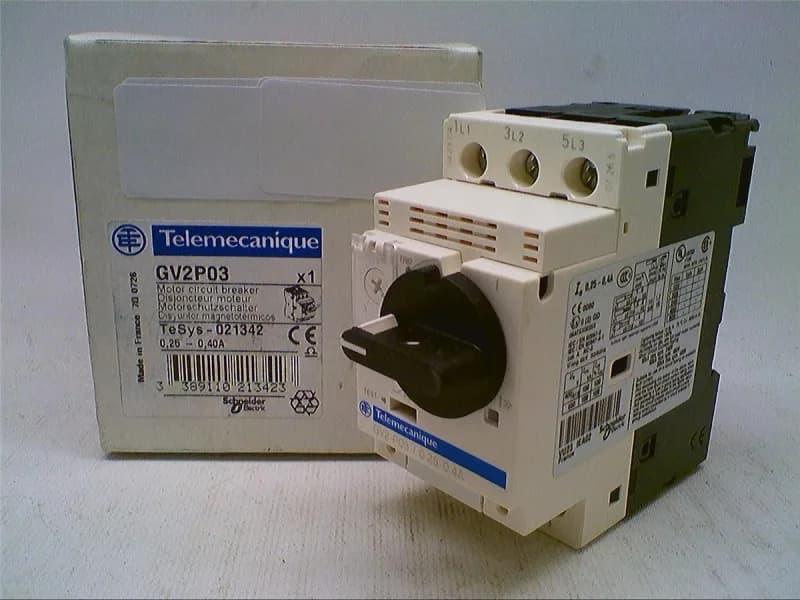

Schneider TeSys GV2P03 Motor Circuit Breaker, 0.4A, 3-Pole
MPNGV2P03
Active
Schneider TeSys Deca GV2P03 motor circuit breaker, 0.4 A, 3-pole, thermal-magnetic, 100 kA breaking capacity, IP20, dark grey.
$31.75Ref. price · indicative, final on quote
StockContact for availability
MOQ1 pcs
Sourced new & surplus through independent channelsAuthenticity-screened · ESD-safe packingListing updated Jul 2026
How we verify every order →Specifications
| Parameter | Value |
|---|---|
| Control type | Rotary handle |
| Network type | AC |
| Product or component type | Motor circuit breaker |
| Climatic withstand | IACS E10 |
| Voltage | 690 V AC 50/60 Hz IEC 60947-2 |
| [Ue] rated operational voltage | 690 V AC 50/60 Hz IEC 60947-2 |
| [Uimp] rated impulse withstand voltage | 6 kV IEC 60947-2 |
| Breaking capacity | 100 kA Icu 230/240 V AC 50/60 Hz IEC 60947-2 100 kA Icu 400/415 V AC 50/60 Hz IEC 60947-2 100 kA Icu 440 V AC 50/60 Hz IEC 60947-2 100 kA Icu 500 V AC 50/60 Hz IEC 60947-2 100 kA Icu 690 V AC 50/60 Hz IEC 60947-2 |
| Line rated current | 0.4 A |
| Magnetic tripping current | 5.8 A |
| [Ith] conventional free air thermal current | 0.4 A IEC 60947-2 |
| [Ics] rated service short-circuit breaking capacity | 100 % 230/240 V AC 50/60 Hz IEC 60947-2 100 % 400/415 V AC 50/60 Hz IEC 60947-2 100 % 440 V AC 50/60 Hz IEC 60947-2 100 % 500 V AC 50/60 Hz IEC 60947-2 100 % 690 V AC 50/60 Hz IEC 60947-2 |
All specifications
| Parameter | Value |
|---|---|
| Motor power | 0.09 kW 400/415 V AC 50/60 Hz |
| Power dissipation per pole | 2.5 W |
| Network frequency | 50/60 Hz IEC 60947-2 |
| Poles description | 3P |
| Phase failure sensitivity | Yes IEC 60947-4-1 |
| Rated duty | Uninterrupted IEC 60947-4-1 |
| Utilisation category | Category A IEC 60947-2 AC-3 IEC 60947-4-1 AC-3e IEC 60947-4-1 |
| IK degree of protection | IK04 |
| IP degree of protection | IP20 IEC 60529 |
| Mounting position | Horizontal Vertical |
| Connections - terminals | Power circuit screw clamp terminal 2 0.002...0.009 in² (1...6 mm²)solid Power circuit screw clamp terminal 2 0.002...0.009 in² (1.5...6 mm²)flexible without cable end Power circuit screw clamp terminal 2 0.002...0.006 in² (1...4 mm²)flexible with cable end |
| Operating altitude | <= 6561.68 ft (2000 m) |
| Color | Dark grey |
| Depth | 3.8 in (97 mm) |
| Width | 1.8 in (45 mm) |
| Height | 3.5 in (89 mm) |
| Electrical durability | 100000 cycles AC-3 415 V In 100000 cycles AC-3e 415 V In |
| Mechanical durability | 100000 cycles |
| Standards | EN/IEC 60947-2 EN/IEC 60947-4-1 UL 60947-4-1 CSA C22.2 No 60947-4-1 IEC/EN 60335-2-40:Annex JJ IEC/EN 60335-1:Clause 30.2 |
| Range | TeSys Deca |
| Category | US10I1122367 |
| Fixing mode | 35 mm symmetrical DIN rail clipped Panel screwed with 2 x M4 screws) |
| Fire resistance | 1760 °F (960 °C) IEC 60695-2-11 |
| Device short name | GV2P |
| Tightening torque | 15.05 lbf.in (1.7 N.m) screw clamp terminal |
| Device application | Motor protection |
| Trip unit technology | Thermal-magnetic |
| Mechanical robustness | Shocks 30 Gn for 11 ms Vibrations 5 Gn, 5...150 Hz |
| Suitability for isolation | Yes IEC 60947-1 |
| Ambient air temperature for storage | -40...176 °F (-40...80 °C) |
| Thermal protection adjustment range | 0.25...0.4 A IEC 60947-2 |
| Ambient air temperature for operation | -4...140 °F (-20...60 °C) |
Product details
Frequently asked questions
What is the color of the GV2P03?
The GV2P03 is dark grey.
What is the depth of the GV2P03?
The depth is 3.8 inches (97 mm).
What compliance standards does the GV2P03 meet?
It meets EN/IEC 60947-2, EN/IEC 60947-4-1, UL 60947-4-1, CSA C22.2 No 60947-4-1, and IEC/EN 60335-2-40 Annex JJ.
