Schneider Electric GV2P16

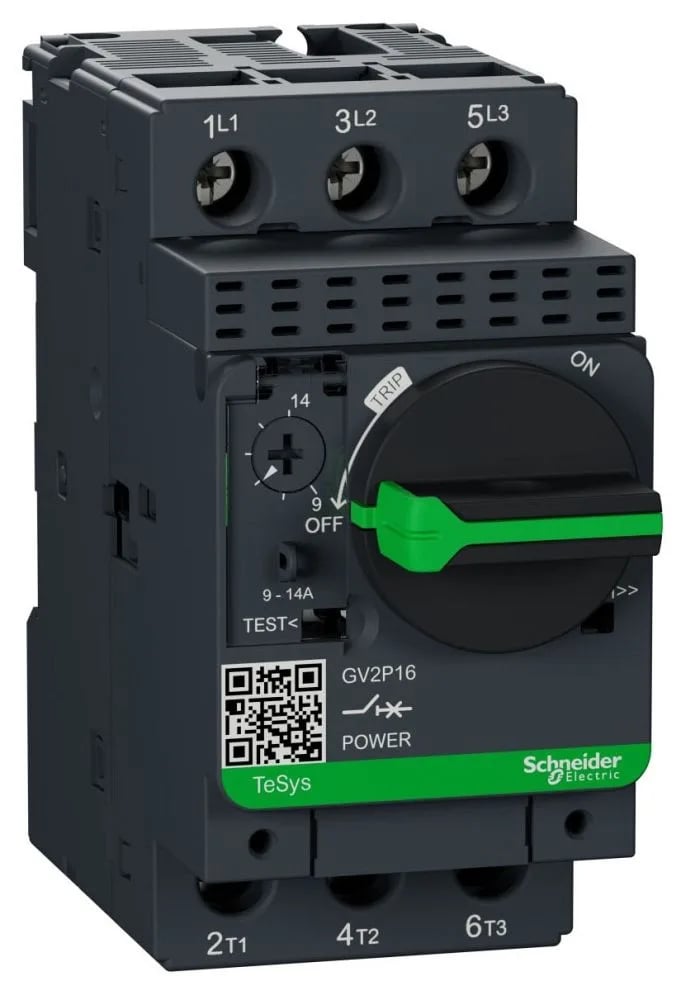

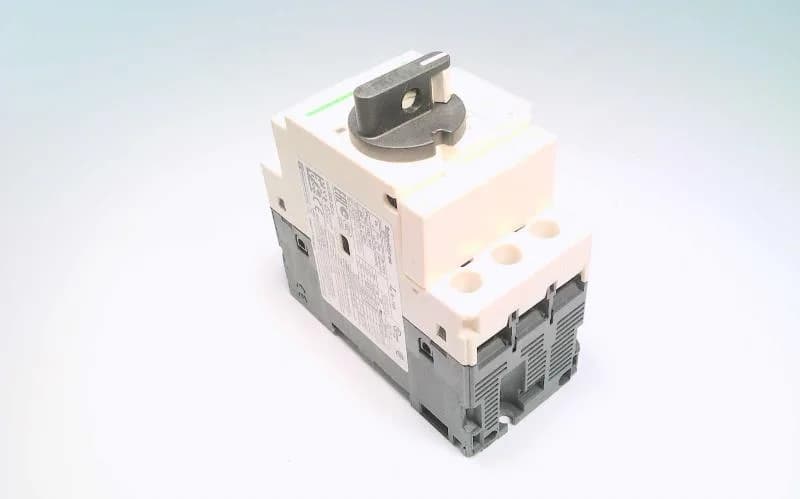

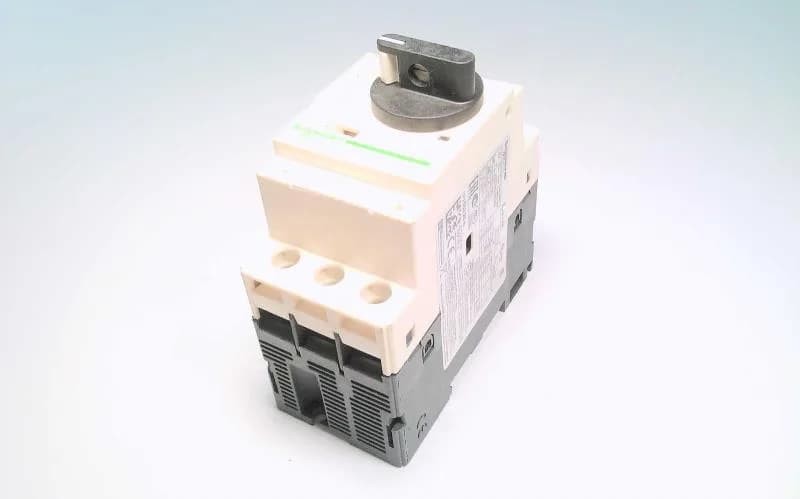

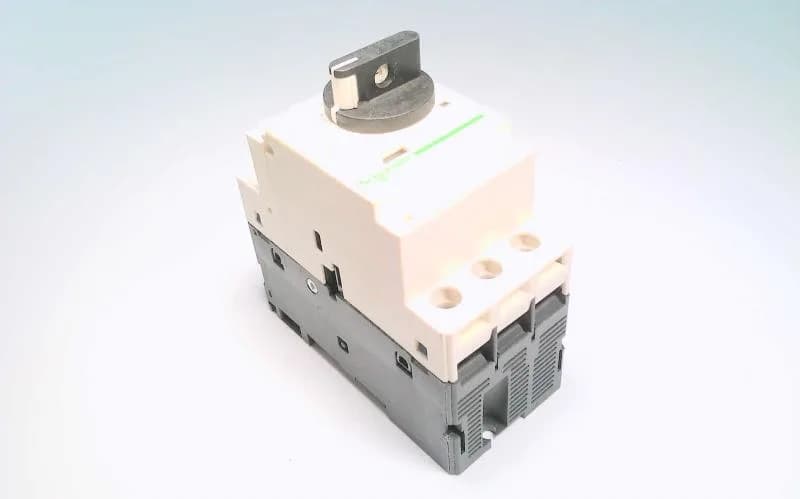

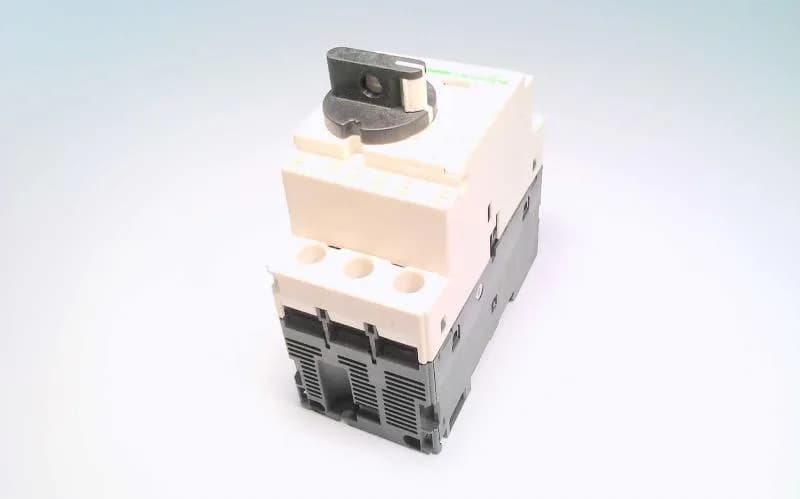

Schneider GV2P16 TeSys Motor Circuit Breaker, 14A

MPNGV2P16
Active

Schneider Electric TeSys Deca GV2P16, 3-pole motor circuit breaker, 14 A, 100 kA breaking capacity at 400 V AC, thermal-magnetic trip.

$36.83Ref. price · indicative, final on quote
Schneider Electric GV2P16 datasheet (PDF)
StockContact for availability
MOQ1 pcs
Sourced new & surplus through independent channelsAuthenticity-screened · ESD-safe packingListing updated Jul 2026
How we verify every order →

Specifications

GV2P16 key specifications
ParameterValue
Control typeRotary handle
Network typeAC
Product or component typeMotor circuit breaker
Climatic withstandIACS E10
Voltage690 V AC 50/60 Hz IEC 60947-2
[Ue] rated operational voltage690 V AC 50/60 Hz IEC 60947-2
[Uimp] rated impulse withstand voltage6 kV IEC 60947-2
Breaking capacity100 kA Icu 230/240 V AC 50/60 Hz IEC 60947-2 100 kA Icu 400/415 V AC 50/60 Hz IEC 60947-2 50 kA Icu 440 V AC 50/60 Hz IEC 60947-2 42 kA Icu 500 V AC 50/60 Hz IEC 60947-2 6 kA Icu 690 V AC 50/60 Hz IEC 60947-2
Line rated current14 A
Magnetic tripping current253.4 A
[Ith] conventional free air thermal current14 A IEC 60947-2
[Ics] rated service short-circuit breaking capacity100 % 230/240 V AC 50/60 Hz IEC 60947-2 100 % 400/415 V AC 50/60 Hz IEC 60947-2 75 % 440 V AC 50/60 Hz IEC 60947-2 75 % 500 V AC 50/60 Hz IEC 60947-2 100 % 690 V AC 50/60 Hz IEC 60947-2

All specifications

GV2P16 additional specifications
ParameterValue
Motor power5.5 kW 400/415 V AC 50/60 Hz 7.5 kW 500 V AC 50/60 Hz 9 kW 690 V AC 50/60 Hz 11 kW 690 V AC 50/60 Hz
Power dissipation per pole2.5 W
Network frequency50/60 Hz IEC 60947-2
Poles description3P
Phase failure sensitivityYes IEC 60947-4-1
Rated dutyUninterrupted IEC 60947-4-1
Utilisation categoryCategory A IEC 60947-2 AC-3 IEC 60947-4-1 AC-3e IEC 60947-4-1
IK degree of protectionIK04
IP degree of protectionIP20 IEC 60529
Mounting positionHorizontal Vertical
Connections - terminalsPower circuit screw clamp terminal 2 0.002...0.009 in² (1...6 mm²)solid Power circuit screw clamp terminal 2 0.002...0.009 in² (1.5...6 mm²)flexible without cable end Power circuit screw clamp terminal 2 0.002...0.006 in² (1...4 mm²)flexible with cable end
Operating altitude<= 6561.68 ft (2000 m)
ColorDark grey
Depth3.8 in (97 mm)
Width1.8 in (45 mm)
Height3.5 in (89 mm)
Electrical durability100000 cycles AC-3 415 V In 100000 cycles AC-3e 415 V In
Mechanical durability100000 cycles
StandardsEN/IEC 60947-2 EN/IEC 60947-4-1 UL 60947-4-1 CSA C22.2 No 60947-4-1 IEC/EN 60335-2-40:Annex JJ IEC/EN 60335-1:Clause 30.2
RangeTeSys Deca
CategoryUS10I1122367
Fixing mode35 mm symmetrical DIN rail clipped Panel screwed with 2 x M4 screws)
Fire resistance1760 °F (960 °C) IEC 60695-2-11
Device short nameGV2P
Tightening torque15.05 lbf.in (1.7 N.m) screw clamp terminal
Device applicationMotor protection
Trip unit technologyThermal-magnetic
Mechanical robustnessShocks 30 Gn for 11 ms Vibrations 5 Gn, 5...150 Hz
Suitability for isolationYes IEC 60947-1
Ambient air temperature for storage-40...176 °F (-40...80 °C)
Thermal protection adjustment range9...14 A IEC 60947-2
Ambient air temperature for operation-4...140 °F (-20...60 °C)

Product details

Sizing and Protection Data

The GV2P16 is a 3-pole motor circuit breaker in the TeSys Deca range, rated 14 A continuous uninterrupted duty per IEC 60947-4-1. The thermal-magnetic trip unit provides motor protection with phase failure sensitivity, and magnetic tripping is set at 253.4 A. Breaking capacity reaches 100 kA at 400/415 V AC under IEC 60947-2, dropping to 50 kA at 440 V and 42 kA at 500 V. This SCCR range supports high-fault panels while maintaining selectivity with upstream devices. The unit is suitable for isolation per IEC 60947-1 and carries an IP20 enclosure rating with IK04 impact resistance.

Compliance documentation covers EN/IEC 60947-2, EN/IEC 60947-4-1, UL 60947-4-1, and CSA C22.2 No 60947-4-1, plus supplementary IEC/EN standards for fire resistance and abnormal heat. Certifications are available per standard request.

Frequently asked questions

What is GV2P16's listed color?

Dark grey.

What is GV2P16's depth?

3.8 inches (97 mm).

What compliance documentation does this brand provide for GV2P16?

Standards include EN/IEC 60947-2, EN/IEC 60947-4-1, UL 60947-4-1, CSA C22.2 No 60947-4-1, and IEC/EN 60335 relevant clauses.

MPN
GV2P16
