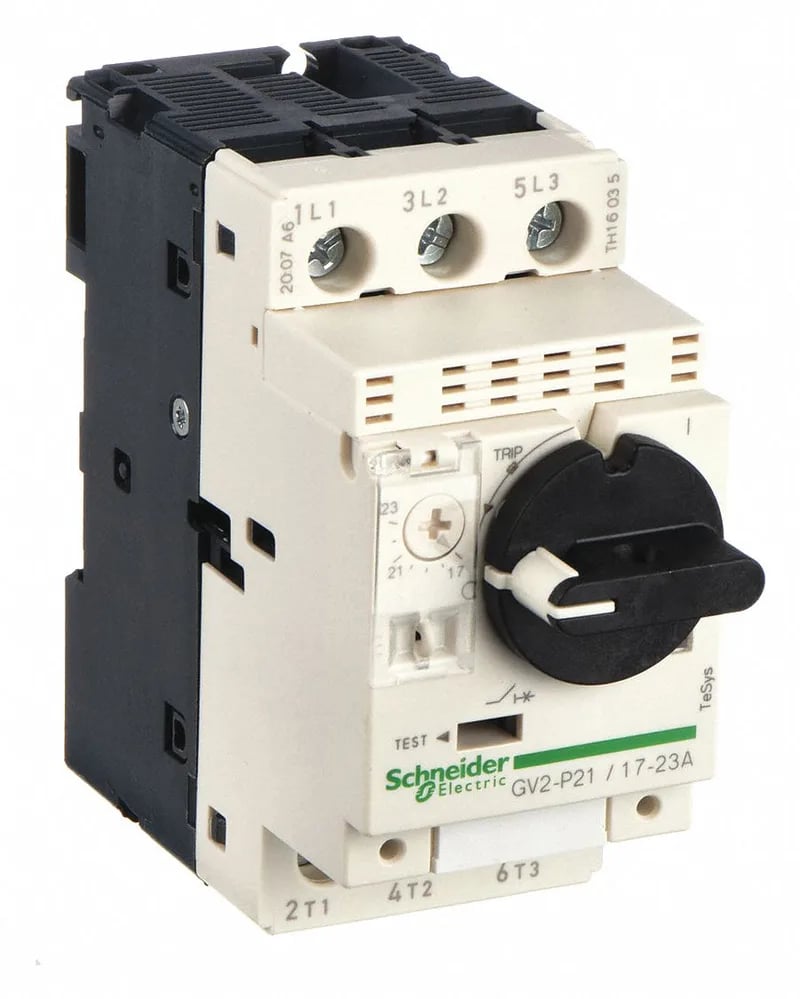

Schneider Electric GV2P21

Schneider GV2P21 23A Motor Circuit Breaker, TeSys Deca

MPNGV2P21
Active

Schneider Electric TeSys Deca GV2P21 motor circuit breaker, 23 A, 3-pole, thermal-magnetic, IP20.

$41.15Ref. price · indicative, final on quote
Schneider Electric GV2P21 datasheet (PDF)
StockContact for availability
MOQ1 pcs
Sourced new & surplus through independent channelsAuthenticity-screened · ESD-safe packingListing updated Jul 2026
How we verify every order →

Specifications

GV2P21 key specifications
ParameterValue
Control typeRotary handle
Network typeAC
Product or component typeMotor circuit breaker
Climatic withstandIACS E10
Voltage690 V AC 50/60 Hz IEC 60947-2
[Ue] rated operational voltage690 V AC 50/60 Hz IEC 60947-2
[Uimp] rated impulse withstand voltage6 kV IEC 60947-2
Breaking capacity100 kA Icu 230/240 V AC 50/60 Hz IEC 60947-2 50 kA Icu 400/415 V AC 50/60 Hz IEC 60947-2 20 kA Icu 440 V AC 50/60 Hz IEC 60947-2 10 kA Icu 500 V AC 50/60 Hz IEC 60947-2 4 kA Icu 690 V AC 50/60 Hz IEC 60947-2
Line rated current23 A
Magnetic tripping current341 A
[Ith] conventional free air thermal current23 A IEC 60947-2
[Ics] rated service short-circuit breaking capacity100 % 230/240 V AC 50/60 Hz IEC 60947-2 50 % 400/415 V AC 50/60 Hz IEC 60947-2 75 % 440 V AC 50/60 Hz IEC 60947-2 75 % 500 V AC 50/60 Hz IEC 60947-2 100 % 690 V AC 50/60 Hz IEC 60947-2

All specifications

GV2P21 additional specifications
ParameterValue
Motor power9 kW 400/415 V AC 50/60 Hz 11 kW 500 V AC 50/60 Hz 18.5 kW 690 V AC 50/60 Hz
Power dissipation per pole2.5 W
Network frequency50/60 Hz IEC 60947-2
Poles description3P
Phase failure sensitivityYes IEC 60947-4-1
Rated dutyUninterrupted IEC 60947-4-1
Utilisation categoryCategory A IEC 60947-2 AC-3 IEC 60947-4-1 AC-3e IEC 60947-4-1
IK degree of protectionIK04
IP degree of protectionIP20 IEC 60529
Mounting positionHorizontal Vertical
Connections - terminalsPower circuit screw clamp terminal 2 0.002...0.009 in² (1...6 mm²)solid Power circuit screw clamp terminal 2 0.002...0.009 in² (1.5...6 mm²)flexible without cable end Power circuit screw clamp terminal 2 0.002...0.006 in² (1...4 mm²)flexible with cable end
Operating altitude<= 6561.68 ft (2000 m)
ColorDark grey
Depth3.8 in (97 mm)
Width1.8 in (45 mm)
Height3.5 in (89 mm)
Electrical durability100000 cycles AC-3 415 V In 100000 cycles AC-3e 415 V In
Mechanical durability100000 cycles
StandardsEN/IEC 60947-2 EN/IEC 60947-4-1 UL 60947-4-1 CSA C22.2 No 60947-4-1 IEC/EN 60335-2-40:Annex JJ IEC/EN 60335-1:Clause 30.2
RangeTeSys Deca
CategoryUS10I1122367
Fixing mode35 mm symmetrical DIN rail clipped Panel screwed with 2 x M4 screws)
Fire resistance1760 °F (960 °C) IEC 60695-2-11
Device short nameGV2P
Tightening torque15.05 lbf.in (1.7 N.m) screw clamp terminal
Device applicationMotor protection
Trip unit technologyThermal-magnetic
Mechanical robustnessShocks 30 Gn for 11 ms Vibrations 5 Gn, 5...150 Hz
Suitability for isolationYes IEC 60947-1
Ambient air temperature for storage-40...176 °F (-40...80 °C)
Thermal protection adjustment range17...23 A IEC 60947-2
Ambient air temperature for operation-4...140 °F (-20...60 °C)

Product details

The GV2P21 is a 23 A, 3-pole thermal-magnetic motor circuit breaker in the TeSys Deca range. Rated for motor protection, it provides isolation capability per IEC 60947-1.

Current production. Complies with EN/IEC 60947-2, 60947-4-1, UL 60947-4-1, CSA C22.2 No 60947-4-1. Fire resistance rated 960 °C per IEC 60695-2-11. Phase failure sensitivity per IEC 60947-4-1.

Safety & Isolation

Suitability for isolation ensures a visible air gap. Rotary handle, phase failure sensitivity, IK04 impact resistance, and IP20 terminals are included.

Accepts 1–6 mm² solid or stranded wire. Screw clamp terminals, tightening torque 1.7 N·m. IP20 finger-safe terminals.

Frequently asked questions

What is GV2P21's listed color?

Dark grey.

What is GV2P21's listed depth?

3.8 in (97 mm).

What compliance documentation does GV2P21 have?

It is listed to EN/IEC 60947-2 and 60947-4-1, UL 60947-4-1, CSA C22.2 No 60947-4-1, and IEC/EN 60335 standards.
