Schneider Electric GV2P32

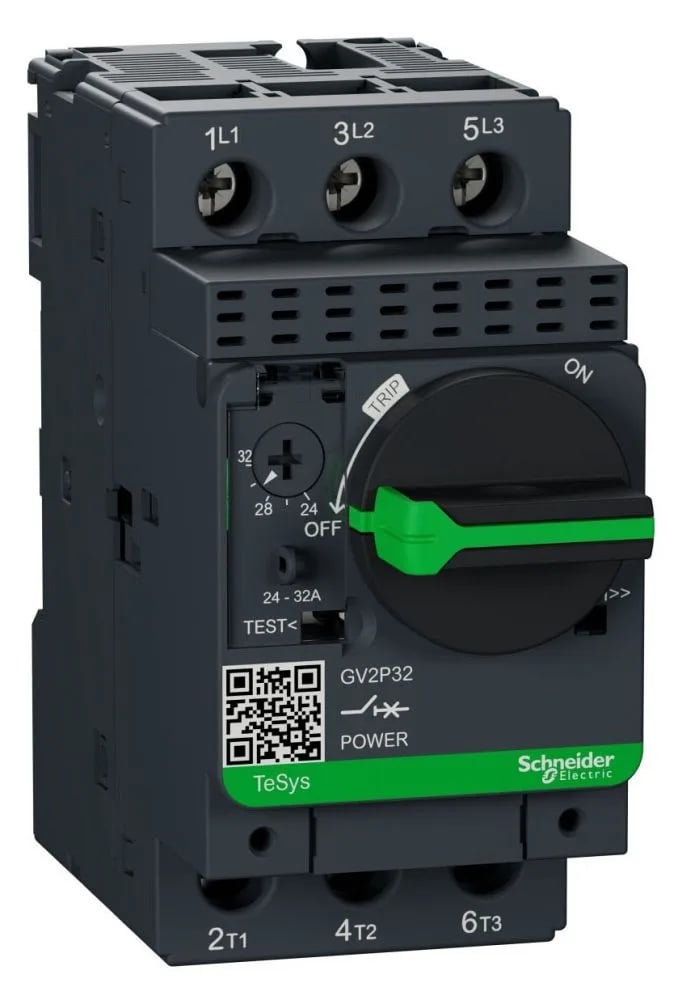

Schneider Electric GV2P32 TeSys Deca Motor Circuit Breaker,

MPNGV2P32
Active

Schneider Electric TeSys Deca, GV2P32, motor circuit breaker, 32 A, 3-pole, thermal-magnetic, 100 kA breaking capacity at 230 V.

$58.42Ref. price · indicative, final on quote
Schneider Electric GV2P32 datasheet (PDF)
StockContact for availability
MOQ1 pcs
Sourced new & surplus through independent channelsAuthenticity-screened · ESD-safe packingListing updated Jul 2026
How we verify every order →

Specifications

GV2P32 key specifications
ParameterValue
Control typeRotary handle
Network typeAC
Product or component typeMotor circuit breaker
Climatic withstandIACS E10
Voltage690 V AC 50/60 Hz IEC 60947-2
[Ue] rated operational voltage690 V AC 50/60 Hz IEC 60947-2
[Uimp] rated impulse withstand voltage6 kV IEC 60947-2
Breaking capacity100 kA Icu 230/240 V AC 50/60 Hz IEC 60947-2 50 kA Icu 400/415 V AC 50/60 Hz IEC 60947-2 20 kA Icu 440 V AC 50/60 Hz IEC 60947-2 10 kA Icu 500 V AC 50/60 Hz IEC 60947-2 4 kA Icu 690 V AC 50/60 Hz IEC 60947-2
Line rated current32 A
Magnetic tripping current537.6 A
[Ith] conventional free air thermal current32 A IEC 60947-2
[Ics] rated service short-circuit breaking capacity100 % 230/240 V AC 50/60 Hz IEC 60947-2 50 % 400/415 V AC 50/60 Hz IEC 60947-2 75 % 440 V AC 50/60 Hz IEC 60947-2 75 % 500 V AC 50/60 Hz IEC 60947-2 100 % 690 V AC 50/60 Hz IEC 60947-2

All specifications

GV2P32 additional specifications
ParameterValue
Motor power15 kW 400/415 V AC 50/60 Hz 18.5 kW 500 V AC 50/60 Hz 22 kW 690 V AC 50/60 Hz
Power dissipation per pole2.5 W
Network frequency50/60 Hz IEC 60947-2
Poles description3P
Phase failure sensitivityYes IEC 60947-4-1
Rated dutyUninterrupted IEC 60947-4-1
Utilisation categoryCategory A IEC 60947-2 AC-3 IEC 60947-4-1 AC-3e IEC 60947-4-1
IK degree of protectionIK04
IP degree of protectionIP20 IEC 60529
Mounting positionHorizontal Vertical
Connections - terminalsPower circuit screw clamp terminal 2 0.002...0.009 in² (1...6 mm²)solid Power circuit screw clamp terminal 2 0.002...0.009 in² (1.5...6 mm²)flexible without cable end Power circuit screw clamp terminal 2 0.002...0.006 in² (1...4 mm²)flexible with cable end
Operating altitude<= 6561.68 ft (2000 m)
ColorDark grey
Depth3.8 in (97 mm)
Width1.8 in (45 mm)
Height3.5 in (89 mm)
Electrical durability100000 cycles AC-3 415 V In 100000 cycles AC-3e 415 V In
Mechanical durability100000 cycles
StandardsEN/IEC 60947-2 EN/IEC 60947-4-1 UL 60947-4-1 CSA C22.2 No 60947-4-1 IEC/EN 60335-2-40:Annex JJ IEC/EN 60335-1:Clause 30.2
RangeTeSys Deca
CategoryUS10I1122367
Fixing mode35 mm symmetrical DIN rail clipped Panel screwed with 2 x M4 screws)
Fire resistance1760 °F (960 °C) IEC 60695-2-11
Device short nameGV2P
Tightening torque15.05 lbf.in (1.7 N.m) screw clamp terminal
Device applicationMotor protection
Trip unit technologyThermal-magnetic
Mechanical robustnessShocks 30 Gn for 11 ms Vibrations 5 Gn, 5...150 Hz
Suitability for isolationYes IEC 60947-1
Ambient air temperature for storage-40...176 °F (-40...80 °C)
Thermal protection adjustment range24...32 A IEC 60947-2
Ambient air temperature for operation-4...140 °F (-20...60 °C)

Product details

Rated for 15 kW at 400 V and up to 22 kW at 690 V, it covers common IEC induction motor sizes. Breaking capacity reaches 100 kA at 230 V, dropping to 50 kA at 400 V and 4 kA at 690 V — know your supply-side fault level when coordinating. Magnetic trip is fixed at 537.6 A (roughly 17x In), which clears short-circuits fast but stays out of the way during normal starts. Phase failure sensitivity is standard, and each pole dissipates 2.5 W. Terminals accept 1 to 6 mm² solid or 1.5 to 6 mm² flexible wire; tighten to 1.7 Nm.

Certified to EN/IEC 60947-2, EN/IEC 60947-4-1, UL 60947-4-1, and CSA C22.2 No 60947-4-1. Fire resistance tested to 960 °C per IEC 60695-2-11.

Frequently asked questions

What is the GV2P32's color?

Dark grey.

What is the GV2P32's depth?

3.8 inches (97 mm).

What compliance documentation does the GV2P32 carry?

It is certified to EN/IEC 60947-2 and 60947-4-1, UL 60947-4-1, CSA C22.2 No 60947-4-1, and meets IEC/EN 60335 requirements for fire resistance at 960 °C.
