Schneider Electric TeSys GV3A01 auxiliary contact block, 1 NO + 1 NC contacts, 6 A switching current, right-side mount, for GV3ME manual starter, discontinued.
| Parameter | Value |
|---|---|
| Protection type | GB2CB... circuit breaker GG fuse 6 A |
| Product or component type | Auxiliary contact block |
| Voltage | 600 V UL 508 690 V IEC 60947-1 600 V CSA C22.2 No 14 |
| [Ue] rated operational voltage | 48...690 V AC 24...220 V DC |
| [Ith] conventional free air thermal current | 6 A |
| Rated operational power in | 180 W 24 V DC-11 100000 cycles 240 W 48 V DC-11 100000 cycles 180 W 60 V DC-11 100000 cycles 140 W 110 V DC-11 100000 cycles 120 W 220 V DC-11 100000 cycles |
| Pole contact composition | 1 NO + 1 NC |
| Mounting location | Right side |
| Mechanical durability | 100000 cycles |
| Range | TeSys |
| Category | US10I1122366 |
| Quantity per set | Set of 10 |
| Device short name | GV3A |
| Environmental characteristic | Normal environment |

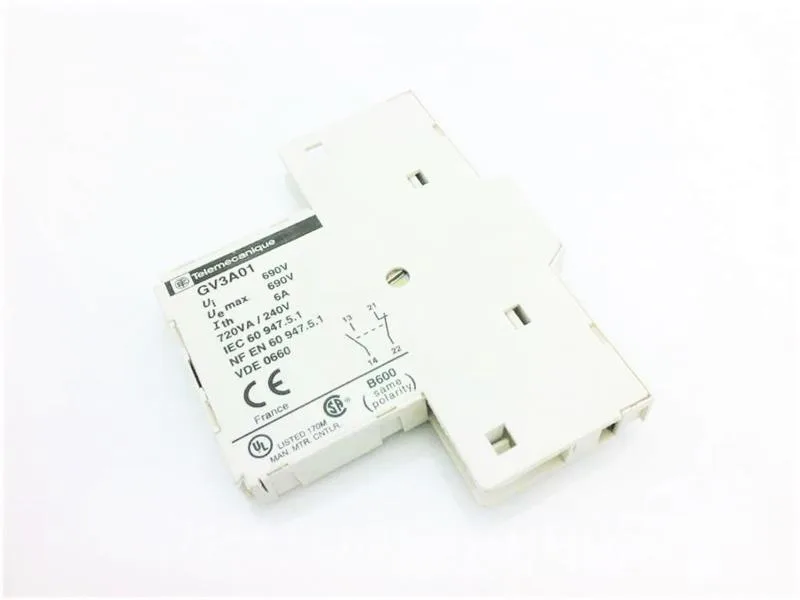

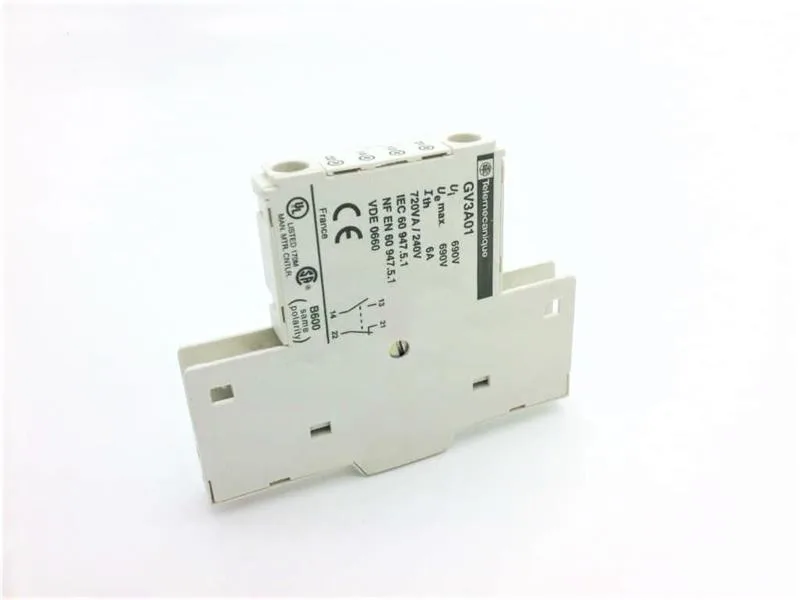

The GV3A01 is a Schneider TeSys auxiliary contact block with 1 normally-open and 1 normally-closed contact, rated for 6 A switching current and designed for right-side mounting on the GV3ME manual starter.
Schneider lists the GV3A01 as discontinued; remaining units are available through surplus and broker channels. An RFQ confirms current availability and lead time for this exact build.
