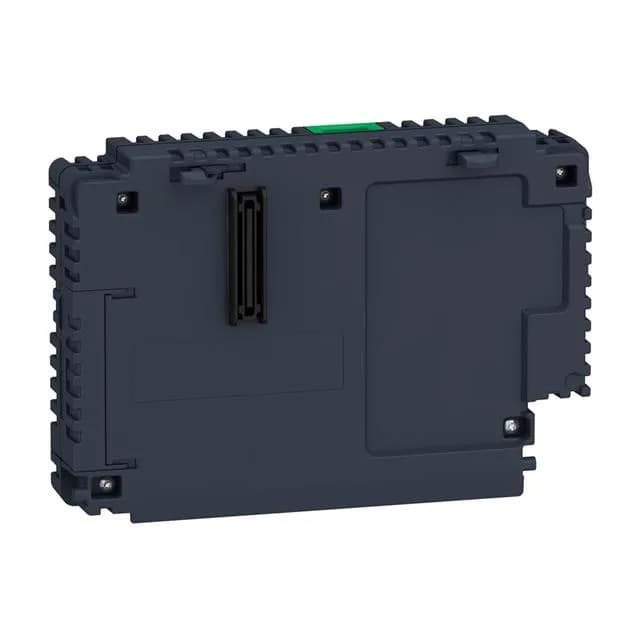

Schneider Electric HMIG3U

Schneider HMIG3U Harmony GTO HMI base unit, 256 MB RAM, Modbus

MPNHMIG3U
Active

Schneider HMIG3U Human Machine Interface (Hmi) Accessories.

$554.99Ref. price · indicative, final on quote
Schneider Electric HMIG3U datasheet (PDF)
StockContact for availability
MOQ1 pcs
Sourced new & surplus through independent channelsAuthenticity-screened · ESD-safe packingListing updated Jul 2026
How we verify every order →

Specifications

HMIG3U key specifications
ParameterValue
Type of coolingNatural convection
Range of productHarmony GTU
Product or component typeBase unit
Integrated connection typeEthernet TCP/IP 2 RJ45 COM1 serial link RJ45 RS485 110...115200 bit/s COM1 serial link RJ45 RS485 187.5 kbit/s COM2 serial link SUB-D 9 RS232C/RS422/RS485 110...115200 bit/s COM2 serial link SUB-D 9 RS232C/RS422/RS485 187.5 kbit/s Auxiliary port terminal block Expansion unit fieldbus card USB 2.0 port 2 USB type A USB 2.0 port mini B USB
Supply voltage12...24 V DC power supply
Communication port protocolModbus Modbus TCP/IP Uni-Telway
Pollution degree2 IEC 61131-2 ed.3
Relative humidity10...90 % non-condensing
Operating altitude6561.68 ft (2000 m)
Vibration resistance3.5 mm constant amplitude 5...9 Hz) IEC 61131-2 9.8 m/s² 9...150 Hz) IEC 61131-2
Depth1.8 in (45 mm)
Width7.4 in (188 mm)

All specifications

HMIG3U additional specifications
ParameterValue
Height5.2 in (131 mm)
StandardsCSA C22.2 No 142 ANSI/ISA 12-12-01 UL 508 Class I division 2 CSA C22.2 No 213 IEC 61132-2
CategoryUS10MC222567
Port ethernet10BASE-T/100BASE-TX/1000BASE-T
Processor nameARM Cortex-A9
Software packageVijeo Designer
Device short namePremium Box
Memory description256 MB RAM internal 2 x 13 mm board) 512 KB NVRAM backup memory
Data storage equipment1 GB SD card
Electromagnetic compatibilityElectrostatic discharge immunity test level 3 conforming to IEC 61000-4-2
Ambient air temperature for storage-4...140 °F (-20...60 °C)
Ambient air temperature for operation32...140 °F (0...60 °C)

Product details

Overview

The HMIG3U is a Harmony GTO base unit from Schneider, running an ARM Cortex-A9 processor at 600 MHz with 256 MB RAM and 512 KB NVRAM backup memory. It communicates over Modbus, Modbus TCP/IP, and Uni-Telway, with a 10BASE-T/100BASE-TX/1000BASE-T Ethernet port, and is powered by 24 VDC.

Memory and storage comparison

The HMIG3U carries 256 MB RAM and 512 KB NVRAM; by contrast, the HMIZSD4G is a 4 GB SD memory card accessory, not a base unit — choose the HMIG3U when the BOM requires the full base unit with onboard memory, and add the HMIZSD4G only if additional removable storage is needed.

Compliance and certifications

The HMIG3U carries CE, CULus, ATEX, IEC-Ex, RCM, GL, KC, CUL, EAC, ABS, BV, CCS, DNV, LR, RINA, UKCA, and UKEX certifications, and complies with CSA C22.2 No 142, ANSI/ISA 12-12-01, UL 508 Class I Division 2, CSA C22.2 No 213, and IEC 61132-2 standards. It is an active catalog item; lead time is confirmed via RFQ.
