Schneider Electric HMIG3UFC

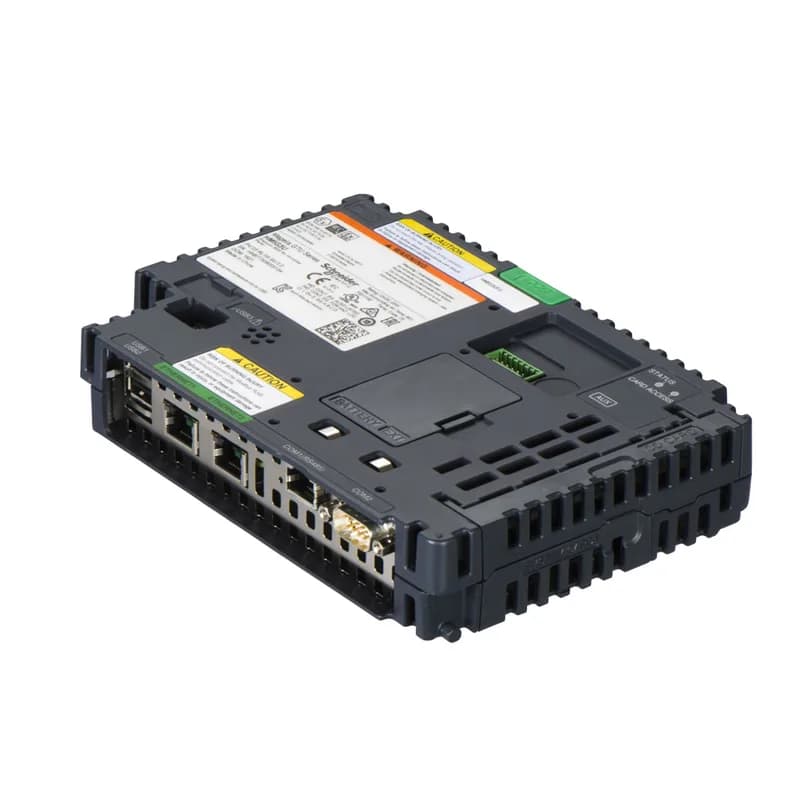

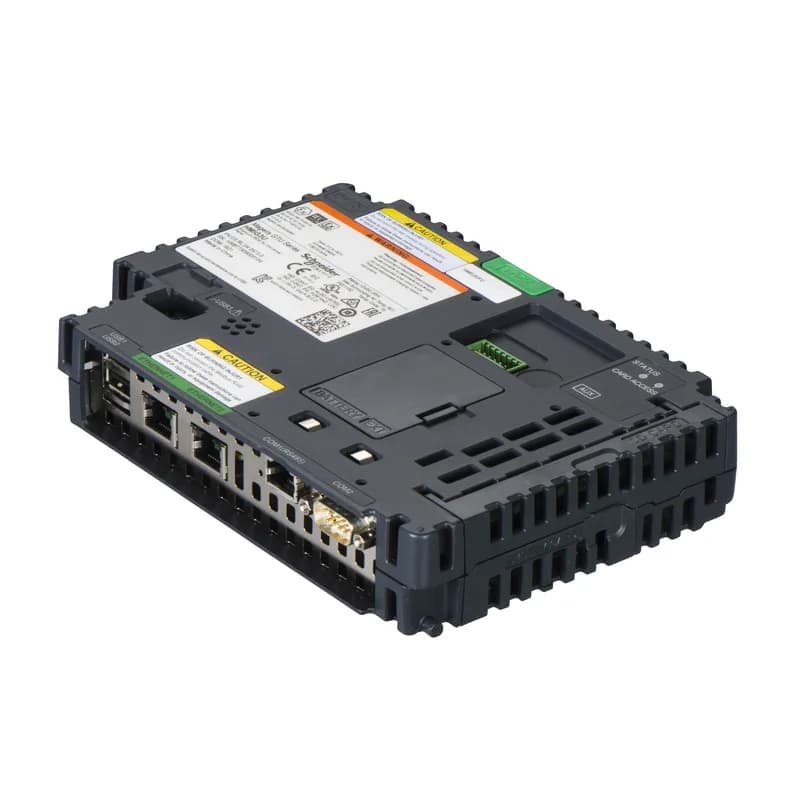

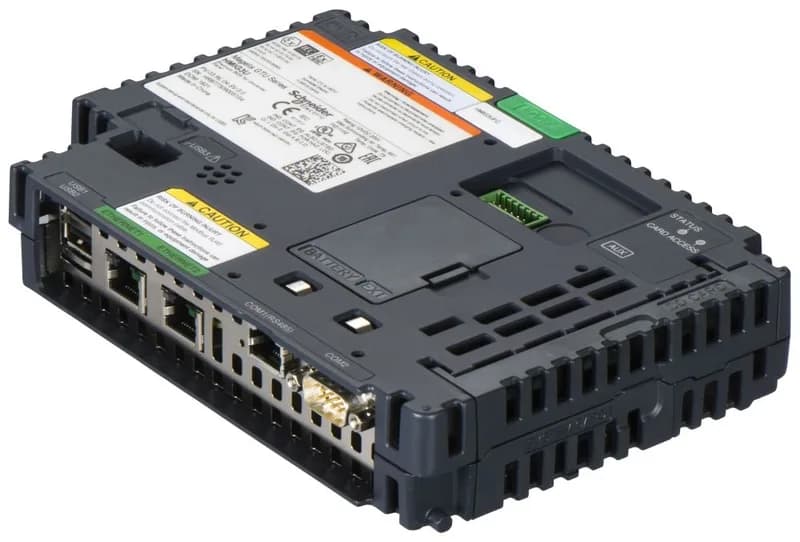

Schneider HMIG3UFC Harmony GTU HMI base unit, 24 V, 600 MHz

MPNHMIG3UFC
Active

Schneider HMIG3UFC Hmi Displays.

$1,493.52 – $3,299.00Ref. price · indicative, final on quote
Schneider Electric HMIG3UFC datasheet (PDF)
StockContact for availability
MOQ1 pcs
Sourced new & surplus through independent channelsAuthenticity-screened · ESD-safe packingListing updated Jul 2026
How we verify every order →

Specifications

HMIG3UFC key specifications
ParameterValue
Type of coolingNatural convection
Range of productHarmony GTU
Product or component typeBase unit
Integrated connection typeEthernet TCP/IP 2 RJ45 COM1 serial link RJ45 RS485 110...115200 bit/s COM1 serial link RJ45 RS485 187.5 kbit/s COM2 serial link SUB-D 9 RS232C/RS422/RS485 110...115200 bit/s COM2 serial link SUB-D 9 RS232C/RS422/RS485 187.5 kbit/s Auxiliary port terminal block Expansion unit fieldbus card USB 2.0 port 2 USB type A USB 2.0 port mini B USB
Supply voltage12...24 V DC power supply
Communication port protocolModbus Uni-Telway Modbus TCP/IP
Pollution degree2 IEC 61131-2 ed.3
Relative humidity10...90 % non-condensing
Operating altitude6561.68 ft (2000 m)
Vibration resistance3.5 mm constant amplitude 5...9 Hz) IEC 61131-2 9.8 m/s² 9...150 Hz) IEC 61131-2
Depth1.8 in (45 mm)
Width7.4 in (188 mm)

All specifications

HMIG3UFC additional specifications
ParameterValue
Height5.2 in (131 mm)
StandardsCSA C22.2 No 142 ANSI/ISA 12-12-01 UL 508 Class I division 2 CSA C22.2 No 213 IEC 61132-2
CategoryUS10MC222567
Port ethernet10BASE-T/100BASE-TX/1000BASE-T
Processor nameCPU RISC 600 MHz
Operating systemHarmony
Software packageVijeo Designer run time
Device short namePremium Box
Memory description256 MB RAM internal 512 KB NVRAM backup memory
Data storage equipment1 GB SD card
Electromagnetic compatibilityElectrostatic discharge immunity test level 3 conforming to IEC 61000-4-2
Ambient air temperature for storage-4...140 °F (-20...60 °C)
Ambient air temperature for operation32...140 °F (0...60 °C)

Product details

Overview

The HMIG3UFC is a Schneider Harmony GTU HMI base unit running on a 24 V supply with a CPU RISC 600 MHz processor, 256 MB RAM internal and 512 KB NVRAM backup memory. It communicates over Modbus, Uni-Telway, and Modbus TCP/IP via dual RJ45 Ethernet ports, plus serial RS232C/RS422/RS485 and USB 2.0 connections. The unit is active in Schneider's current catalog; no end-of-life notice applies.

Memory sizing vs HMIG5U21

The HMIG3UFC carries 256 MB RAM internal and 512 KB NVRAM backup memory, while the HMIG5U21 offers 4 GB RAM internal and 512 KB NVRAM backup memory — a 16x RAM difference that matters for large-screen applications or heavy recipe storage.

Panel integration

Dimensions are 187.96 mm wide by 132.08 mm high by 45.72 mm deep; the unit cools by natural convection and fits a standard cut-out for the Harmony GTU range.

Compliance and certifications

Carries CE, CULus, ATEX, IEC-Ex, RCM, GL, KC, CUL, EAC, ABS, BV, CCS, DNV, LR, RINA, UKCA, UKEX, and meets CSA C22.2 No 142, ANSI/ISA 12-12-01, UL 508 Class I Division 2, CSA C22.2 No 213, IEC 61132-2.
