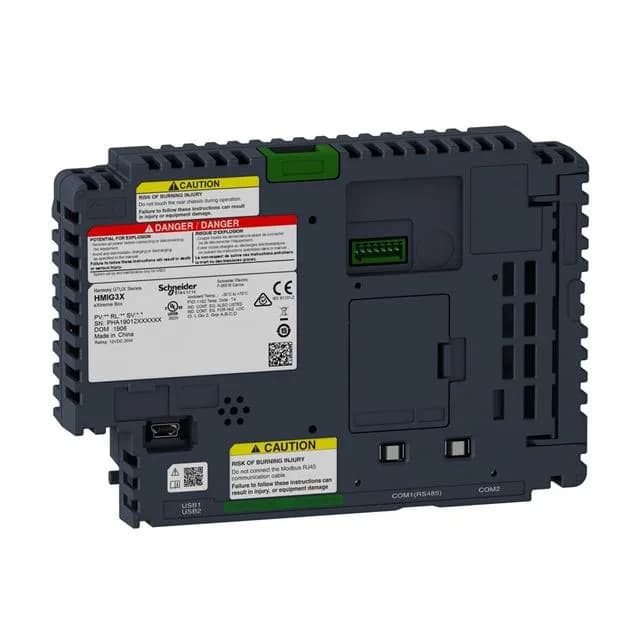

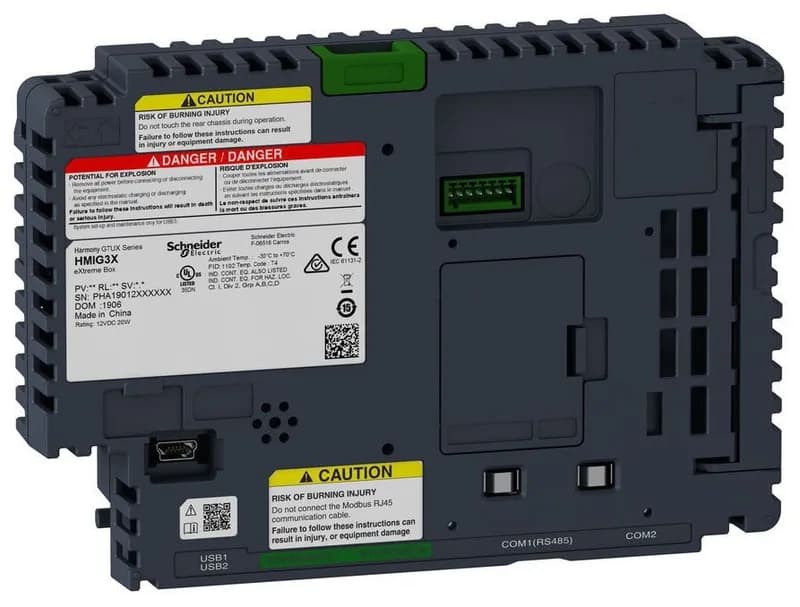

Schneider Electric HMIG3X

Schneider HMIG3X Harmony GTUX eXtreme Box base unit, 12 VDC

MPNHMIG3X
Active

Schneider HMIG3X Human Machine Interface (Hmi) Accessories.

$623.57 – $1,773.51Ref. price · indicative, final on quote
Schneider Electric HMIG3X datasheet (PDF)
StockContact for availability
MOQ1 pcs
Sourced new & surplus through independent channelsAuthenticity-screened · ESD-safe packingListing updated Jul 2026
How we verify every order →

Specifications

HMIG3X key specifications
ParameterValue
Type of coolingNatural convection
Range of productHarmony GTUX
Product or component typeBase unit
Integrated connection typeEthernet TCP/IP 2 RJ45 10 BASE-T/100 BASE-TX/1000 BASE-T COM1 serial link RJ45 RS485 110...115200 bit/s COM1 serial link RJ45 RS485 187.5 kbit/s COM2 serial link SUB-D 9 RS232C/RS422/RS485 110...115200 bit/s COM2 serial link SUB-D 9 RS232C/RS422/RS485 187.5 kbit/s Auxiliary port terminal block Expansion unit fieldbus card USB 2.0 port 2 USB type A USB 2.0 port mini B USB
Supply voltage12 V DC power supply
Power consumption in20.0 W
Communication port protocolModbus TCP/IP Modbus serial Uni-Telway
Pollution degree2 IEC 61131-2 ed.3
Shock resistance392 m/s² X, Y, Z directions for 3 times)IEC 61131-2
Relative humidity10...90 % non-condensing
Operating altitude6561.68 ft (2000 m)
Vibration resistance7 mm 5...9 Hz) X, Y, Z directions for 10 cycles (approx. 100 min) IEC 61131-2 19.6 m/s² 9...150 Hz) IEC 61131-2

All specifications

HMIG3X additional specifications
ParameterValue
Depth1.8 in (45 mm)
Width7.4 in (188 mm)
Height5.2 in (131 mm)
StandardsUL 61010 UL 121201 CSA C22.2 No 213 CSA C22.2 No 61010-1 IEC 61132-2
CategoryUS10MC222567
Processor nameARM Cortex-A9
Number of slots2 slot(s) for SD card
Software packageEcoStruxure Operator Terminal Expert Vijeo Designer
Device short nameeXtreme Box
Memory description256 MB RAM internal 2 x 13 mm board) 512 KB NVRAM backup memory
Data storage equipment1 GB SD card
Environmental characteristicCorrosive gas free
Electromagnetic compatibilityElectrostatic discharge immunity test conforming to IEC 61000-4-2 level 3
Resistance to fast transients1 kV IEC 61000-4-4 signal ports) 2 kV IEC 61000-4-4 power ports)
Ambient air temperature for storage-22...158 °F (-30...70 °C)
Ambient air temperature for operation-22...158 °F (-30...70 °C)
Resistance to electrostatic discharge6 kV contact discharge IEC 61000-4-2 level 3 8 kV air discharge IEC 61000-4-2 level 3

Product details

Overview

The HMIG3X is a Harmony GTUX eXtreme Box base unit running an ARM Cortex-A9 processor with 256 MB RAM and 512 KB NVRAM backup memory, powered by a 12 VDC supply. It integrates Modbus TCP/IP, Modbus serial, and Uni-Telway protocols over two RJ45 Ethernet ports and two serial links. Rated for 392 m/s² shock in X, Y, Z directions per IEC 61131-2, it is built for vibration-prone environments. Certifications include CE, KC, RCM, EAC, ATEX zone 2/22, IEC-Ex, UL, CSA, UKCA, and UKEX.

Comparison vs HMIG5UL8B

Compared to the HMIG5UL8B, the HMIG3X runs on 12 VDC (vs 24 VDC) and carries 256 MB RAM (vs 2 GB RAM). The HMIG5UL8B adds a 10BASE-T/100BASE-TX/1000BASE-T Ethernet port; the HMIG3X has two RJ45 ports at 10/100/1000 but no dedicated Gigabit port. Both share Modbus TCP/IP and Uni-Telway protocol support.

The HMIG3X is an active Schneider catalog item; lead time is confirmed via RFQ. No end-of-life notice is posted.
