Schneider Electric HMIG3XFH
MPNHMIG3XFH
Active

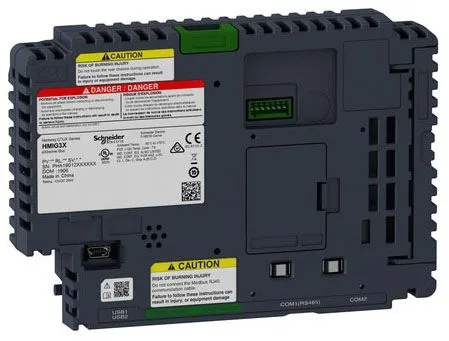

Square D HMIG3XFH Hmi Panel Base Unit|Square D HMIG3XFH Hmi Panel Base Unit
$1,995.00Ref. price · indicative, final on quote
Source DocumentedChannel stated on listing & quote
Condition PhotosReal unit photos / video on request
WhatsApp AnswersFast human replies for machine-down parts
Worldwide DispatchDHL/FedEx — transit quoted per order
Independent China distributor & sourcing agent· Listing updated Sep 2026
Specifications
| Parameter | Value |
|---|---|
| Type of cooling | Natural convection |
| Range of product | Harmony GTUX |
| Product or component type | Base unit |
| Integrated connection type | Ethernet TCP/IP 2 RJ45 10 BASE-T/100 BASE-TX/1000 BASE-T COM1 serial link RJ45 RS485 110...115200 bit/s COM1 serial link RJ45 RS485 187.5 kbit/s COM2 serial link SUB-D 9 RS232C/RS422/RS485 110...115200 bit/s COM2 serial link SUB-D 9 RS232C/RS422/RS485 187.5 kbit/s Auxiliary port terminal block Expansion unit fieldbus card USB 2.0 port 2 USB type A USB 2.0 port mini B USB |
| Supply voltage | 12 V DC power supply |
| Power consumption in | 20.0 W |
| Communication port protocol | Modbus TCP/IP Modbus serial Uni-Telway |
| Pollution degree | 2 IEC 61131-2 ed.3 |
| Shock resistance | 392 m/s² X, Y, Z directions for 3 times)IEC 61131-2 |
| Relative humidity | 10...90 % non-condensing |
| Operating altitude | 6561.68 ft (2000 m) |
| Vibration resistance | 7 mm 5...9 Hz) X, Y, Z directions for 10 cycles (approx. 100 min) IEC 61131-2 19.6 m/s² 9...150 Hz) IEC 61131-2 |
All specifications
| Parameter | Value |
|---|---|
| Depth | 1.8 in (45 mm) |
| Width | 7.4 in (188 mm) |
| Height | 5.2 in (131 mm) |
| Standards | UL 61010 UL 121201 CSA C22.2 No 213 CSA C22.2 No 61010-1 IEC 61132-2 |
| Category | US10MC222567 |
| Processor name | ARM Cortex-A9 |
| Number of slots | 2 slot(s) for SD card |
| Software package | EcoStruxure Operator Terminal Expert Vijeo Connect |
| Device short name | eXtreme Box full coated |
| Memory description | 256 MB RAM internal 2 x 13 mm board) |
| Data storage equipment | 1 GB SD card |
| Environmental characteristic | 3C3 |
| Electromagnetic compatibility | Electrostatic discharge immunity test conforming to IEC 61000-4-2 level 3 |
| Resistance to fast transients | 1 kV IEC 61000-4-4 signal ports) 2 kV IEC 61000-4-4 power ports) |
| Ambient air temperature for storage | -22...158 °F (-30...70 °C) |
| Ambient air temperature for operation | -22...158 °F (-30...70 °C) IEC 61131-2 |
| Resistance to electrostatic discharge | 6 kV contact discharge IEC 61000-4-2 level 3 8 kV air discharge IEC 61000-4-2 level 3 |
MPN
HMIG3XFH
