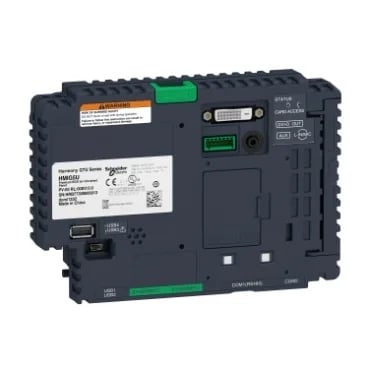

Schneider Electric HMIG5U

Schneider HMIG5U Harmony GTU HMI CPU, 2 GB RAM, 16 GB CFast, Discontinued

MPNHMIG5U
Obsolete

Schneider HMIG5U Hmi Displays — now discontinued. Supplied from remaining channel stock; full specifications, lifecycle and same-series options are below.

$1,547.16 – $2,244.15Ref. price · indicative, final on quote
Schneider Electric HMIG5U datasheet (PDF)
StockContact for availability
MOQ1 pcs
Sourced new & surplus through independent channelsAuthenticity-screened · ESD-safe packingListing updated Jul 2026
How we verify every order →

Specifications

HMIG5U key specifications
ParameterValue
Range of productHarmony GTU
Product or component typeBase unit
Integrated connection typeEthernet TCP/IP 2 RJ45 COM1 serial link RJ45 RS485 110...115200 bit/s COM2 serial link SUB-D 9 RS232C/RS422/RS485 110...115200 bit/s Auxiliary port terminal block Expansion unit fieldbus card USB 2.0 port mini B USB DVI-D video port DVI-D Microphone mini-jack USB 2.0 port 3 USB type A
Supply voltage12...24 V DC power supply
Pollution degree2 IEC 61131-2 ed.3
Relative humidity10...90 % non-condensing
Operating altitude6561.68 ft (2000 m)
Vibration resistance3.5 mm constant amplitude 5...9 Hz) IEC 61131-2 9.8 m/s² 9...150 Hz) IEC 61131-2
Width7.4 in (188 mm)
Height5.2 in (131 mm)
StandardsCSA C22.2 No 142 ANSI/ISA 12-12-01 UL 508 Class I division 2 CSA C22.2 No 213 IEC 61132-2
CategoryUS10MC222567

All specifications

HMIG5U additional specifications
ParameterValue
Port ethernet10BASE-T/100BASE-TX/1000BASE-T
Processor nameIntel X86 1.3 GHz
Operating systemWindows Embedded 7
Software packageInternet Explorer Vijeo Citect web client Vijeo Designer run time .NET framework 4.0 Adobe PDF reader CAD viewer Multimedia player Office reader VNC client/server
Device short nameOpen Box
Memory description512 KB NVRAM backup memory 2 GB RAM internal
Data storage equipment16 GB CFast card
Electromagnetic compatibilityElectrostatic discharge immunity test conforming to IEC 61000-4-2 level 3
Ambient air temperature for storage-4...140 °F (-20...60 °C)
Ambient air temperature for operation32...140 °F (0...60 °C)

Product details

Overview

The HMIG5U is a Schneider Harmony GTU HMI CPU base unit, order code HMIG5U, with an Intel X86 1.3 GHz processor, 2 GB RAM, and 16 GB CFast data storage. It runs Windows Embedded 7 and includes dual Gigabit Ethernet ports, serial RS232/422/485, USB, and DVI-D video output. Supply is 24 V DC with panel-mount installation.

Applications

As an HMI CPU, the HMIG5U provides operator interface and supervisory control for industrial machinery, packaging lines, material handling, and process skids.

The Intel X86 1.3 GHz processor and 2 GB RAM support runtime environments including Vijeo Designer, Vijeo Citect web client, and.NET Framework 4.0, enabling complex visualization and data logging. The 16 GB CFast card stores application files and logs, while dual Ethernet ports allow simultaneous plant network and programming access. Serial ports (RS232/422/485) and USB provide connectivity to legacy controllers and peripherals.

Lifecycle

The HMIG5U is discontinued by Schneider.
