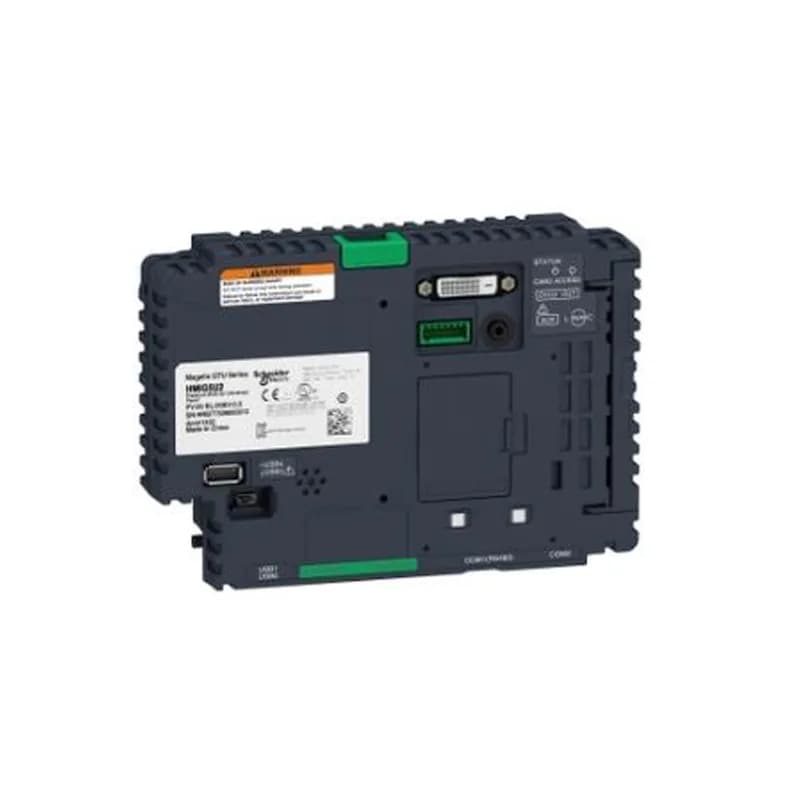

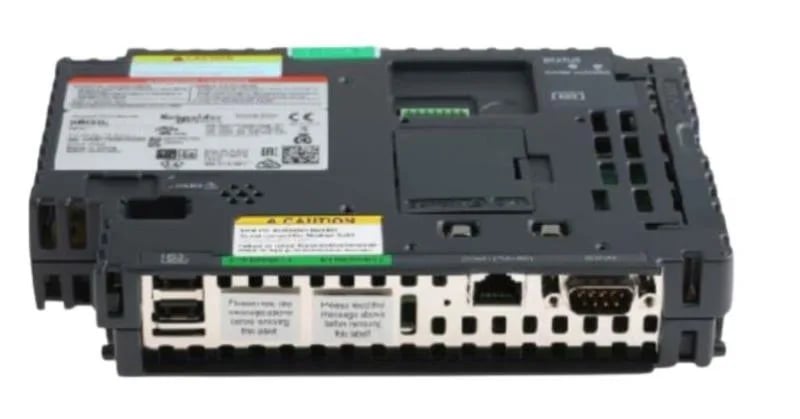

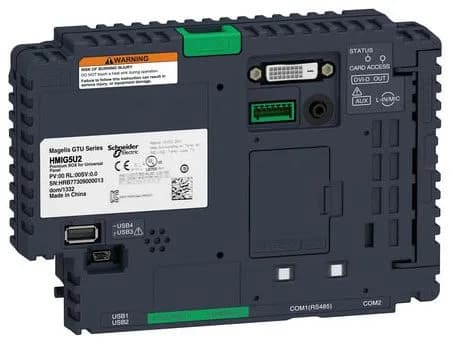

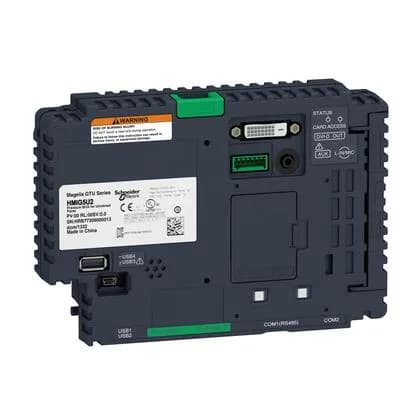

Schneider Electric HMIG5U2
MPNHMIG5U2
Obsolete
Operator Interface CPU, Open Box, Windows 7, Embedded, 2GB Memory|Human Interface CPU, Open Box, Windows 7, Embedded, 2GB Memory, Harmony GTU, Intel X86 Processor
$967.74Ref. price · indicative, final on quote
StockContact for availability
MOQ1 pcs
Sourced new & surplus through independent channelsAuthenticity-screened · ESD-safe packingListing updated Jul 2026
How we verify every order →Specifications
| Parameter | Value |
|---|---|
| Type of cooling | Natural convection |
| Range of product | Harmony GTU |
| Product or component type | Base unit |
| Integrated connection type | Ethernet TCP/IP 2 RJ45 COM1 serial link RJ45 RS485 110...115200 bit/s COM2 serial link SUB-D 9 RS232C/RS422/RS485 110...115200 bit/s Auxiliary port terminal block Expansion unit fieldbus card USB 2.0 port mini B USB DVI-D video port DVI-D Microphone mini-jack USB 2.0 port 3 USB type A |
| Supply voltage | 12...24 V DC power supply |
| Communication port protocol | Modbus Modbus TCP/IP Uni-Telway |
| Pollution degree | 2 IEC 61131-2 ed.3 |
| Relative humidity | 10...90 % non-condensing |
| Operating altitude | 2000 |
| Vibration resistance | 3.5 mm constant amplitude 5...9 Hz) IEC 61131-2 9.8 m/s² 9...150 Hz) IEC 61131-2 |
| Depth | 1.8 in (45 mm) |
| Width | 7.4 in (188 mm) |
All specifications
| Parameter | Value |
|---|---|
| Height | 5.2 in (131 mm) |
| Standards | CSA C22.2 No 142 ANSI/ISA 12-12-01 UL 508 Class I division 2 CSA C22.2 No 213 IEC 61132-2 |
| Category | US10MC222567 |
| Port ethernet | 10BASE-T/100BASE-TX/1000BASE-T |
| Processor name | Intel X86 1.33 GHz |
| Operating system | Windows Embedded 7 |
| Software package | Internet Explorer Vijeo Citect web client Vijeo Designer run time .NET framework 4.0 Adobe PDF reader Multimedia player Office reader VNC client/server |
| Device short name | Open Box |
| Memory description | 512 KB NVRAM backup memory 2 GB RAM internal |
| Data storage equipment | 32 GB CFast card |
| Electromagnetic compatibility | Electrostatic discharge immunity test level 3 conforming to IEC 61000-4-2 |
| Ambient air temperature for storage | -4...140 °F (-20...60 °C) |
| Ambient air temperature for operation | 32...140 °F (0...60 °C) |
MPN
HMIG5U2
