Schneider Electric HMIG5UL8A

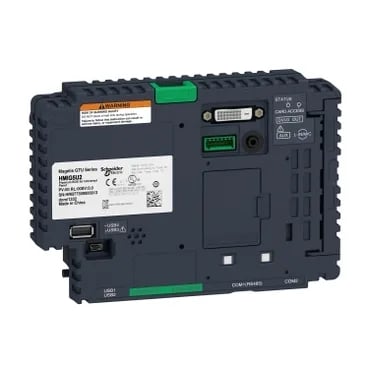

Schneider HMIG5UL8A Harmony GTU Open Box Base Unit, 1.33 GHz

MPNHMIG5UL8A
Obsolete

Schneider HMIG5UL8A Harmony Gtu — now discontinued. Supplied from remaining channel stock; full specifications, lifecycle and same-series options are below.

$1,533.24Ref. price · indicative, final on quote
Schneider Electric HMIG5UL8A datasheet (PDF)
StockContact for availability
MOQ1 pcs
Sourced new & surplus through independent channelsAuthenticity-screened · ESD-safe packingListing updated Jul 2026
How we verify every order →

Specifications

HMIG5UL8A key specifications
ParameterValue
Type of coolingNatural convection
Range of productHarmony GTU
Product or component typeBase unit
Integrated connection typeEthernet TCP/IP 2 RJ45 COM1 serial link RJ45 RS485 110...115200 bit/s COM2 serial link SUB-D 9 RS232C/RS422/RS485 110...115200 bit/s Auxiliary port terminal block Expansion unit fieldbus card USB 2.0 port mini B USB DVI-D video port DVI-D Microphone mini-jack USB 2.0 port 3 USB type A
Supply voltage12...24 V DC power supply
Communication port protocolModbus Modbus TCP/IP Uni-Telway
Pollution degree2 IEC 61131-2 ed.3
Relative humidity10...90 % non-condensing
Operating altitude6561.68 ft (2000 m)
Vibration resistance3.5 mm constant amplitude 5...9 Hz) IEC 61131-2 9.8 m/s² 9...150 Hz) IEC 61131-2
Depth1.8 in (45 mm)
Width7.4 in (188 mm)

All specifications

HMIG5UL8A additional specifications
ParameterValue
Height5.2 in (131 mm)
StandardsCSA C22.2 No 142 ANSI/ISA 12-12-01 UL 508 Class I division 2 CSA C22.2 No 213 IEC 61132-2
CategoryUS10MC222567
Port ethernet10BASE-T/100BASE-TX/1000BASE-T
Processor nameIntel X86 1.33 GHz
Operating systemWindows Embedded 7
Software packageInternet Explorer EcoStruxure machine SCADA expert trial version .NET framework 4.0 Adobe PDF reader Multimedia player Office reader VNC client/server
Device short nameOpen Box
Memory description512 KB NVRAM backup memory 2 GB RAM internal
Data storage equipment32 GB CFast card
Electromagnetic compatibilityElectrostatic discharge immunity test level 3 conforming to IEC 61000-4-2
Ambient air temperature for storage-4...140 °F (-20...60 °C)
Ambient air temperature for operation32...140 °F (0...60 °C)

Product details

Overview

The HMIG5UL8A is a Schneider Harmony GTU Open Box base unit, order code HMIG5UL8A, built around an Intel X86 1.33 GHz processor with 2 GB RAM and a 32 GB CFast storage card. It runs Windows Embedded 7 and ships with EcoStruxure Machine SCADA Expert pre-installed, plus a trial version of the SCADA runtime. The unit measures 187.96 mm wide by 132.08 mm tall by 45.72 mm deep, operates on 24 V DC, and is cooled by natural convection.

The HMIG5UL8A runs the HMI application, communicates with controllers, and hosts the runtime environment. The 1.33 GHz X86 processor and 2 GB RAM handle multi-page graphics, data logging, and recipe management.

Applications

Harmony GTU Open Box units like the HMIG5UL8A are specified for machine-level HMI in packaging, material handling, food and beverage, and light industrial automation. The pre-installed EcoStruxure Machine SCADA Expert runtime suits OEMs who need a single platform for visualization, data collection, and remote access.

MPN
HMIG5UL8A
