Schneider Electric HMIGK2310

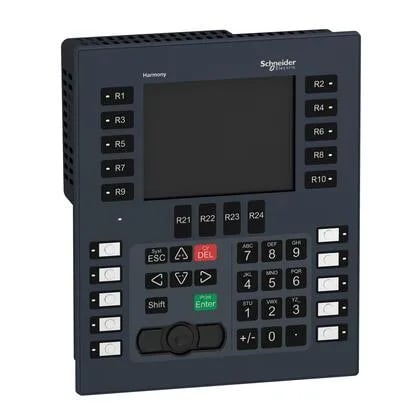

Schneider HMIGK2310 Harmony GK HMI, 5.7 in QVGA, 128 MB flash

MPNHMIGK2310
Active

Schneider HMIGK2310 Operator Interfaces.

$2,285.00Ref. price · indicative, final on quote
Schneider Electric HMIGK2310 datasheet (PDF)
StockContact for availability
MOQ1 pcs
Sourced new & surplus through independent channelsAuthenticity-screened · ESD-safe packingListing updated Jul 2026
How we verify every order →

Specifications

HMIGK2310 key specifications
ParameterValue
Memory typeUp to 32 GB SD card RAM Up to 32 GB SDHC card RAM
Display typeBacklit colour TFT LCD
Software typeConfiguration software
Range of productHarmony GK
Product or component typeTouchscreen panel with keypad
Integrated connection typeUSB 2.0 type A master Modicon M340 terminal port communication removable screw terminal block power supply RJ45 Ethernet TCP/IP USB 2.0 type mini B
Supply voltage limits19.2...28.8 V
Supply voltage24 V DC
Inrush current30 A
Power consumption in7.7 W
Enclosure materialPPT
IP degree of protectionIP20 IEC 60529 rear panel) IP65 IEC 60529 front panel)

All specifications

HMIGK2310 additional specifications
ParameterValue
NEMA degree of protectionNEMA 4X front panel (indoor use)
Downloadable protocolsTelemecanique Modicon FIPWAY Telemecanique Modicon Modbus Plus Telemecanique Modicon Modbus TCP Telemecanique Modicon Modbus Mitsubishi Melsec third party protocols Omron Sysmac third party protocols Rockwell Automation Allen-Bradley third party protocols Siemens Simatic third party protocols Telemecanique Modicon Uni-TE
Mounting modeFlush mounting
Shock resistance15 gn 11 ms IEC 60068-2-27
Relative humidity10...90 % without condensation
Operating altitude< 6561.68 ft (2000 m)
Vibration resistance1 gn 9...150 Hz)IEC 60068-2-6 3.5 mm 5...9 Hz)IEC 60068-2-6
Depth2.8 in (70 mm)
Width8.7 in (220.3 mm)
Height10.4 in (265 mm)
Display colour65536 colours
Front materialAluminium alloy
Cut-out dimensions209 (+/- 0.4) x 243 (+/- 0.4) mm
StandardsUL 61010-2-201 IEC 61000-6-2 IEC 61131-2 ANSI/ISA 12.12.01 CSA C22.2 No 213 IEC 61000-6-4 UBC 1997 (Seismic Zone 4)
SupplyExternal source
MarkingCE
CategoryUS10MC222569
Brightness16 levels via touch panel
Fixing modeBy 10 spring clips
Touch panelAnalogue
Size5.7 inch
Port ethernet10BASE-T/100BASE-TX
Character fontKorean Taiwanese (traditional Chinese) ASCII (European characters) Japanese (ANK, Kanji) Chinese (simplified Chinese)
Processor nameARM926EJ-S
Realtime clockBuilt-in
Number of pagesLimited by internal memory capacity
Local signalling1 LED (green or orange) for normal operation or backlighting faulty
Software packageVijeo Designer
Backlight lifespan50000 hours
Display resolution320 x 240 pixels QVGA
Memory description512 KB SRAM back up of data lithium battery 128 MB flash EPROM application memory
Touch sensitive zone1024 x 1024
Number of SERVICE keys8
Immunity to microbreaks5 ms
Number of alphanumeric keys12
Electromagnetic compatibilityResistance to electrostatic discharge - test level: 4 kV level 3 conforming to IEC 61000-4-2 Resistance to radiated electromagnetic fields - test level: 10 V/m conforming to IEC 61000-4-3 Resistance to fast transient - test level: 2 kV level 3 conforming to IEC 61000-4-4
Number of static function keys10 with LED and labels
Ambient air temperature for storage-4...140 °F (-20...60 °C)
Number of dynamic function keys symb14 with LED
Ambient air temperature for operation32...131 °F (0...55 °C)

Product details

Overview

The HMIGK2310 is a Schneider Harmony GK HMI with a 5.7 in QVGA backlit colour TFT LCD, 128 MB flash EPROM application memory, and 512 KB SRAM backed by a lithium battery. It runs on a 24 VDC external supply, is sealed to IP20 with a NEMA 4X front panel, and is programmed via Vijeo Designer. It carries CE marking, complies with UL 61010-2-201, IEC 61131-2, and seismic zone 4 per UBC 1997, and is rated for 15 gn 11 ms shock per IEC 60068-2-27.

Memory and performance comparison

Compared to the XBTGT2110, the HMIGK2310 offers 4x the SRAM (512 KB vs 128 kB) and 8x the flash EPROM (128 MB vs 16 MB), giving it significantly more room for complex applications and data logging. It also draws less than half the power (7.7 W vs 18.0 W), reducing heat load in the cabinet.
