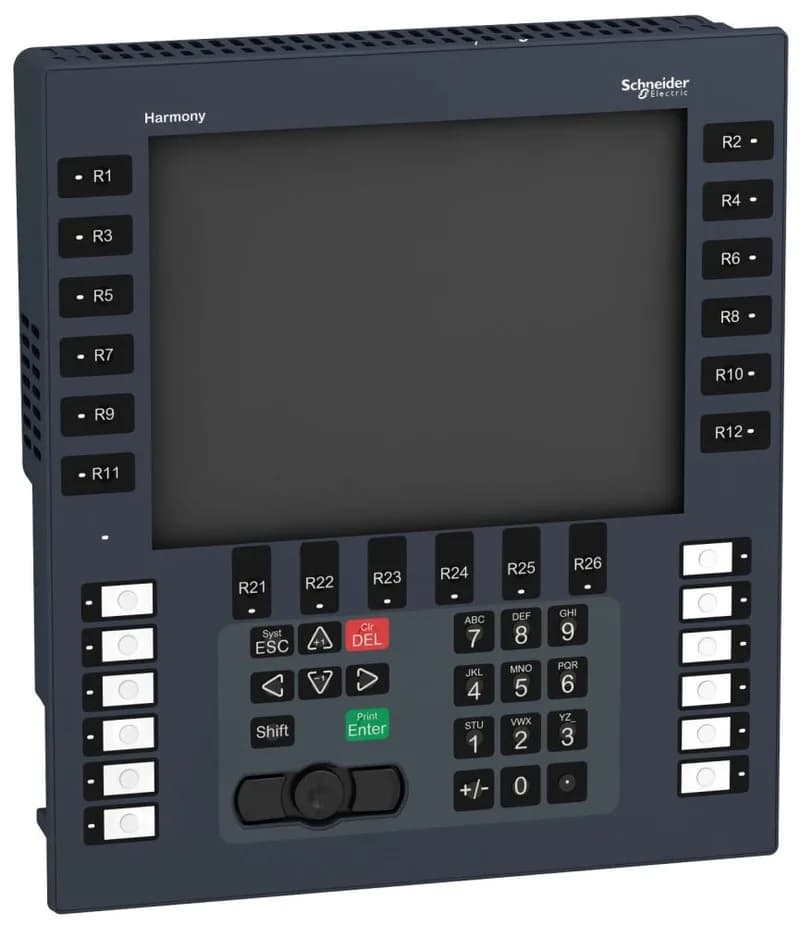

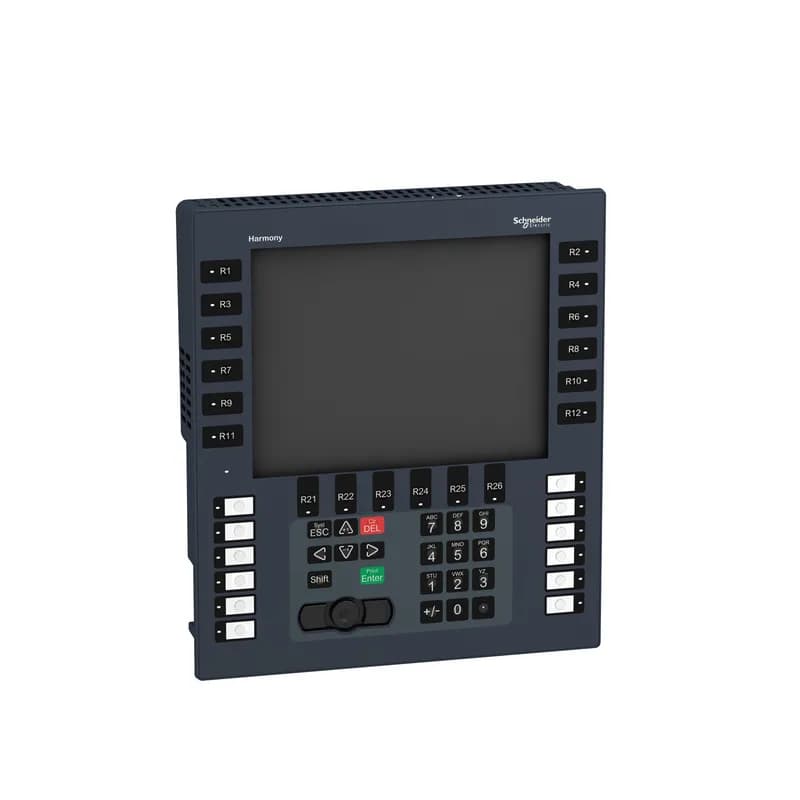

Schneider Electric HMIGK5310
MPNHMIGK5310
Active
10.4" KEYPAD & TOUCHSCREEN HMI P
$1,949.45Ref. price · indicative, final on quote
StockContact for availability
MOQ1 pcs
Sourced new & surplus through independent channelsAuthenticity-screened · ESD-safe packingListing updated Jul 2026
How we verify every order →Specifications
| Parameter | Value |
|---|---|
| Memory type | Up to 32 GB SD card RAM Up to 32 GB SDHC card RAM |
| Display type | Backlit colour TFT LCD |
| Software type | Configuration software |
| Range of product | Harmony GK |
| Product or component type | Touchscreen panel with keypad |
| Integrated connection type | USB 2.0 type A master Modicon M340 terminal port communication removable screw terminal block power supply RJ45 Ethernet TCP/IP USB 2.0 type mini B |
| Supply voltage limits | 19.2...28.8 V |
| Supply voltage | 24 V DC |
| Inrush current | 30 A |
| Power consumption in | 11.4 W |
| Enclosure material | PPT |
| IP degree of protection | IP20 IEC 60529 rear panel) IP65 IEC 60529 front panel) |
All specifications
| Parameter | Value |
|---|---|
| NEMA degree of protection | NEMA 4X front panel (indoor use) |
| Downloadable protocols | Telemecanique Modicon FIPWAY Telemecanique Modicon Modbus Plus Telemecanique Modicon Modbus TCP Telemecanique Modicon Modbus Mitsubishi Melsec third party protocols Omron Sysmac third party protocols Rockwell Automation Allen-Bradley third party protocols Siemens Simatic third party protocols Telemecanique Modicon Uni-TE |
| Mounting mode | Flush mounting |
| Shock resistance | 15 gn 11 ms IEC 60068-2-27 |
| Relative humidity | 10...90 % without condensation |
| Operating altitude | < 6561.68 ft (2000 m) |
| Vibration resistance | 1 gn 9...150 Hz)IEC 60068-2-6 3.5 mm 5...9 Hz)IEC 60068-2-6 |
| Depth | 3.0 in (76 mm) |
| Width | 11.7 in (296 mm) |
| Height | 13.07 in (332 mm) |
| Display colour | 65536 colours |
| Front material | Aluminium alloy |
| Cut-out dimensions | 285 (+/- 0.4) x 309 (+/- 0.4) mm |
| Standards | IEC 61000-6-2 IEC 61000-6-4 CSA C22.2 No 213 UL 61010-2-201 ANSI/ISA 12.12.01 IEC 61131-2 |
| Supply | External source |
| Marking | CE |
| Category | US10MC222569 |
| Brightness | 16 levels via touch panel |
| Fixing mode | By 12 spring clips |
| Touch panel | Analogue |
| Size | 10.4 inch |
| Port ethernet | 10BASE-T/100BASE-TX |
| Character font | Japanese (ANK, Kanji) Korean ASCII (European characters) Taiwanese (traditional Chinese) Chinese (simplified Chinese) |
| Processor name | ARM926EJ-S |
| Realtime clock | Built-in |
| Number of pages | Limited by internal memory capacity |
| Local signalling | 1 LED (green or orange) for normal operation or backlighting faulty |
| Software package | Vijeo Designer |
| Backlight lifespan | 50000 hours |
| Display resolution | 640 x 480 pixels VGA |
| Memory description | 512 KB SRAM back up of data lithium battery 128 MB flash EPROM application memory |
| Touch sensitive zone | 1024 x 1024 |
| Number of SERVICE keys | 8 |
| Immunity to microbreaks | 10 ms |
| Number of alphanumeric keys | 12 |
| Electromagnetic compatibility | Resistance to electrostatic discharge - test level: 4 kV level 3 conforming to IEC 61000-4-2 Resistance to radiated electromagnetic fields - test level: 10 V/m conforming to IEC 61000-4-3 Resistance to fast transient - test level: 2 kV level 3 conforming to IEC 61000-4-4 |
| Number of static function keys | 12 with LED and labels |
| Ambient air temperature for storage | -4...140 °F (-20...60 °C) |
| Number of dynamic function keys symb | 18 with LED |
| Ambient air temperature for operation | 32...131 °F (0...55 °C) |
MPN
HMIGK5310
