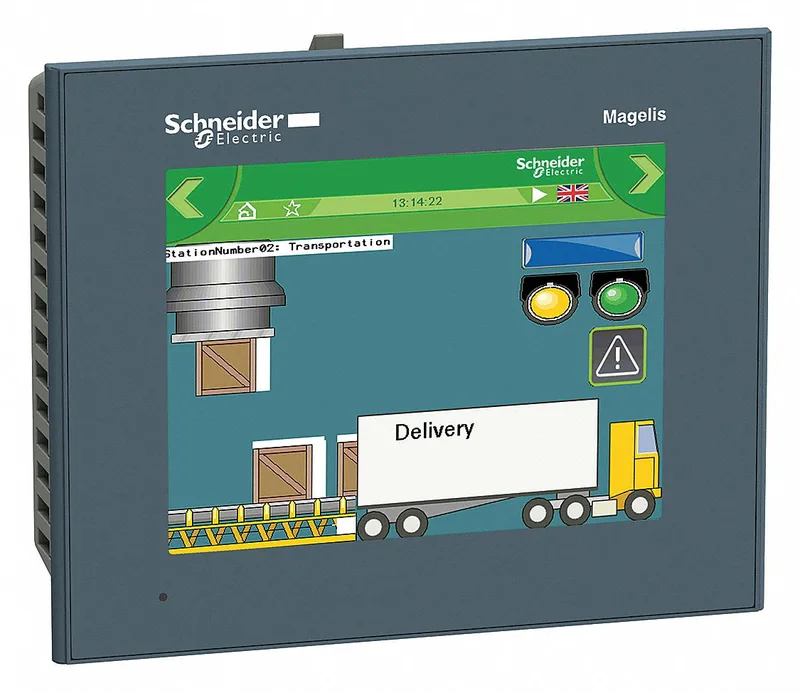

Schneider Electric HMIGTO2310
MPNHMIGTO2310
Active
HMIGTO2310 - ADVANCED TOUCHSCREE
$579.12Ref. price · indicative, final on quote
Sourced new & surplus through independent channelsAuthenticity-screened · ESD-safe packingListing updated Jul 2026
Specifications
| Parameter | Value |
|---|---|
| Battery type | Lithium internal RAM 100 days 5 day(s) 10 year(s) |
| Display type | Backlit colour TFT LCD |
| Terminal type | Touchscreen display |
| Type of cooling | Natural convection |
| Range of product | Harmony GTO |
| Product or component type | Advanced touchscreen panel |
| Integrated connection type | COM1 serial link SUB-D 9 RS232C 2400...115200 bps COM2 serial link RJ45 RS485 2400...115200 bps COM2 serial link RJ45 RS485 187.5 kbps Siemens MPI Ethernet RJ45 10BASE-T/100BASE-TX Ethernet RJ45 IEEE 802.3 USB 2.0 type A USB 2.0 type mini B |
| Supply voltage limits | 19.2...28.8 V |
| Supply voltage | 24 V DC |
| Inrush current | 30 A |
| Maximum power consumption in | 6.5 W when power is not supplied to external devices 4.5 W when backlight is OFF 5 W when backlight is dimmed 10.5 W |
| Enclosure material | PPT |
All specifications
| Parameter | Value |
|---|---|
| IP degree of protection | IP20 IEC 60529 rear panel) IP65 IEC 60529 front panel) |
| NEMA degree of protection | NEMA 4X front panel (indoor use) |
| Downloadable protocols | Schneider Electric Modicon Modbus Schneider Electric Modicon Uni-TE Schneider Electric Modicon Modbus Plus Schneider Electric Modicon FIPWAY Mitsubishi Melsec third party protocols Omron Sysmac third party protocols Rockwell Automation Allen-Bradley third party protocols Siemens Simatic third party protocols Schneider Electric Modicon Modbus TCP |
| Product mounting | Flush mounting |
| Shock resistance | 147 m/s² 3 chocks in each direction X, Y and Z IEC 61131-2 |
| Relative humidity | 10...90 % without condensation |
| Operating altitude | < 6561.68 ft (2000 m) |
| Vibration resistance | 3.5 mm 5...9 Hz) - X, Y, Z directions for 10 cycles (approx. 100 min) - IEC 61131-2 1 gn 9...150 Hz) - X, Y, Z directions for 10 cycles (approx. 100 min) - IEC 61131-2 |
| Depth | 2.3 in (59.5 mm) |
| Width | 6.7 in (169.5 mm) |
| Height | 5.4 in (137 mm) |
| Display colour | 65536 colours |
| Front material | PPT |
| Standards | IEC 61000-6-2 UL 508 IEC 61131-2 |
| Supply | External source |
| Category | US10MC222569 |
| Brightness | 16 levels by touch panel 16 levels by software |
| Fixing mode | by 4 screw clamps |
| Touch panel | Resistive film, 1000000 cycles |
| Size | 5.7 inch |
| Character font | Korean Taiwanese (traditional Chinese) ASCII (European characters) Chinese (simplified Chinese) Japanese (ANK, Kanji) |
| Data backed up | 512 KB internal RAM SRAM) |
| Processor name | ARM926EJ-S |
| Local signalling | Status LED green, steady offline Status LED green, steady operating Status LED orange, flashing software starting up Status LED red, steady power supply (ON) Status LED clear, faded power supply (OFF) COM2 LED yellow, steady data is being transmitted COM2 LED yellow, faded no data transmission SD card LED green, steady card is inserted SD card LED green, faded card is not inserted or is not being accessed |
| Software package | Vijeo Designer |
| Backlight lifespan | 50000 hours white 77 °F (25 °C) |
| Display resolution | 320 x 240 pixels QVGA |
| Memory description | Flash EPROM, 96 MB |
| Touch sensitive zone | 1024 x 1024 |
| Data storage equipment | SD card, SDHC card, <= 32 GB |
| Ambient air temperature for storage | -4...140 °F (-20...60 °C) |
| Ambient air temperature for operation | 32...131 °F (0...55 °C) |
| Resistance to electrostatic discharge | 6 kV contact discharge IEC 61000-4-2 level 3 |
MPN
HMIGTO2310
