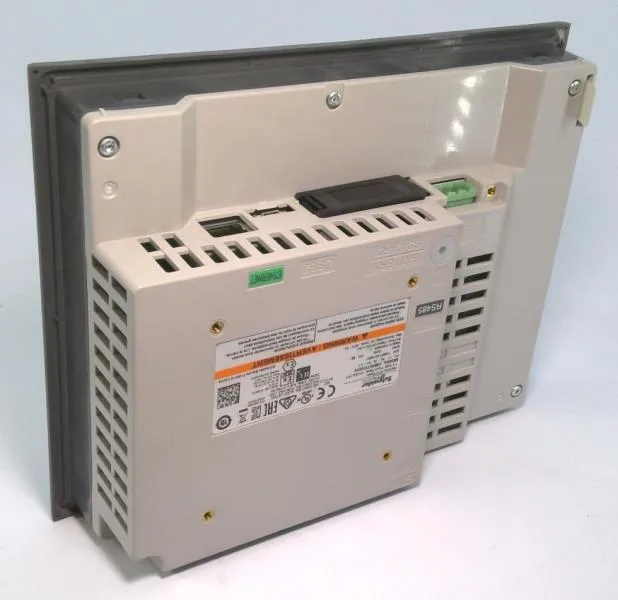

Schneider Electric HMIGTO3510

Schneider HMIGTO3510 Harmony GTO 7" Touchscreen HMI, 96 MB

MPNHMIGTO3510
Active

Schneider Harmony GTO HMIGTO3510 touchscreen HMI, 7.0" color display, 800 x 480 WVGA resolution, resistive touch, 96 MB Flash memory, Modbus TCP, USB, RS232/485, IP20, NEMA 4X front panel, flush mounting.

$642.62Ref. price · indicative, final on quote
Schneider Electric HMIGTO3510 datasheet (PDF)
Sourced new & surplus through independent channelsAuthenticity-screened · ESD-safe packingListing updated Jul 2026

Specifications

HMIGTO3510 key specifications
ParameterValue
Battery typeLithium internal RAM 100 days 5 day(s) 10 year(s)
Display typeBacklit colour TFT LCD
Terminal typeTouchscreen display
Type of coolingNatural convection
Range of productHarmony GTO
Control button type8 operation defined using Vijeo Designer push-button key F1...F8
Product or component typeAdvanced touchscreen panel
Integrated connection typeCOM1 serial link SUB-D 9 RS232C 2400...115200 bps COM2 serial link RJ45 RS485 2400...115200 bps COM2 serial link RJ45 RS485 187.5 kbps Siemens MPI Ethernet RJ45 10BASE-T/100BASE-TX Ethernet RJ45 IEEE 802.3 USB 2.0 type A USB 2.0 type mini B
Supply voltage limits19.2...28.8 V
Supply voltage24 V DC
Inrush current30 A
Maximum power consumption in8 W when power is not supplied to external devices 5 W when backlight is OFF 5.5 W when backlight is dimmed 12 W

All specifications

HMIGTO3510 additional specifications
ParameterValue
Enclosure materialPPT
IP degree of protectionIP20 IEC 60529 rear panel) IP65 IEC 60529 front panel)
NEMA degree of protectionNEMA 4X front panel (indoor use)
Downloadable protocolsSchneider Electric Modicon Modbus Schneider Electric Modicon Uni-TE Schneider Electric Modicon Modbus Plus Schneider Electric Modicon FIPWAY Mitsubishi Melsec third party protocols Omron Sysmac third party protocols Rockwell Automation Allen-Bradley third party protocols Siemens Simatic third party protocols Schneider Electric Modicon Modbus TCP
Product mountingFlush mounting
Shock resistance147 m/s² 3 chocks in each direction X, Y and Z IEC 61131-2
Relative humidity10...90 % without condensation
Operating altitude< 6561.68 ft (2000 m)
Vibration resistance3.5 mm 5...9 Hz) - X, Y, Z directions for 10 cycles (approx. 100 min) - IEC 61131-2 1 gn 9...150 Hz) - X, Y, Z directions for 10 cycles (approx. 100 min) - IEC 61131-2
Depth2.4 in (60 mm)
Width8.6 in (218 mm)
Height6.8 in (173 mm)
Display colour65536 colours
Front materialPPT
StandardsUL 508 IEC 61000-6-2 IEC 61131-2
SupplyExternal source
CategoryUS10MC222569
Brightness16 levels by touch panel 16 levels by software
Fixing modeby 4 screw clamps
Touch panelResistive film, 1000000 cycles
Size7 inch
Character fontTaiwanese (traditional Chinese) ASCII Chinese (simplified Chinese) Japanese (ANK, Kanji) Korean
Data backed up128 kB internal RAM SRAM)
Processor nameARM926EJ-S
Local signallingStatus LED green, steady offline Status LED green, steady operating Status LED orange, flashing software starting up Status LED red, steady power supply (ON) Status LED clear, faded power supply (OFF) COM2 LED yellow, steady data is being transmitted COM2 LED yellow, faded no data transmission SD card LED green, steady card is inserted SD card LED green, faded card is not inserted or is not being accessed
Software packageVijeo Designer
Backlight lifespan50000 hours white 77 °F (25 °C)
Display resolution800 x 480 pixels WVGA
Memory descriptionFlash EPROM, 96 MB
Touch sensitive zone1024 x 1024
Data storage equipmentSD card, SDHC card, <= 32 GB
Ambient air temperature for storage-4...140 °F (-20...60 °C)
Ambient air temperature for operation32...122 °F (0...50 °C)
Resistance to electrostatic discharge6 kV contact discharge IEC 61000-4-2 level 3

Product details

Overview

The HMIGTO3510 is a Schneider Harmony GTO 7.0" color touchscreen HMI, order code HMIGTO3510, with a resistive touch panel rated for 1,000,000 cycles and a 800 x 480 pixel WVGA display. It carries 96 MB of on-board Flash memory and is powered from an external source, mounted flush to the panel with four screw clamps. The front panel meets NEMA 4X (indoor use) and the enclosure is rated IP20.

This HMI runs the Magelis operating system on an ARM926EJ-S processor. The 96 MB Flash memory stores the runtime application, recipes, and screen pages — enough for a medium-sized machine with several hundred tags. An additional 128 kB of internal RAM backed by a lithium battery retains alarm logs and data for up to 100 days without external power. Communication is handled through a single Ethernet port supporting Modbus TCP and Uni-TE, plus a serial port configurable for RS232 or RS485 that runs Modbus RTU, Uni-TE, or third-party protocols for Mitsubishi, Omron, Rockwell, and Siemens controllers. A USB port is available for programming and data transfer. The resistive touch panel registers input after 1,000,000 actuations; brightness adjusts through 16 levels via touch or software.

Applications

The HMIGTO3510 is suited for machine-level operator interface on packaging lines, material handling equipment, food processing machinery, and light industrial automation skids. Its NEMA 4X front panel allows washdown-capable mounting on the cabinet door, while the IP20 rear section stays inside the enclosure. The multi-protocol serial port makes it a practical choice for retrofits where the controller speaks an older fieldbus.

Within the Schneider Harmony GTO family, the HMIGTO3510 sits at the mid-range: a 7.0" WVGA display with 96 MB memory and Ethernet plus serial connectivity.

The HMIGTO3510 carries UL 508 and IEC 61131-2 compliance, and is listed under California Proposition 65. No official end-of-life notification is present in the evidence; the part is treated as an active catalog item. Sourcing is via RFQ — confirm current lead time and minimum order quantity at time of quote.
