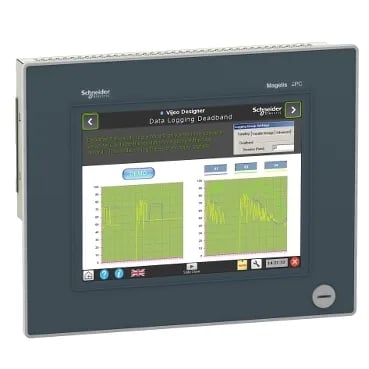

Schneider Electric HMIPWC5D0E01A
MPNHMIPWC5D0E01A
Obsolete
HMIPWC5D0E01A - TOUCHSCREEN by SCHNEIDER ELECTRIC
$1,295.40Ref. price · indicative, final on quote
StockContact for availability
MOQ1 pcs
Sourced new & surplus through independent channelsAuthenticity-screened · ESD-safe packingListing updated Jul 2026
How we verify every order →Specifications
| Parameter | Value |
|---|---|
| Memory type | 512 KB SRAM 2 GB RAM DDR2 |
| Chipset type | Intel US15W 400 MHz |
| Control type | ON/OFF push-button equipment ON and OFF) Push-button reset) |
| Display type | Active matrix colour TFT LCD with LED backlight |
| Terminal type | Touchscreen display |
| Range of product | Harmony iPC |
| Video controller type | Intel Graphics Media Accelerator (GMA) 500, 256 MB |
| Product or component type | PC panel |
| Integrated connection type | 2 Ethernet TCP/IP - RJ45 10BASE-T/100BASE-T/1000BASE-T COM1 serial link - male SUB-D 9 - RS232C - 115 kbauds USB 2.0 port - USB type A - 480 Mbit/s front panel 2 USB 2.0 port - USB type A - 480 Mbit/s top |
| Supply voltage limits | 18...30 V |
| Supply voltage | 24 V DC power supply) |
| Inrush current | 3 A |
All specifications
| Parameter | Value |
|---|---|
| Line rated current | 1.875 A |
| Power consumption in | 36 W |
| Enclosure material | Treated steel |
| IP degree of protection | IP65 EN/IEC 61131-2 front panel (indoor use)) |
| NEMA degree of protection | NEMA 4X front panel (indoor use) |
| Pollution degree | 2 EN/IEC 61131-2 |
| Shock resistance | 15 gn 11 ms IEC 60068-2-27, Ea tests |
| Relative humidity | 10...85 % EN/IEC 60068-2-30 Db 10...85 % EN/IEC 60068-2-78 |
| Operating altitude | 6561.68 ft (2000 m) EN/IEC 61131-2 |
| Vibration resistance | 1.75 mm 2...9 Hz) continuous EN/IEC 60068-2-6 Fc 3.5 mm 2...9 Hz) intermittently EN/IEC 60068-2-6 Fc 0.5 gn 9...200 Hz) continuous EN/IEC 60068-2-6 Fc 1 gn 9...200 Hz) intermittently EN/IEC 60068-2-6 Fc 1 mm 3...13.2 Hz) continuous EN/IEC 60068-2-6 Fc 0.7 gn 13.2...100 Hz) continuous EN/IEC 60068-2-6 Fc |
| Depth | 2.8 in (72 mm) |
| Width | 12.7 in (323 mm) |
| Height | 10.2 in (260 mm) |
| Bezel material | Aluminium alloy |
| Display colour | 16 million colours |
| Display material | Polyethylene sheet |
| Category | 22575-MAGELIS MC3 |
| Luminance | 41.8 fc (450 cd/m²) |
| Fixing mode | Enclosure door by fixing kit fasteners included) Panel by fixing kit fasteners included) |
| Touch panel | Analogue resistive |
| Size | 10.4 inch |
| Processor name | Atom Z510 1.1 GHz cache |
| Local signalling | Accessing CF system card (DISK) LED Yellow) Power multi-colour LED -) |
| Operating system | Windows Embedded Standard WES2009 - English Windows Embedded Standard WES2009 - French Windows Embedded Standard WES2009 - German Windows Embedded Standard WES2009 - Italian Windows Embedded Standard WES2009 - Spanish Windows Embedded Standard WES2009 - Swedish Windows Embedded Standard WES2009 - Chinese Windows Embedded Standard WES2009 - Portuguese Windows Embedded Standard WES2009 - Russian |
| Software package | Adobe PDF and multimedia reader Vijeo Citect web client Internet Explorer Viewer Word/Excel/Power Point .NET Framework 3.5 Vijeo Designer run time demo |
| Display resolution | 800 x 600 pixels SVGA |
| Data storage equipment | Compact Flash card 4 GB SLC |
| Electromagnetic compatibility | Immunity to high frequency interference EN/IEC 61131-2 Immunity to high frequency interference EN/IEC 61000-4-x Immunity to electromagnetic emissions EN 55022 Class A Immunity to electromagnetic emissions EN 55011 class A |
| View angle horizontal x vertical | 160 x 120° |
| Ambient air temperature for storage | -4...140 °F (-20...60 °C) IEC 60068-2-2 test Bb -4...140 °F (-20...60 °C) IEC 60068-2-14 test Na |
| Ambient air temperature for operation | 32...122 °F (0...50 °C) vertical installation EN/IEC 61131-2 32...122 °F (0...50 °C) vertical installation UL 508 |
| Number of slots available for expansion | 1 Compact Flash card 1 SD card |
MPN
HMIPWC5D0E01A
