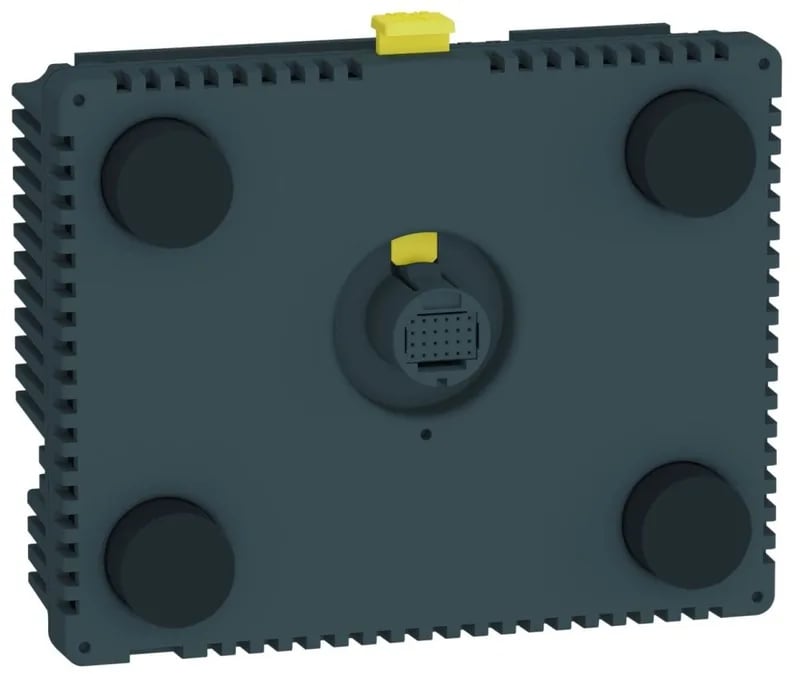

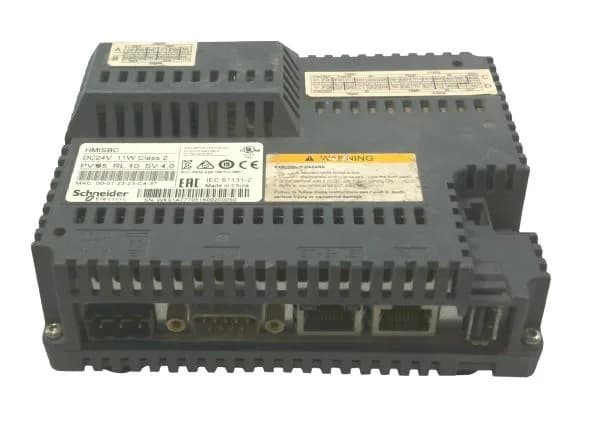

Schneider Electric HMISBC

Schneider Electric HMISBC

MPNHMISBC
Active

SCU MIXED IO REAR MODULE|SCU MIXED IO REAR MODULE

$439.42Ref. price · indicative, final on quote
Schneider Electric HMISBC datasheet (PDF)
StockContact for availability
MOQ1 pcs
Sourced new & surplus through independent channelsAuthenticity-screened · ESD-safe packingListing updated Jul 2026
How we verify every order →

Specifications

HMISBC key specifications
ParameterValue
Range of productHarmony SCU
Analogue input typeRTD at - 200...600 °C - resolution: 16 bits temperature probe: Pt 100/Pt 1000 RTD at - 50...200 °C - resolution: 16 bits temperature probe: Ni 100/Ni 1000 RTD at - 200...760 °C - resolution: 16 bits (thermocouple J) RTD at - 240...1370 °C - resolution: 16 bits (thermocouple K) RTD at 0...1600 °C - resolution: 16 bits (thermocouple R) RTD at 200...1800 °C - resolution: 16 bits (thermocouple B) RTD at 0...1600 °C - resolution: 16 bits (thermocouple S) RTD at - 200...400 °C - resolution: 16 bits (thermocouple T) RTD at - 200...900 °C - resolution: 16 bits (thermocouple E) RTD at - 200...1300 °C - resolution: 16 bits (thermocouple N)
Product or component typeController
Integrated connection type1 serial link - RJ45 - RS232/RS485 (rate: 1 Ethernet TCP/IP - RJ45 1 USB 2.0 type mini B 1 USB 2.0 type A CANopen master bus - SUB-D 9
Discrete input voltage24 V DC, discrete input logic: sink or source (positive/negative)
Supply voltage24 V (20.4...28.8 V)DC
Inrush current30 A
Discrete input current7.83 mA for fast input 5 mA for digital
Sensor power supply15...28.8 V DC >= 15 V, current (state 1): >= 5 mA 15...28.8 V DC >= 15 V, current (state 1): >= 2.5 mA =N>=2)) 3...12 ms integrator (none/run/stop)
Power consumption in15 W
Maximum input frequency100 kHz for fast input (encoder mode) - control type A/B 100 kHz for fast input - control type single phase 100 kHz for fast input - control type pulse/direction
Maximum output frequency100 kHz for fast output (PTO mode) 1 kHz for fast output (PWM mode)

All specifications

HMISBC additional specifications
ParameterValue
Enclosure materialPC/PBT
IP degree of protectionIP20 (rear panel) conforming to IEC 60529 IP65 (front panel) conforming to IEC 60529
NEMA degree of protectionNEMA 4X front panel
Downloadable protocolsModbus CANopen Modbus TCP/IP
Maximum cable distance between devicesShielded cable: Shielded cable: Unshielded cable: 10 MOhm between the I/O and internal logic > 10 MOhm between power supply and earth
Pollution degree2 conforming to IEC 60664
Shock resistance147 m/s² for 11 ms (on DIN rail) conforming to IEC 60068-2-27 294 m/s² for 6 ms (on panel mounting) conforming to IEC 60068-2-27
Storage altitude0...10000 m
Relative humidity5...85 % without condensation
Operating altitude<= 2000 m
Vibration resistance+/- 3.5 mm (f = 5...9 Hz) conforming to IEC 60068-2-6 1 gn (f = 9...150 Hz) conforming to IEC 60068-2-6
Depth102 mm
Width128 mm
Height50.65 mm
Product weight0.398 kg
StandardsUL 508 FCC Class A EN 61131-2 CSA C22.2 No 213 Class I Division 2 ANSI/ISA 12-12-01 IEC 61000-6-2
SupplyExternal source
MarkingCE
Fixing modeBy 1 nut - diameter: Ø 22 mm, mounting on: 1...6 mm thick panel
Processor nameCPU RISC
Realtime clockBuilt-in
Input impedance2.81 kOhm 4.7 kOhm
Number of pagesLimited by internal memory capacity
Local signallingNo indicator
Maximum pressure800...1114 hPa
Operating systemHarmony
Memory descriptionFlash NAND, 128 MB Internal data storage FRAM, 128 kB Application run DRAM, 128 MB
Device presentationBasic element
Analogue input range0...20 mA/4...20 mA - resolution: 12 bits, input impedance: 250 Ohm (tolerance: +/- 1 %) -10...+10 V or 0...10 V - resolution: 12 bits + sign, input impedance: >= 1 MOhm
Analogue input number2 for analog input 2 for RTDs
Analogue output range0...20 mA/4...20 mA (> 300 Ohm) for open-circuit -10...10 V/0...10 V (> 2 kOhm) for short-circuit
Discrete input number2 for fast input (normal mode) conforming to IEC 61131-2 Type 1 6 for digital input conforming to IEC 61131-2 Type 1
Analogue output number2 resistive load for 12 bits + sign
Number of common point1 for fast input (HSC mode) 1 for digital input
Absolute accuracy error+/- 0.1 % of full scale cyclic ratio 1...99% for fast output (PWM or PTO mode) 1 % of full scale cyclic ratio 1...99% for fast output (PWM or PTO mode) +/- 5 % of full scale cyclic ratio 10...90% for fast output (PWM or PTO mode) +/- 10 % of full scale cyclic ratio 20...80% for fast output (PWM or PTO mode) +/- 15 % of full scale cyclic ratio 30...70% for fast output (PWM or PTO mode)
Immunity to microbreaks10 ms
Environmental characteristicCorrosive gas free
Electromagnetic compatibilityElectrostatic discharge immunity test - test level: 8 kV (air discharge) conforming to IEC 61000-4-2 Electrostatic discharge immunity test - test level: 6 kV (contact discharge) conforming to IEC 61000-4-2 Susceptibility to electromagnetic fields - test level: 10 V/m (80 MHz...3 GHz) conforming to IEC 61000-4-3 Electrical fast transient/burst immunity test - test level: 2 kV (power lines) conforming to IEC 61000-4-4 Electrical fast transient/burst immunity test - test level: 1 kV (between analogue I/O and operating voltage) conforming to IEC 61000-4-4 Electrical fast transient/burst immunity test - test level: 2 kV (relay wires) conforming to IEC 61000-4-4 Electrical fast transient/burst immunity test - test level: 1 kV (Ethernet line) conforming to IEC 61000-4-4 Electrical fast transient/burst immunity test - test level: 1 kV (COM line) conforming to IEC 61000-4-4 Electrical fast transient/burst immunity test - test level: 1 kV (CAN line) conforming to IEC 61000-4-4 Surge immunity test - test level: 2 kV (power supply (common mode)) conforming to IEC 61000-4-5 Surge immunity test - test level: 1 kV (power supply (differential mode)) conforming to IEC 61000-4-5 Surge immunity test - test level: 1 kV common mode (digital I/O) conforming to IEC 61000-4-5 Surge immunity test - test level: 0.5 kV differential mode (digital I/O) conforming to IEC 61000-4-5 Conducted RF disturbances - test level: 10 V (0.15...80 MHz) conforming to IEC 61000-4-6 Conducted emission - test level: 150 kHz...30 MHz conforming to EN 55011 Radiated emission - test level: 30 MHz...1 GHz conforming to EN 55011
Ambient air temperature for storage-20...60 °C
Ambient air temperature for operation0...50 °C
