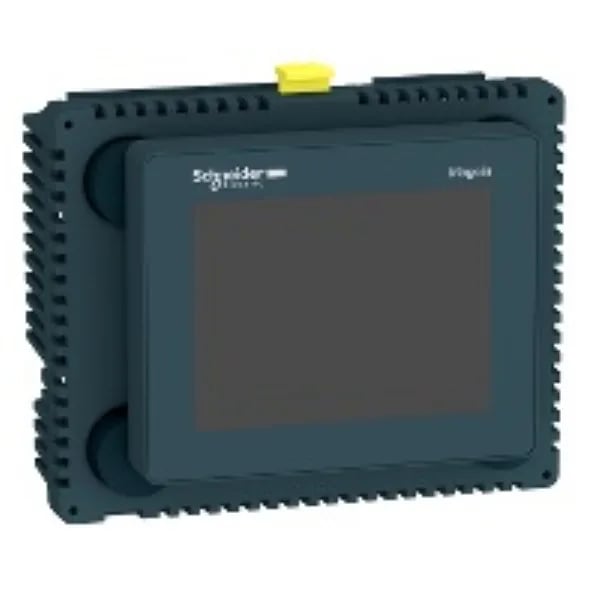

Schneider Electric HMISCU6A5
MPNHMISCU6A5
Active
3.5 HMI CONTROLLER PANEL DIGITAL IO|3.5 HMI CONTROLLER PANEL DIGITAL IO
$440.69Ref. price · indicative, final on quote
StockContact for availability
MOQ1 pcs
Sourced new & surplus through independent channelsAuthenticity-screened · ESD-safe packingListing updated Jul 2026
How we verify every order →Specifications
| Parameter | Value |
|---|---|
| Display type | with backlit LED colour TFT LCD |
| Range of product | Harmony SCU |
| Product or component type | Small touch HMI controller |
| Integrated connection type | 1 serial link - RJ45 - RS232/RS485 (rate: 1 Ethernet TCP/IP - RJ45 1 USB 2.0 type mini B 1 USB 2.0 type A CANopen master bus - SUB-D 9 |
| Discrete input voltage | 24 V DC, discrete input logic: sink or source (positive/negative) |
| Supply voltage | 24 V (20.4...28.8 V)DC |
| Inrush current | 30 A |
| Discrete input current | 7.83 mA for fast input 5 mA for digital |
| Sensor power supply | 15...28.8 V DC >= 15 V, current (state 1): >= 5 mA 15...28.8 V DC >= 15 V, current (state 1): >= 2.5 mA =N>=2)) 3...12 ms integrator (none/run/stop) |
| Power consumption in | 15 W |
| Maximum input frequency | 100 kHz for fast input (encoder mode) - control type A/B 100 kHz for fast input - control type single phase 100 kHz for fast input - control type pulse/direction |
| Maximum output frequency | 100 kHz for fast output (PTO mode) 1 kHz for fast output (PWM mode) |
All specifications
| Parameter | Value |
|---|---|
| Enclosure material | PC/PBT |
| IP degree of protection | IP20 (rear panel) conforming to IEC 60529 IP65 (front panel) conforming to IEC 60529 |
| NEMA degree of protection | NEMA 4X front panel |
| Downloadable protocols | CANopen Modbus TCP/IP Modbus |
| Maximum cable distance between devices | Shielded cable: Shielded cable: Unshielded cable: 10 MOhm between the I/O and internal logic > 10 MOhm between power supply and earth |
| Pollution degree | 2 conforming to IEC 60664 |
| Shock resistance | 147 m/s² for 11 ms (on DIN rail) conforming to IEC 60068-2-27 294 m/s² for 6 ms (on panel mounting) conforming to IEC 60068-2-27 |
| Storage altitude | 0...10000 m |
| Relative humidity | 5...85 % without condensation |
| Operating altitude | <= 2000 m |
| Vibration resistance | +/- 3.5 mm (f = 5...9 Hz) conforming to IEC 60068-2-6 1 gn (f = 9...150 Hz) conforming to IEC 60068-2-6 |
| Depth | 102 mm |
| Width | 128 mm |
| Height | 74.95 mm |
| Product weight | 0.512 kg |
| Standards | IEC 61000-6-2 FCC Class A UL 508 EN 61131-2 CSA C22.2 No 213 Class I Division 2 ANSI/ISA 12-12-01 |
| Supply | External source |
| Marking | CE |
| Brightness | 16 levels via touch panel |
| Fixing mode | By 1 nut - diameter: Ø 22 mm, mounting on: 1...6 mm thick panel |
| Touch panel | Analogue |
| Size | 3.5 inch |
| Character font | Japanese (ANK, Kanji) ASCII Taiwanese (traditional Chinese) Korean Chinese (simplified Chinese) |
| Processor name | ARM926EJ-S |
| Realtime clock | Built-in |
| Input impedance | 2.81 kOhm 4.7 kOhm |
| Number of pages | Limited by internal memory capacity |
| Local signalling | No indicator |
| Maximum pressure | 800...1114 hPa |
| Software package | SoMachine |
| Backlight lifespan | 50000 hours with 65000 colours |
| Display resolution | 320 x 240 pixels QVGA |
| Memory description | Flash NAND, 128 MB Internal data storage FRAM, 128 kB Application run DRAM, 128 MB |
| Device presentation | Complete product |
| Discrete input number | 2 for fast input (normal mode) conforming to IEC 61131-2 Type 1 14 for digital input conforming to IEC 61131-2 Type 1 |
| Number of common point | 1 for fast input (HSC mode) 2 for digital input |
| Absolute accuracy error | +/- 0.1 % of full scale cyclic ratio 1...99% for fast output (PWM or PTO mode) 1 % of full scale cyclic ratio 1...99% for fast output (PWM or PTO mode) +/- 5 % of full scale cyclic ratio 10...90% for fast output (PWM or PTO mode) +/- 10 % of full scale cyclic ratio 20...80% for fast output (PWM or PTO mode) +/- 15 % of full scale cyclic ratio 30...70% for fast output (PWM or PTO mode) |
| Immunity to microbreaks | 10 ms |
| View angle horiz x vert | 60° left 60° right 40° top 60° bottom |
| Environmental characteristic | Corrosive gas free |
| Electromagnetic compatibility | Electrostatic discharge immunity test - test level: 8 kV (air discharge) conforming to IEC 61000-4-2 Electrostatic discharge immunity test - test level: 6 kV (contact discharge) conforming to IEC 61000-4-2 Susceptibility to electromagnetic fields - test level: 10 V/m (80 MHz...3 GHz) conforming to IEC 61000-4-3 Electrical fast transient/burst immunity test - test level: 2 kV (power lines) conforming to IEC 61000-4-4 Electrical fast transient/burst immunity test - test level: 1 kV (between analogue I/O and operating voltage) conforming to IEC 61000-4-4 Electrical fast transient/burst immunity test - test level: 2 kV (relay wires) conforming to IEC 61000-4-4 Electrical fast transient/burst immunity test - test level: 1 kV (Ethernet line) conforming to IEC 61000-4-4 Electrical fast transient/burst immunity test - test level: 1 kV (COM line) conforming to IEC 61000-4-4 Electrical fast transient/burst immunity test - test level: 1 kV (CAN line) conforming to IEC 61000-4-4 Surge immunity test - test level: 2 kV (power supply (common mode)) conforming to IEC 61000-4-5 Surge immunity test - test level: 1 kV (power supply (differential mode)) conforming to IEC 61000-4-5 Surge immunity test - test level: 1 kV common mode (digital I/O) conforming to IEC 61000-4-5 Surge immunity test - test level: 0.5 kV differential mode (digital I/O) conforming to IEC 61000-4-5 Conducted RF disturbances - test level: 10 V (0.15...80 MHz) conforming to IEC 61000-4-6 Conducted emission - test level: 150 kHz...30 MHz conforming to EN 55011 Radiated emission - test level: 30 MHz...1 GHz conforming to EN 55011 |
| Ambient air temperature for storage | -20...60 °C |
| Ambient air temperature for operation | 0...50 °C |
