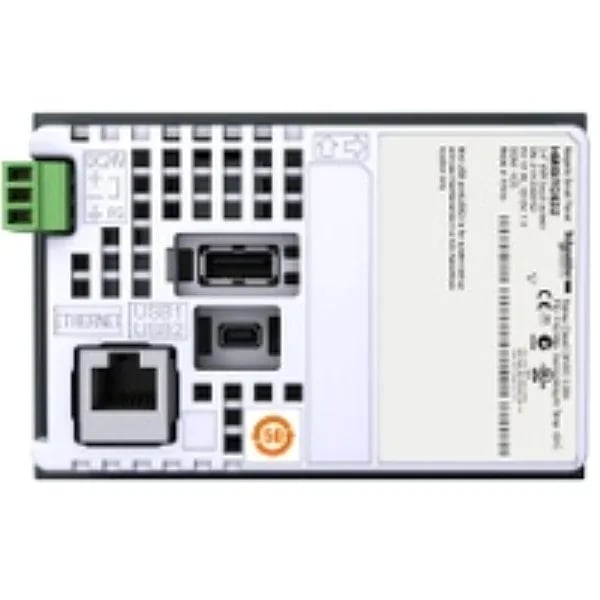

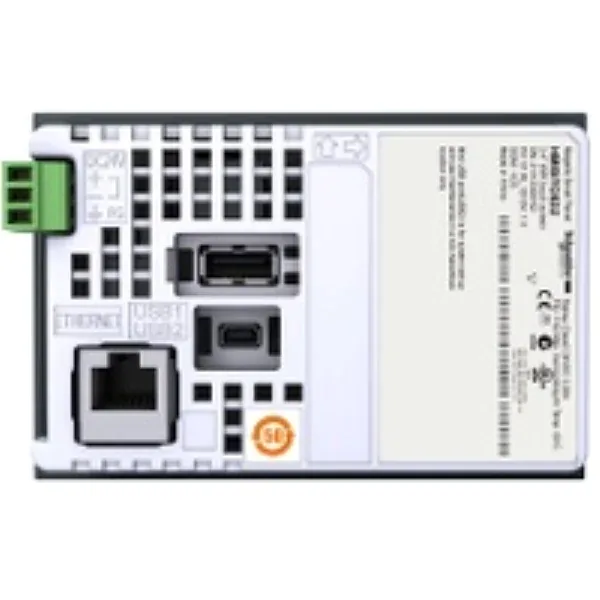

Schneider Electric HMISTO532
MPNHMISTO532
Obsolete
HMISTO532 by SQUARE D
$623.87Ref. price · indicative, final on quote
StockContact for availability
MOQ1 pcs
Sourced new & surplus through independent channelsAuthenticity-screened · ESD-safe packingListing updated Jul 2026
How we verify every order →Specifications
| Parameter | Value |
|---|---|
| Display type | Backlit monochrome STN LCD |
| Range of product | Harmony STO & STU |
| Product or component type | Touch panel screen |
| Integrated connection type | 1 USB 2.0 type mini B 1 USB 2.0 type A power supply - removable screw terminal block 1 Ethernet TCP/IP - 1 RJ45 |
| Supply voltage | 24 V DC +/- 20 % |
| Inrush current | 30 A |
| Power consumption in | 5 W |
| Processor frequency | 333 MHz |
| Enclosure material | PPT |
| IP degree of protection | IP20 IEC 60529 rear panel) IP65 IEC 60529 front panel) |
| NEMA degree of protection | NEMA 4X front panel indoor use) |
| Downloadable protocols | XWAY TCP/IP Modbus TCP/IP Third party protocols |
All specifications
| Parameter | Value |
|---|---|
| Shock resistance | 15 gn 11 msIEC 60068-2-27 |
| Relative humidity | 0...90 % without condensation |
| Operating altitude | <= 6561.68 ft (2000 m) |
| Vibration resistance | +/- 3.5 mm 5...9 Hz) IEC 60068-2-6 1 gn 9...150 Hz) IEC 60068-2-6 |
| Background colour | White, pink and red |
| Standards | UL 508 FCC Class A IEC 61000-6-2 UL 1604 EN 61131-2 |
| Supply | External source |
| Marking | CE |
| Category | 22569-MAGELIS XBT-GT (AND XBT-G) |
| Contrast | 16 levels via touch panel |
| Brightness | 8 levels |
| Fixing mode | By 2 spring clips 1.6...5 mm thick panel |
| Touch panel | Analogue |
| Size | 3.4 inch |
| Port ethernet | 10/100BASE-TX |
| Character font | Korean ASCII Japanese (ANK, Kanji) Chinese (simplified Chinese) Taiwanese (traditional Chinese) |
| Processor name | CPU RISC |
| Realtime clock | Access to the PLC real-time clock |
| Number of pages | Limited by internal memory capacity |
| Local signalling | 1 LED (green) for normal operation |
| Backlight lifespan | 10000 hours red 50000 hours pink 50000 hours white |
| Display resolution | 200 x 80 pixels |
| Memory description | Application memory 16 MB Back up of data 128 kB |
| Immunity to microbreaks | 3 ms |
| Electromagnetic compatibility | Resistance to radiated electromagnetic fields - test level: 10 V/m conforming to IEC 61000-4-3 |
| Ambient air temperature for storage | -4...140 °F (-20...60 °C) |
| Ambient air temperature for operation | 32...122 °F (0...50 °C) |
MPN
HMISTO532
