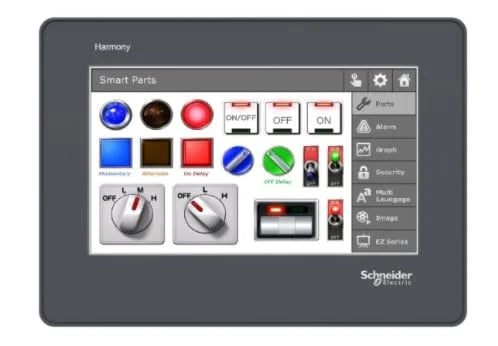

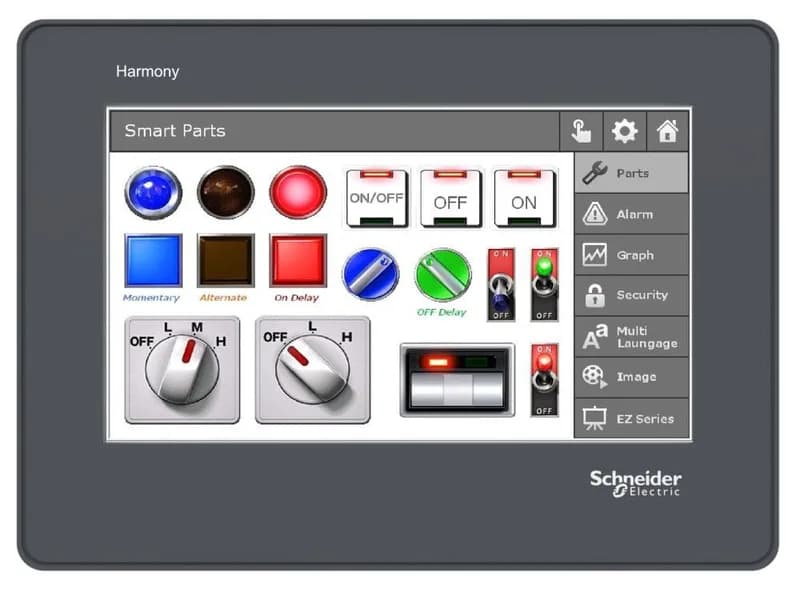

Schneider Electric HMISTO705
MPNHMISTO705
Active
4.3 COLOR TOUCH PANEL RS232 TERM BLOCK|4.3 COLOR TOUCH PANEL RS232 TERM BLOCK
$179.07Ref. price · indicative, final on quote
StockContact for availability
MOQ1 pcs
Sourced new & surplus through independent channelsAuthenticity-screened · ESD-safe packingListing updated Jul 2026
How we verify every order →Specifications
| Parameter | Value |
|---|---|
| Display type | Colour TFT LCD |
| Range of product | Harmony STO & STU |
| Product or component type | Touch panel screen |
| Integrated connection type | 1 USB 2.0 type mini B 1 USB 2.0 type A 1 serial link - 9-pin terminal block - RS232C 2400...115200 bps) |
| Supply voltage | 12...24 V DC - 10...20 % |
| Power consumption in | 7.5 W |
| Enclosure material | PPT |
| IP degree of protection | IP65f front panel) IP20 rear panel) |
| NEMA degree of protection | NEMA 4X/13 front panel indoor use) |
| Downloadable protocols | Third party protocols Modbus |
| Shock resistance | 15 gn 11 msIEC 61131-2 |
| Relative humidity | 10...90 % without condensation |
All specifications
| Parameter | Value |
|---|---|
| Operating altitude | 6561.68 ft (2000 m) |
| Vibration resistance | 1 gn 5...150 Hz) IEC 61131-2 3.5 mm constant amplitude 5...150 Hz) IEC 61131-2 |
| Depth | 1.5 in (38.8 mm) |
| Width | 4.9 in (124.9 mm) |
| Height | 3.6 in (90.4 mm) |
| Display colour | 65536 colours |
| Front material | Plastic |
| Cut-out dimensions | 77.5 x 112.5 mm 66 x 105 mm with mounting adaptor |
| Standards | ANSI/ISA 12.12.01 CSA C22.2 No 142 EN 61000-6-2 CSA C22.2 No 213 UL 61010-1 EN 61131-2 EN 61000-6-4 UL 61010-2-201 |
| Supply | External source |
| Category | US10MC222569 |
| Brightness | 16 levels via touch panel |
| Fixing mode | By 2 installation fasteners 1.5 to 6 mm thick panel |
| Touch panel | Analogue |
| Size | 4.3 inch |
| Character font | ASCII (European characters) Chinese (simplified Chinese) Korean Japanese (ANK, Kanji) Cyrillic Taiwanese (traditional Chinese) |
| Processor name | ARM926EJ-S |
| Realtime clock | With RTC-battery set optional |
| Number of pages | 8999 |
| Software package | EcoStruxure Operator Terminal Expert |
| Backlight lifespan | 50000 hours white |
| Display resolution | 480 x 272 pixels |
| Memory description | Back up of data 512 KB Application memory 26 MB |
| Electromagnetic compatibility | Resistance to radiated electromagnetic fields - test level: 10 V/m (80 MHz...2.7 GHz) Resistance to electrostatic discharge - test level: 8 kV level 3 (air discharge) conforming to EN 61000-4-2 Resistance to electrostatic discharge - test level: 6 kV level 3 (direct contact) conforming to EN 61000-4-2 |
| Ambient air temperature for storage | -4...140 °F (-20...60 °C) |
| Ambient air temperature for operation | 32...122 °F (0...50 °C) |
