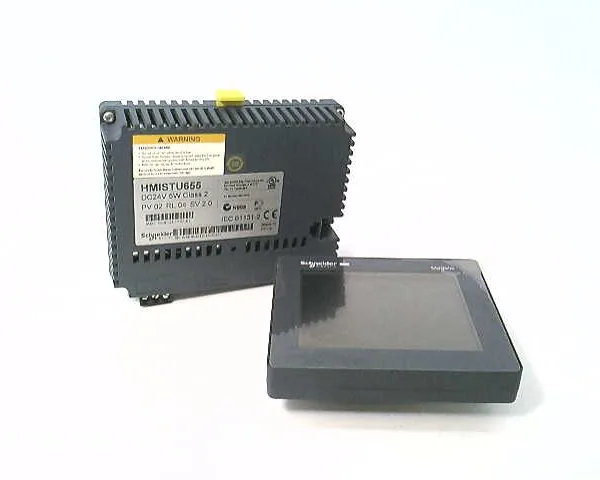

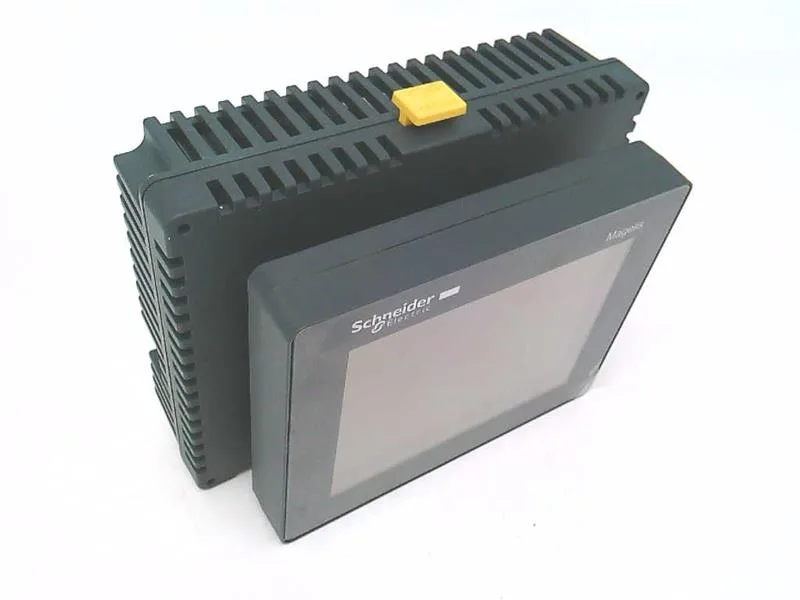

Schneider Electric HMISTU655
MPNHMISTU655
Active
TOUCH PANEL SCREEN 3"|SQD HMISTU655 TOUCH PANEL SCREEN 3"
$335.28 – $878.12Ref. price · indicative, final on quote
Sourced new & surplus through independent channelsAuthenticity-screened · ESD-safe packingListing updated Jul 2026
Specifications
| Parameter | Value |
|---|---|
| Display type | QVGA TFT colour touchscreen |
| Range of product | Harmony STO & STU |
| Product or component type | Touch panel screen |
| Integrated connection type | 1 USB 2.0 type mini B 1 USB 2.0 type A COM1 serial link - female RJ45 - RS232C/RS485 power supply - removable screw terminal block 1 Ethernet - RJ45 |
| Supply voltage limits | 20.4...28.8 V |
| Supply voltage | 24 V DC |
| Inrush current | 30 A |
| Power consumption in | 6.5 W |
| Enclosure material | PC/PBT |
| IP degree of protection | IP20 IEC 60529 rear panel) IP65 IEC 60529 front panel) |
| NEMA degree of protection | NEMA 4X front panel indoor use) |
| Downloadable protocols | Modbus TCP/IP Modbus Uni-TE Third party protocols |
All specifications
| Parameter | Value |
|---|---|
| Shock resistance | 15 gn 11 msIEC 60068-2-27 |
| Relative humidity | 0...85 % without condensation |
| Operating altitude | <= 6561.68 ft (2000 m) |
| Vibration resistance | +/- 3.5 mm 5...9 Hz) IEC 60068-2-6 1 gn 9...150 Hz) IEC 60068-2-6 |
| Depth | 2.2 in (55.3 mm) |
| Width | 4.6 in (118 mm) |
| Height | 3.86 in (98.15 mm) |
| Display colour | 65536 colours |
| Standards | IEC 61000-6-2 IEC 61131-2 UL 1604 UL 508 FCC Class A |
| Supply | External source |
| Marking | With Schneider logo CE |
| Category | US10MC222569 |
| Brightness | 16 levels |
| Fixing mode | Ø 22 mm hole |
| Touch panel | Analogue |
| Size | 3.5 inch |
| Character font | Chinese (simplified Chinese) Japanese (ANK, Kanji) ASCII Korean Taiwanese (traditional Chinese) |
| Processor name | ARM926EJ-S |
| Realtime clock | Access to the PLC real-time clock |
| Number of pages | Limited by internal memory capacity |
| Software package | Vijeo Designer |
| Backlight lifespan | 50000 hours |
| Display resolution | 320 x 240 pixels QVGA |
| Memory description | Application memory 16 MB Back up of data 64 kB |
| Immunity to microbreaks | 10 ms |
| Ambient air temperature for storage | -4...140 °F (-20...60 °C) |
| Resistance to electromagnetic fields | 9.1 V/m (10 V/m) IEC 61000-4-3 |
| Ambient air temperature for operation | 32...122 °F (0...50 °C) |
