Schneider HMISTU655S Harmony STU touchscreen, 3.5" QVGA

MPNHMISTU655S
Obsolete

Schneider HMISTU655S Hmi Operator Interfaces — now discontinued, supplied from remaining surplus and broker stock.

$457.20Ref. price · indicative, final on quote
Schneider Electric HMISTU655S datasheet (PDF)
Sourced new & surplus through independent channelsAuthenticity-screened · ESD-safe packingListing updated Jul 2026

Specifications

HMISTU655S key specifications
ParameterValue
Display typeQVGA TFT colour touchscreen
Range of productHarmony STO & STU
Product or component typeTouch panel screen
Integrated connection type1 USB 2.0 type mini B 1 USB 2.0 type A COM1 serial link - female RJ45 - RS232C/RS485 power supply - removable screw terminal block
Supply voltage limits20.4...28.8 V
Supply voltage24 V DC
Inrush current30 A
Power consumption in6.5 W
Enclosure materialPC/PBT
IP degree of protectionIP20 IEC 60529 rear panel) IP65 IEC 60529 front panel)
NEMA degree of protectionNEMA 4X front panel (indoor use)
Downloadable protocolsThird party protocols Modbus TCP/IP Uni-TE Modbus

All specifications

HMISTU655S additional specifications
ParameterValue
Shock resistance15 gn 11 msIEC 60068-2-27
Relative humidity0...85 % without condensation
Operating altitude<= 6561.68 ft (2000 m)
Vibration resistance+/- 3.5 mm 5...9 Hz) IEC 60068-2-6 1 gn 9...150 Hz) IEC 60068-2-6
Depth2.2 in (55.3 mm)
Width4.6 in (118 mm)
Height3.86 in (98.15 mm)
Display colour65536 colours
StandardsIEC 61000-6-2 UL 1604 IEC 61131-2 FCC Class A UL 508
SupplyExternal source
MarkingCE
CategoryUS10MC222569
Brightness16 levels
Fixing modeØ 22 mm hole
Touch panelAnalogue
Size3.5 inch
Character fontChinese (simplified Chinese) Japanese (ANK, Kanji) Taiwanese (traditional Chinese) Korean ASCII
Processor nameARM926EJ-S
Realtime clockAccess to the PLC real-time clock
Number of pagesLimited by internal memory capacity
Software packageVijeo Designer
Backlight lifespan50000 hours
Display resolution320 x 240 pixels QVGA
Memory descriptionApplication memory 16 MB Back up of data 64 kB
Immunity to microbreaks10 ms
Ambient air temperature for storage-4...140 °F (-20...60 °C)
Resistance to electromagnetic fields9.1 V/m (10 V/m) IEC 61000-4-3
Ambient air temperature for operation32...122 °F (0...50 °C)

Product details

Overview

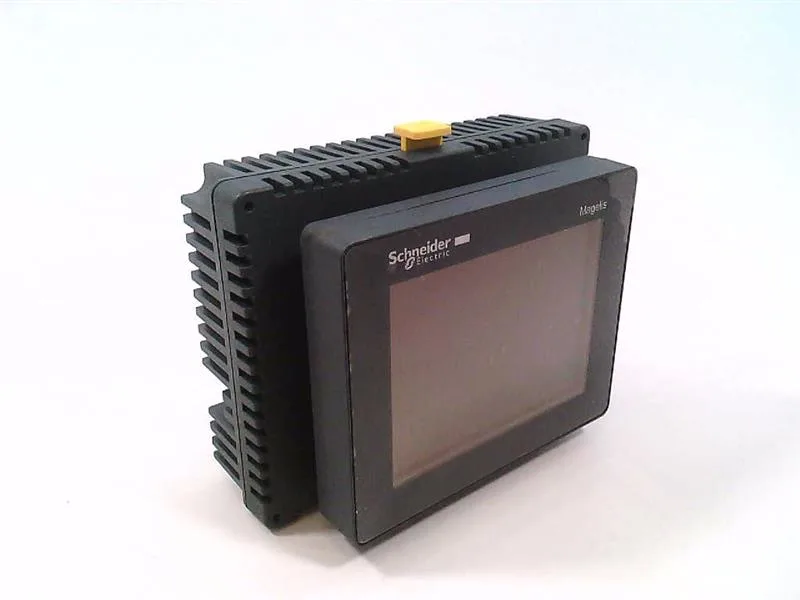

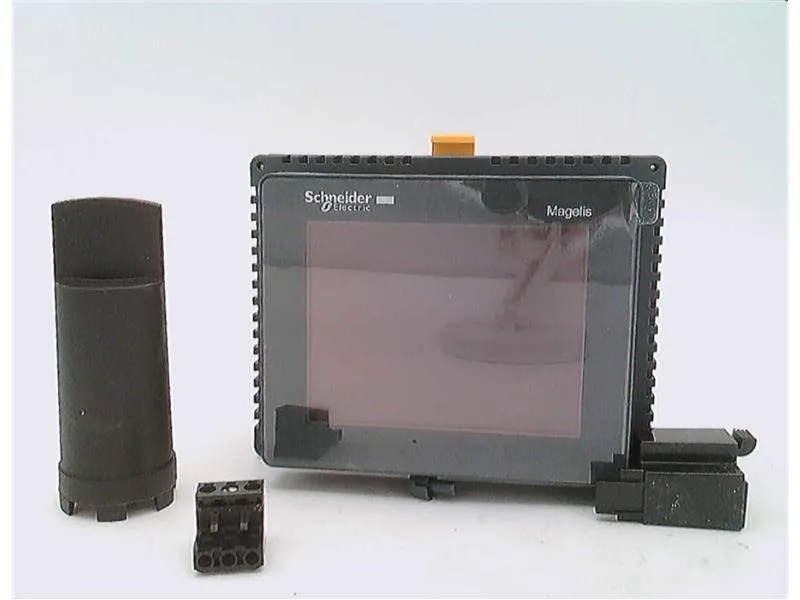

The HMISTU655S is a Schneider Harmony STU touch panel screen with a 3.5 inch QVGA TFT colour display at 320 x 240 pixels and 65536 colours, driven by an ARM926EJ-S processor. It runs on a 24 VDC external supply drawing 6.5 W, with IP65 sealing on the front panel and a NEMA 4X rating for indoor use, suiting it for washdown or dusty environments.

Integration

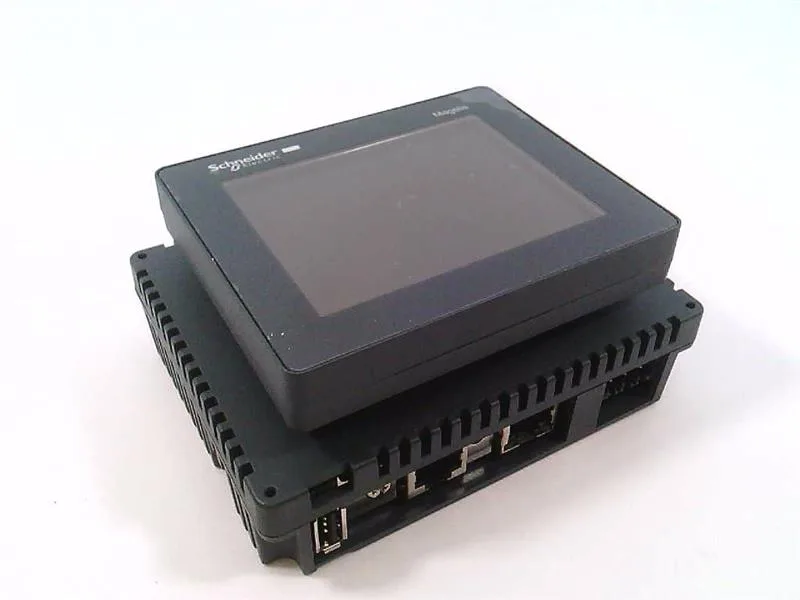

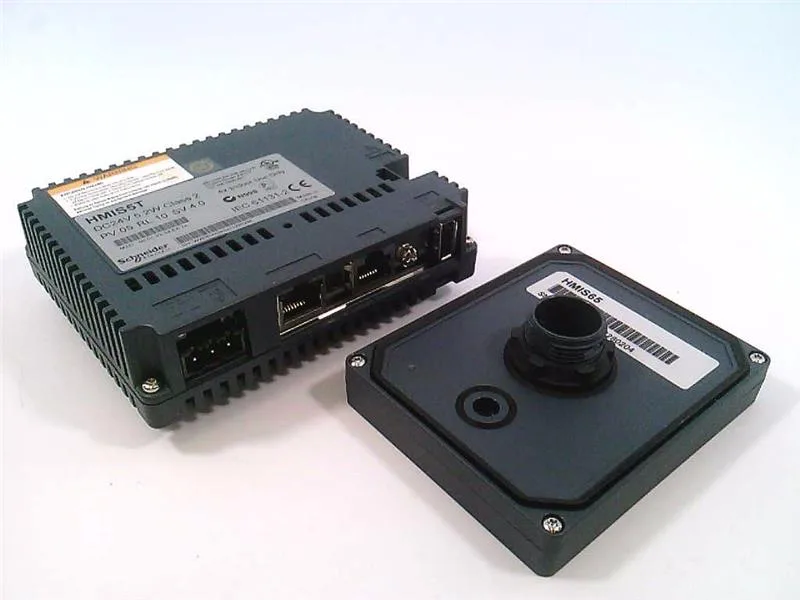

Connectivity includes one USB 2.0 type mini B, one USB 2.0 type A, and a COM1 serial link on female RJ45 supporting RS232C/RS485, with protocol support for Modbus TCP/IP and Uni-TE. The panel mounts via Ø 22 mm holes and carries CE, cULus, and Marine certifications, with immunity to microbreaks up to 10 ms.
