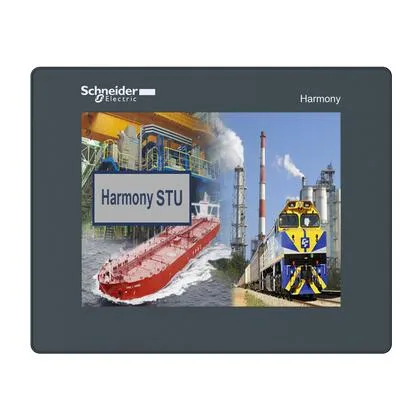

Schneider Electric HMISTU855
MPNHMISTU855
Active
Touch panel screen, Harmony STO & STU, 5''7 Color|Touch panel screen, Harmony STO & STU, 5''7 Color
$395.00 – $1,165.00Ref. price · indicative, final on quote
Sourced new & surplus through independent channelsAuthenticity-screened · ESD-safe packingListing updated Jul 2026
Specifications
| Parameter | Value |
|---|---|
| Display type | QVGA TFT colour touchscreen |
| Range of product | Harmony STO & STU |
| Product or component type | Touch panel screen |
| Integrated connection type | 1 USB 2.0 type mini B 1 USB 2.0 type A COM1 serial link - female RJ45 - RS232C/RS485 power supply - removable screw terminal block 1 Ethernet - RJ45 |
| Supply voltage limits | 20.4...28.8 V |
| Supply voltage | 24 V DC |
| Inrush current | 30 A |
| Power consumption in | 6.8 W |
| Processor frequency | 333 MHz |
| Enclosure material | PC/PBT and PAA |
| IP degree of protection | IP20 IEC 60529 rear panel) IP65 IEC 60529 front panel) |
| NEMA degree of protection | NEMA 4X front panel indoor use) |
All specifications
| Parameter | Value |
|---|---|
| Downloadable protocols | Uni-TE Modbus TCP/IP Third party protocols Modbus |
| Shock resistance | 15 gn 11 msIEC 60068-2-27 |
| Relative humidity | 0...85 % without condensation |
| Operating altitude | <= 6561.68 ft (2000 m) |
| Vibration resistance | +/- 3.5 mm 5...9 Hz) IEC 60068-2-6 1 gn 9...150 Hz) IEC 60068-2-6 |
| Depth | 2.2 in (56.5 mm) |
| Width | 6.4 in (163 mm) |
| Height | 5.08 in (129.15 mm) |
| Display colour | 65536 colours |
| Standards | UL 1604 FCC Class A IEC 61000-6-2 IEC 61131-2 UL 508 |
| Supply | External source |
| Marking | With Schneider logo CE |
| Category | US10MC222569 |
| Brightness | 16 levels |
| Fixing mode | Ø 22 mm hole |
| Touch panel | Analogue |
| Size | 5.7 inch |
| Character font | Taiwanese (traditional Chinese) Japanese (ANK, Kanji) Chinese (simplified Chinese) ASCII Korean |
| Processor name | CPU ARM9 |
| Realtime clock | Access to the PLC real-time clock |
| Number of pages | Limited by internal memory capacity |
| Backlight lifespan | 50000 hours |
| Display resolution | 320 x 240 pixels QVGA |
| Memory description | Application memory 16 MB Back up of data 64 kB |
| Immunity to microbreaks | 7 ms |
| Ambient air temperature for storage | -4...140 °F (-20...60 °C) |
| Resistance to electromagnetic fields | 9.1 V/m (10 V/m) IEC 61000-4-3 |
| Ambient air temperature for operation | 32...122 °F (0...50 °C) |
