Schneider Electric HMISTU855W

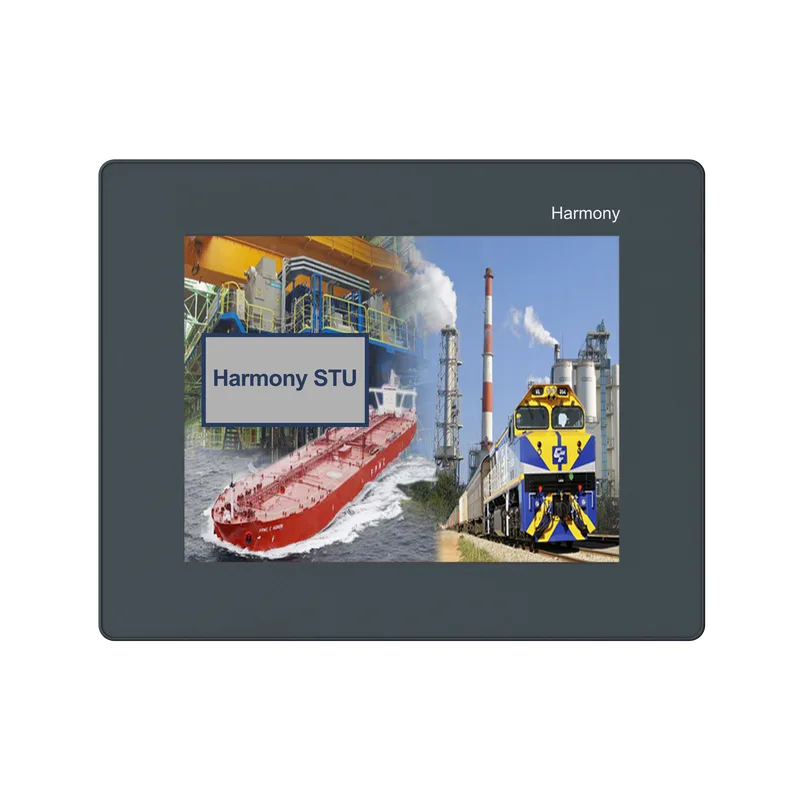

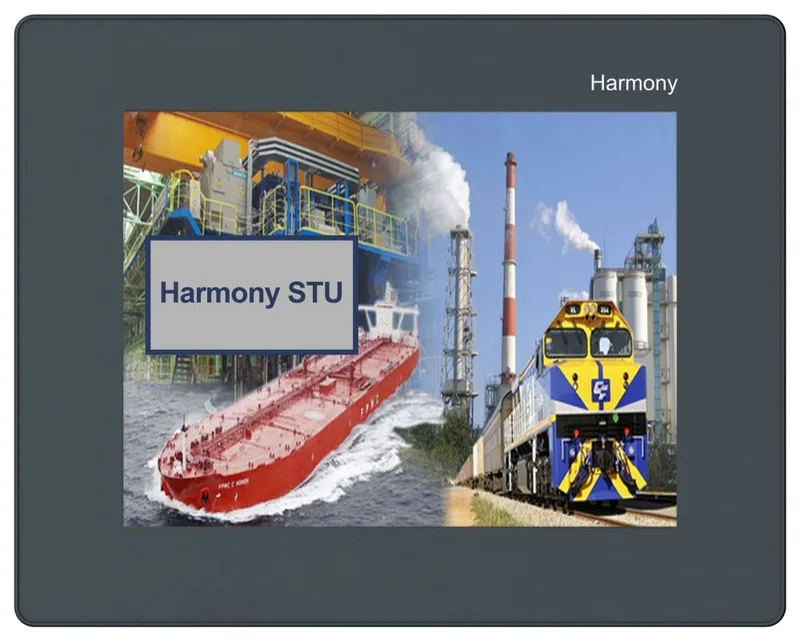

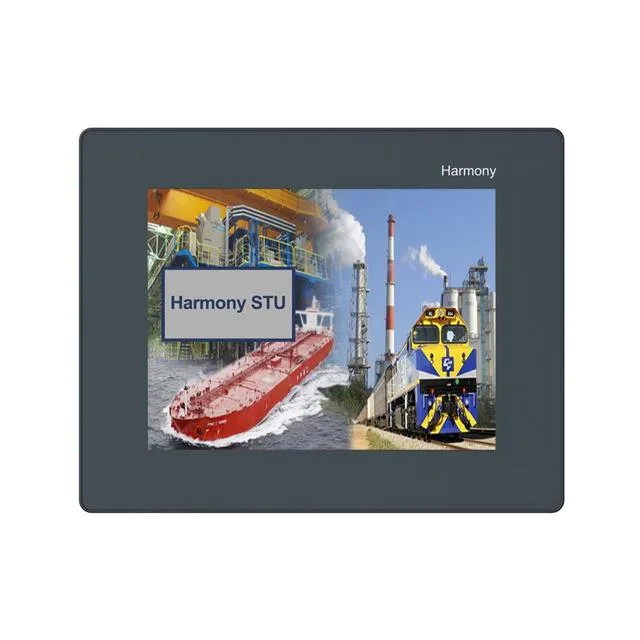

Schneider HMISTU855W Harmony STU 5.7" QVGA Touchscreen HMI

MPNHMISTU855W
Active

Schneider Electric Harmony STU HMISTU855W touchscreen HMI, 5.7" QVGA color display, 320 x 240 pixels, 16 MB application memory, Modbus TCP/IP, IP65/NEMA 4X front panel, 24 VDC external supply.

$1,105.92 – $1,165.00Ref. price · indicative, final on quote
Schneider Electric HMISTU855W datasheet (PDF)
Sourced new & surplus through independent channelsAuthenticity-screened · ESD-safe packingListing updated Jul 2026

Specifications

HMISTU855W key specifications
ParameterValue
Display typeQVGA TFT colour touchscreen
Range of productHarmony STO & STU
Product or component typeTouch panel screen
Integrated connection type1 USB 2.0 type mini B 1 USB 2.0 type A COM1 serial link - female RJ45 - RS232C/RS485 power supply - removable screw terminal block 1 Ethernet - RJ45
Supply voltage limits20.4...28.8 V
Supply voltage24 V DC
Inrush current30 A
Power consumption in6.8 W
Processor frequency333 MHz
Enclosure materialPC/PBT and PAA
IP degree of protectionIP20 IEC 60529 rear panel) IP65 IEC 60529 front panel)
NEMA degree of protectionNEMA 4X front panel (indoor use)

All specifications

HMISTU855W additional specifications
ParameterValue
Downloadable protocolsThird party protocols Uni-TE Modbus Modbus TCP/IP
Shock resistance15 gn 11 msIEC 60068-2-27
Relative humidity0...85 % without condensation
Operating altitude<= 6561.68 ft (2000 m)
Vibration resistance+/- 3.5 mm 5...9 Hz) IEC 60068-2-6 1 gn 9...150 Hz) IEC 60068-2-6
Depth2.2 in (56.5 mm)
Width6.4 in (163 mm)
Height5.08 in (129.15 mm)
Display colour65536 colours
StandardsIEC 61000-6-2 UL 508 UL 1604 IEC 61131-2 FCC Class A
SupplyExternal source
MarkingCE Without Schneider logo
CategoryUS10MC222569
Brightness16 levels
Fixing modeØ 22 mm hole
Touch panelAnalogue
Size5.7 inch
Character fontASCII Japanese (ANK, Kanji) Chinese (simplified Chinese) Taiwanese (traditional Chinese) Korean
Processor nameCPU ARM9
Realtime clockAccess to the PLC real-time clock
Number of pagesLimited by internal memory capacity
Backlight lifespan50000 hours
Display resolution320 x 240 pixels QVGA
Memory descriptionApplication memory 16 MB Back up of data 64 kB
Immunity to microbreaks7 ms
Ambient air temperature for storage-4...140 °F (-20...60 °C)
Resistance to electromagnetic fields9.1 V/m (10 V/m) IEC 61000-4-3
Ambient air temperature for operation32...122 °F (0...50 °C)

Product details

Overview

The HMISTU855W is a Schneider Harmony STU 5.7-inch color touchscreen HMI with a QVGA 320 x 240 pixel display, 16 MB application memory, and 64 kB backup data memory. The unit carries cULus, C-tick, UKCA, and UL Class 1 Div 2 certifications, with a shock rating of 15 gn 11 ms per IEC 60068-2-27.

Compared to the HMISTM6400, the HMISTU855W has a smaller 5.7" QVGA display (320 x 240 vs 800 x 480 WVGA) and less application memory (16 MB vs 1 GB device memory), making it suited for simpler machine interfaces rather than data-intensive visualization. The HMISTU855W draws 6.8 W versus 10.4 W for the HMISTM6400, and both use an external 24 VDC supply, so a panel wired for the HMISTM6400 can accept the HMISTU855W without rewiring the power source.
