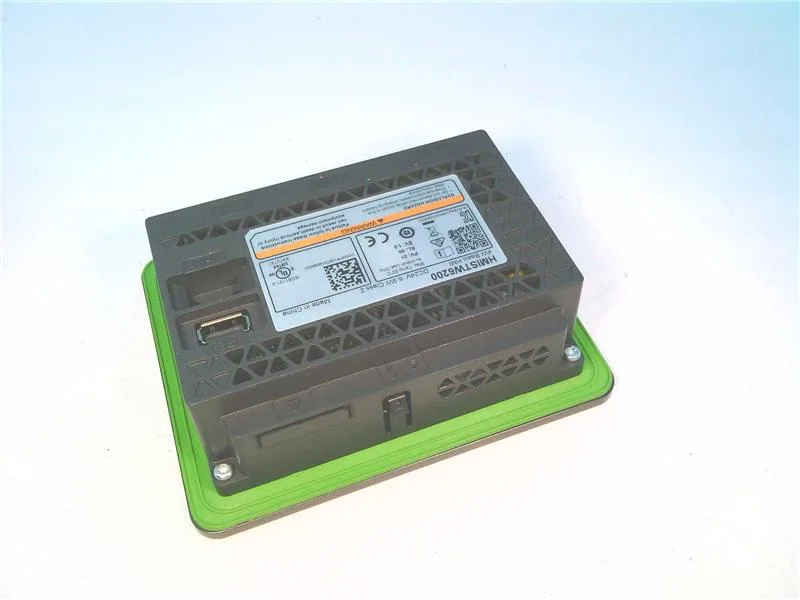

Schneider Electric HMISTW6200
MPNHMISTW6200
Active
Square D HMISTW6200 Magelis 4 W Basic|Square D HMISTW6200 Magelis 4 W Basic
$198.12 – $405.00Ref. price · indicative, final on quote
Sourced new & surplus through independent channelsAuthenticity-screened · ESD-safe packingListing updated Jul 2026
Specifications
| Parameter | Value |
|---|---|
| Display type | Colour TFT LCD |
| Range of product | Harmony ST6 |
| Product or component type | Touch panel screen |
| Integrated connection type | 1 USB 2.0 type Aback 1 Ethernet - female RJ45bottom |
| Supply voltage | 24 V DC +/- 20 %) |
| Inrush current | 30 A |
| Power consumption in | 6.9 W |
| Enclosure material | PC |
| IP degree of protection | IP20 IEC 61131-2 rear panel) IP65 IEC 61131-2 front panel) |
| NEMA degree of protection | NEMA 4 front panel (indoor use) NEMA 13 front panel (in enclosure) |
| Shock resistance | 147 m/s² 11 ms X, Y, Z directions for 10 cycles (approx. 100 min))IEC 61131-2 |
| Relative humidity | 10...90 % non-condensing |
All specifications
| Parameter | Value |
|---|---|
| Operating altitude | 6561.68 ft (2000 m) |
| Vibration resistance | +/- 3.5 mm 5...9 Hz) X, Y, Z directions for 10 cycles (approx. 100 min) IEC 61131-2 9.8 m/s² 9...150 Hz) |
| Depth | 1.7 in (43 mm) |
| Width | 5.3 in (134.5 mm) |
| Height | 4.3 in (108.5 mm) |
| Display colour | 16 million colours |
| Front material | Aluminium |
| Cut-out dimensions | 118.5 x 92.5 mm panel cut dimension |
| Standards | IEC 61000-6-4 IEC 61000-6-2 IEC 61131-2 UL 61010-2-201 CSA C22.2 No 61010-2-201 |
| Supply | External supply |
| Marking | CE |
| Category | US10MC222565 |
| Brightness | 16 levels |
| Directives | 2014/35/EU - low voltage directive 2014/30/EU - electromagnetic compatibility |
| Fixing mode | By 2 screws 1.6...5 mm thick panel UL 61010-2-201 By 2 screws IEC 61131-2 By 2 screws IEC 61000-6-2 |
| Touch panel | Single touch analogue resistive |
| Size | 4 inch |
| Port ethernet | 10/100BASE |
| Character font | ASCII ASCII (European characters) Katakana |
| Processor name | ARM Cortex-A8 |
| Realtime clock | Built-in 0...50 °C Built-in 10...90 % RH |
| Local signalling | Status LED green, steady offline Status LED green, steady operating Status LED green, flashing operating Status LED green, faded stand-by Status LED orange, flashing software starting up Status LED red, steady power supply (ON) Status LED red, flashing operating Status LED red, off power supply (OFF) |
| Backlight lifespan | 50000 hours white |
| Display resolution | 480 x 272 pixels |
| Memory description | 512 MB device memory 512 MB user data memory 128 kB backup memory |
| Immunity to microbreaks | 2 ms |
| Electromagnetic compatibility | Electrical fast transient/burst immunity test - test level: 2 kV (power ports) conforming to IEC 61000-4-4 Electrical fast transient/burst immunity test - test level: 1 kV (signal ports) Electrostatic discharge immunity test - test level: 6 kV (contact discharge) conforming to IEC 61000-4-2 level 3 Electrostatic discharge immunity test - test level: 8 kV (air discharge) |
| Ambient air temperature for storage | -4...140 °F (-20...60 °C) |
| Ambient air temperature for operation | 32...122 °F (0...50 °C) |
MPN
HMISTW6200
