Schneider Electric ILE2K661PC1A3

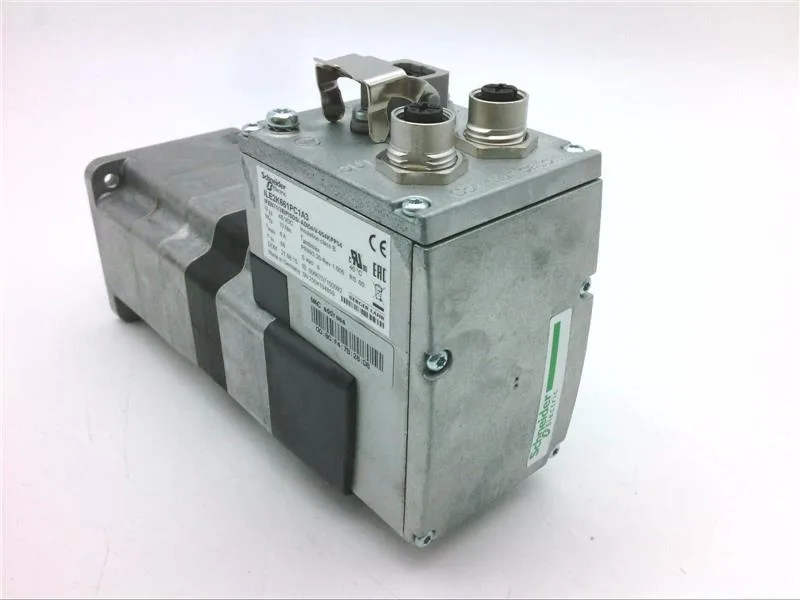

Schneider ILE2K661PC1A3 Lexium integrated drive, 10 N.m, 92 rpm

MPNILE2K661PC1A3
Obsolete

Schneider Electric Lexium integrated drive ILE2K661PC1A3, brushless DC motor, 10 N.m torque at 24 V and 48 V, 92 rpm max speed, 112 W at 48 V, 54:1 gearbox, Ethernet/IP, IP54/IP41, keyed shaft, no brake.

$838.20 – $1,830.00Ref. price · indicative, final on quote
Schneider Electric ILE2K661PC1A3 datasheet (PDF)
Sourced new & surplus through independent channelsAuthenticity-screened · ESD-safe packingListing updated Jul 2026

Specifications

ILE2K661PC1A3 key specifications
ParameterValue
Motor typeBrushless DC motor
Network typeDC
Winding typeMedium speed of rotation and medium torque
Feedback typeBLDC encoder
Gear box typeStraight teeth gear, 4 stages
Protection typeOverload of output voltage Short circuit of the output voltage Safe torque off
Type of coolingNatural convection
Range of productLexium integrated drive
Input (output type)4 signals (each be used as input or output)
Product or component typeMotion integrated drive
Supply voltage limits18...55.2 V
Discrete output voltage23...25 V

All specifications

ILE2K661PC1A3 additional specifications
ParameterValue
Supply voltage24 V 48 V
Voltage state 0 guaranteed-3...4.5 V
Voltage state 1 guaranteed15...30 V
Current consumption7000 mA peak 5500 mA maximum continuous
Discrete input current10 mA at 24 V on/STO_A safety input 3 mA at 24 V on/STO_B safety input 2 mA at 24 V 24 V signal interface
Maximum supply current0.1 A power stage disabled) 6.8 A 24 V 3.8 A 48 V
Maximum switching current100 mA per output 200 mA total
Nominal output power112 W 48 V 90 W 24 V
Number of motor poles6
PhasesSingle phase
IP degree of protectionIP41 shaft bushing: conforming to IEC 60034-5 IP54 total except shaft bushing: conforming to IEC 60034-5
Commissioning interfaceRS485 Modbus TCP 9.6, 19.2 and 38.4 kbauds)
Communication interfaceEthernet/IP, Integrated
Mounting supportFlange
Mounting holes diameter0.2 in (4.4 mm)
Number of mounting holes4
Circle diameter of the mounting holes2.90 in (73.54 mm)
Electrical connectionIndustrial connector
Shock resistance150 m/s² 1000 shocks IEC 60068-2-29
Relative humidity15...85 % without condensation
Operating altitude<= 3280.84 ft (1000 m) without derating
Vibration resistance20 m/s² 10...500 Hz) 10 cycles IEC 60068-2-6
Key width0.6 in (16 mm)
Centring collar depth0.2 in (4 mm)
StandardsIEC 61800-3, Ed 2 IEC 50347 EN 61800-3:2001, second environment IEC 60072-1 IEC 61800-3 IEC 50178 EN 61800-3 : 2001-02
Length6.9 in (174 mm)
MarkingCE
CategoryUS1PC5618288
Shaft endKeyed
Second shaftWithout second shaft end
Shaft length1.0 in (25 mm)
Detent torque38.59 lbf.in (4.36 N.m)
Holding brakeWithout
Nominal speed73 rpm 24 V 92 rpm 48 V
Rotor inertia441 kg.cm²
Accuracy error+/- 0.5 point
Nominal torque88.5 lbf.in (10 N.m) 24 V 88.5 lbf.in (10 N.m) 48 V
Shaft diameter0.4 in (10 mm)
Reduction ratio54:1 (490:9)
Device short nameILE
Motor flange size2.6 in (66 mm)
Peak stall torque185.0 lbf.in (20.9 N.m) 24 V 185.0 lbf.in (20.9 N.m) 48 V
Transmission rate125, 250, 500 kbauds
Service life in hours2500 h bearing short-term operation 15000 h bearing long-term operation
Associated fuse rating16 A
Maximum axial force fa10 N long-term operation) 80 N short-term operation)
Number of motor stacks1
Continuous stall torque102.7 lbf.in (11.6 N.m)
Maximum radial force fr200 N long-term operation) 200 N short-term operation)
Centring collar diameter0.6 in (16 mm)
Maximum mechanical speed92 rpm
Speed feedback resolution12 points/turn motor 0.55° gearbox output
Maximum torsional backlash1 °
Ambient air temperature for storage-13...158 °F (-25...70 °C)
Ambient air temperature for operation104...131 °F (40...55 °C) (with power derating of 2 % per °C) 32...104 °F (0...40 °C) (without derating)
Permissible ambient air temperature around the device221 °F (105 °C) power amplifier 230 °F (110 °C) motor

Product details

Overview

The ILE2K661PC1A3 is a Schneider Lexium integrated drive combining a brushless DC motor, 4-stage straight-teeth gearbox, and drive electronics in a single 66 mm frame. It delivers 10 N.m of torque at both 24 V and 48 V supplies, with a maximum speed of 92 rpm and a 54:1 reduction ratio. Communication is handled via integrated Ethernet/IP and RS485 Modbus TCP, with four configurable I/O signals. The unit is rated IP54 overall (IP41 at the shaft bushing) and carries CE marking plus IEC 61800-3 EMC compliance for second-environment installations.
