5 A continuous, 24 A peak — what that means on the line

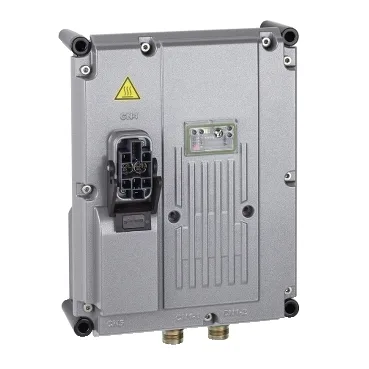

The ILM62DDD24A1000 is a detached servo drive from the PacDrive 3 family, rated for 5 A continuous under natural convection and capable of 24 A peak for acceleration and deceleration transients. The 5 A continuous figure is the thermal limit without a fan — the drive sheds heat through its IP65 enclosure, so the ambient temperature and mounting surface (typically a machine frame or backplate) directly govern how long it can hold that current before the internal temperature rise triggers a derating. The 24 A peak (roughly 4.8× the continuous rating) gives headroom for high-inertia loads or rapid indexing moves common in packaging and material-handling axes. The DC bus accepts 250...700 V, which covers most 400 V and 480 V three-phase supplies with a healthy margin for line sags.
STO and IP65 — guarding and washdown without a cabinet
The drive integrates Safe Torque Off (STO) per IEC 61800-5-2, so it can be wired directly into a safety circuit that removes torque without dropping the DC bus. This is the standard approach for guarding zones where an operator reaches into the machine envelope — the drive stops applying current to the motor, but the position feedback stays live, so re-enabling STO resumes motion without a re-home cycle. IP65 means the drive body is sealed against dust ingress and low-pressure water jets — it can be mounted directly on the machine frame, outside a control cabinet, in environments where washdown is routine. The fanless design eliminates the most common failure point in a servo drive: the cooling fan bearing. No fan also means no air path for contaminants to reach the electronics.
Standards coverage and compliance paperwork
The drive carries compliance with IEC 61800-3 (EMC for power drive systems), ISO 13849-1 and IEC 62061 (safety-related control systems), plus CSA C22.2 No 274 and UL 61800-5-1 for North American installations. The EU directives listed — 2006/42/EC machinery, 2014/30/EU EMC, and 2014/35/EU low voltage — cover CE marking for European machine builders. This is an active-production part (lifecycle status current), so the full compliance documentation — Declaration of Conformity, UL file, and safety manual — is available from Schneider Electric.
