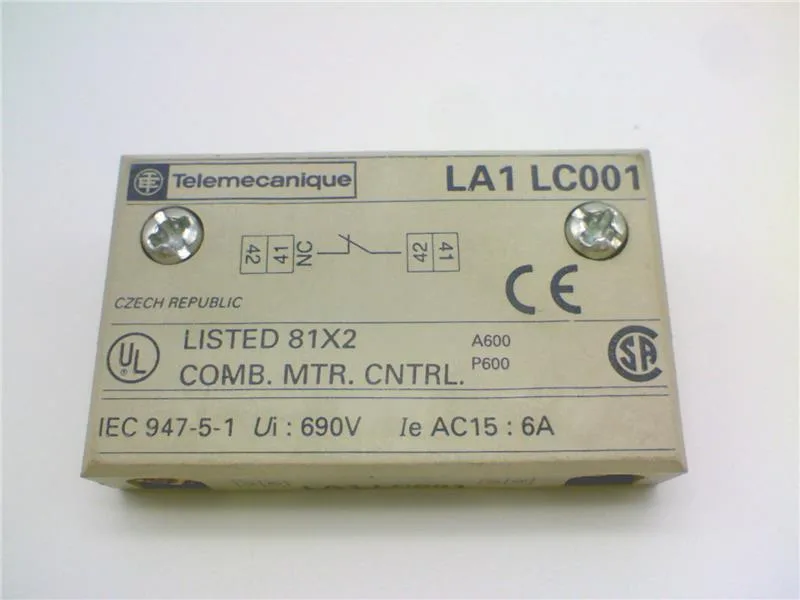

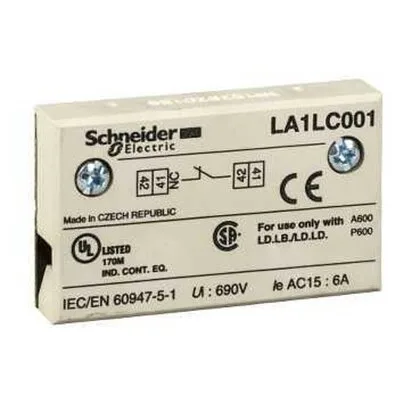

Schneider Electric LA1LC001
MPNLA1LC001
Obsolete
INTEGRAL STARTER AUX CONTACT|INTEGRAL STARTER AUX CONTACT
$35.59Ref. price · indicative, final on quote
Sourced new & surplus through independent channelsAuthenticity-screened · ESD-safe packingListing updated Jul 2026
Specifications
| Parameter | Value |
|---|---|
| Product or component type | Signalling contact blocks |
| Minimum switching voltage | 17 V for control circuit |
| Voltage | 250 V IEC 60947-5-1 |
| [Ue] rated operational voltage | 690 V AC 50/60 Hz control circuit |
| Minimum switching current | 10 mA for control circuit |
| [Ith] conventional free air thermal current | 3 A |
| Rated operational power in | 100 W 24 V DC-13 200000 cycles - control circuit 100 W 48 V DC-13 200000 cycles - control circuit 50 W 24 V DC-13 200000 cycles - control circuit 50 W 48 V DC-13 200000 cycles - control circuit 75 W 24 V DC-13 200000 cycles - control circuit 75 W 48 V DC-13 200000 cycles - control circuit |
| Pole contact composition | 1 NC |
| IP degree of protection | IP10 conforming to CSA IP10 conforming to UL |
| Mounting location | Left side Right side |
| Connections - terminals | screw clamp terminals 2 0.002...0.004 in² (1...2.5 mm²) |
| Width | 0.4 in (11 mm) |
| Range | TeSys |
| Category | 22384-STARTERS,INTEGRAL,ACCESS |
| Device short name | LA1LC |
| Auxiliary contacts operation | Instantaneous |
| Environmental characteristic | Standard environment |
MPN
LA1LC001
