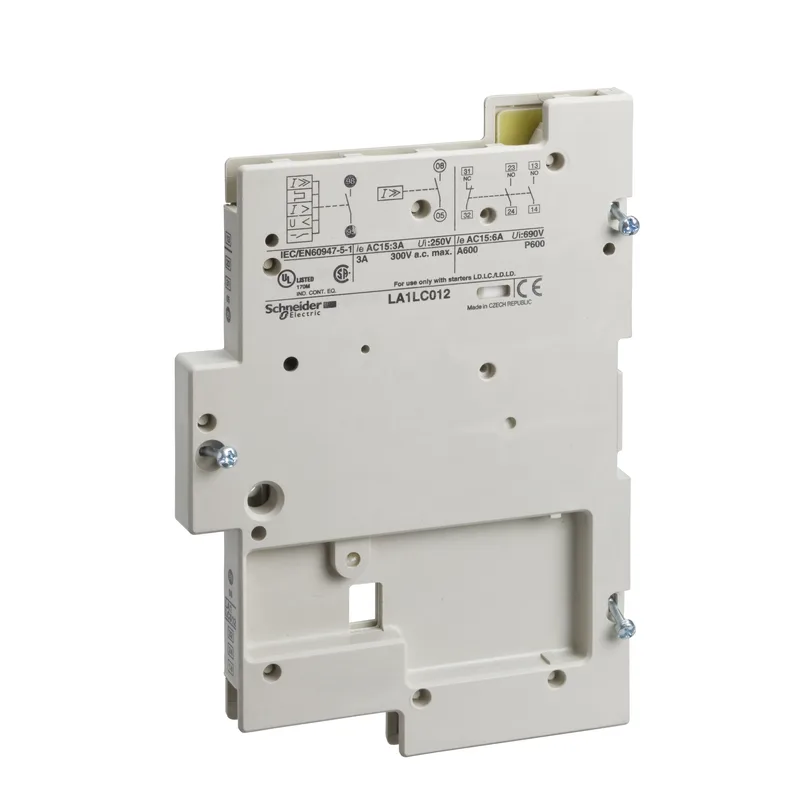

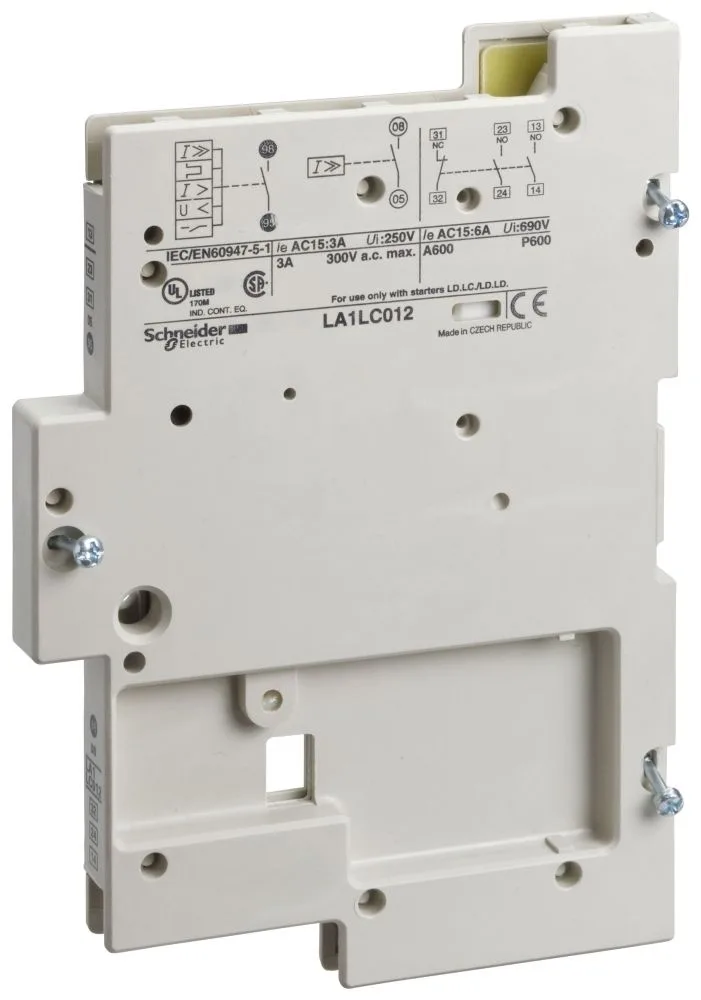

Schneider Electric TeSys LA1LC012 auxiliary contact, obsolete, 2 NO + 1 NC, rated insulation voltage 690 V, conventional free-air thermal current 6 A.
| Parameter | Value |
|---|---|
| Product or component type | Auxiliary contact |
| Voltage | 690 V |
| [Ith] conventional free air thermal current | 6 A |
| Pole contact composition | 2 NO + 1 NC contactor state 1 NO tripped 1 NO tripped on short-circuit |
| Mounting location | Right side |
| Connections - terminals | screw clamp terminals 2 0.002 in² (1.5 mm²) screw clamp terminals 1 0.004 in² (2.5 mm²) |
| Range | TeSys |
| Category | US10I1122384 |
| Device short name | LA1LC |
| Auxiliary contacts operation | Instantaneous |
| Environmental characteristic | Standard environment |
Per the specification, the LA1LC012 is an instantaneous auxiliary contact from the TeSys range, intended for right-side mounting on compatible contactors. Contact composition is 2 normally-open plus 1 normally-closed in the contactor state, with additional independent NO contacts for tripped and short-circuit indication. Terminal connections are screw-clamp type, accepting 2 × 1.5 mm² and 1 × 2.5 mm² conductors.
