Schneider Electric LA1LC010
MPNLA1LC010
Obsolete

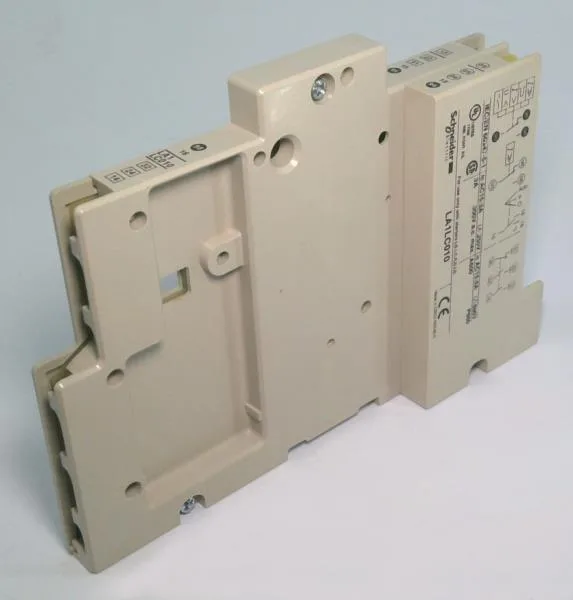

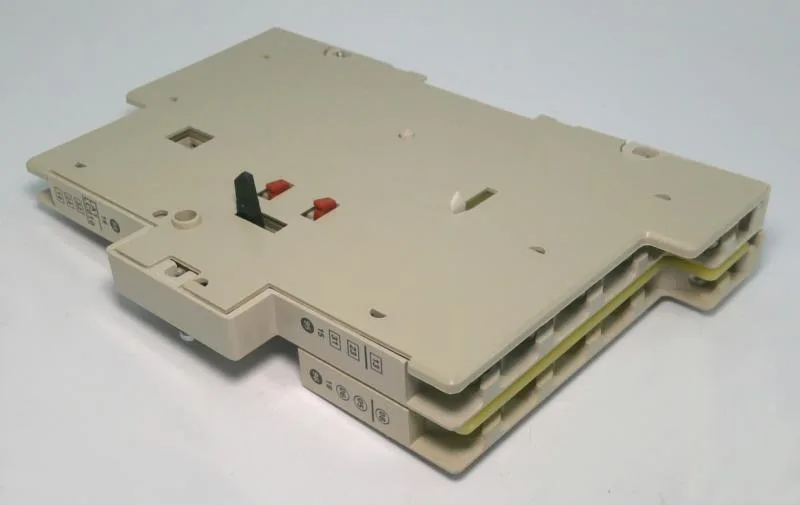

LA1LC010 - AUXILIARY CONTACT by SCHNEIDER ELECTRIC
$163.07Ref. price · indicative, final on quote
Sourced new & surplus through independent channelsAuthenticity-screened · ESD-safe packingListing updated Jul 2026
Specifications
| Parameter | Value |
|---|---|
| Product or component type | Auxiliary contact |
| Voltage | 690 V |
| [Ith] conventional free air thermal current | 6 A |
| Pole contact composition | 2 NO + 1 NC contactor state 1 C/O control knob in any position other than auto 1 C/O tripped 1 C/O tripped on short-circuit |
| Mounting location | Right side |
| Connections - terminals | screw clamp terminals 2 0.002 in² (1.5 mm²) screw clamp terminals 1 0.004 in² (2.5 mm²) |
| Range | TeSys |
| Category | US10I1122384 |
| Device short name | LA1LC |
| Auxiliary contacts operation | Instantaneous |
| Environmental characteristic | Standard environment |
MPN
LA1LC010
